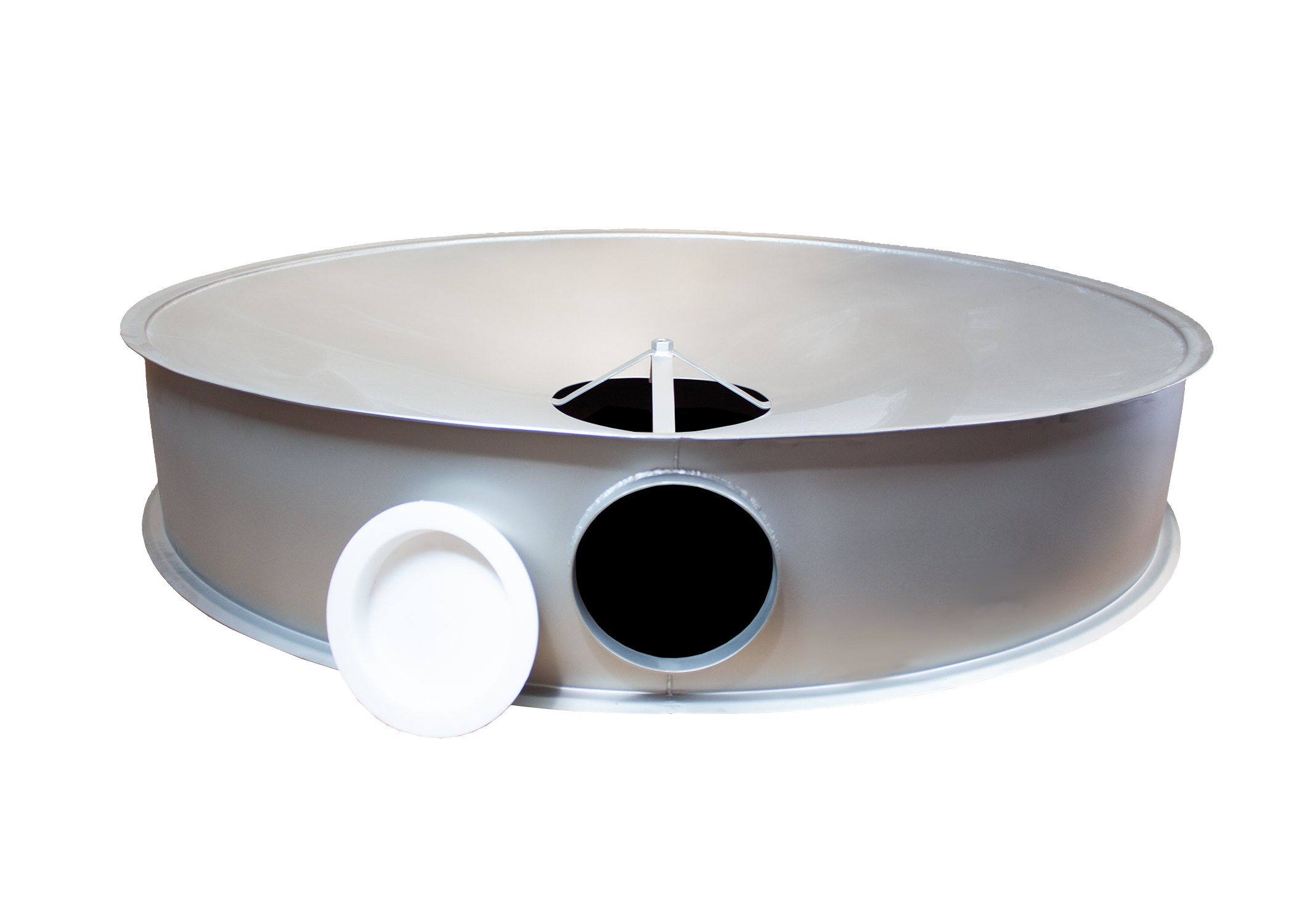

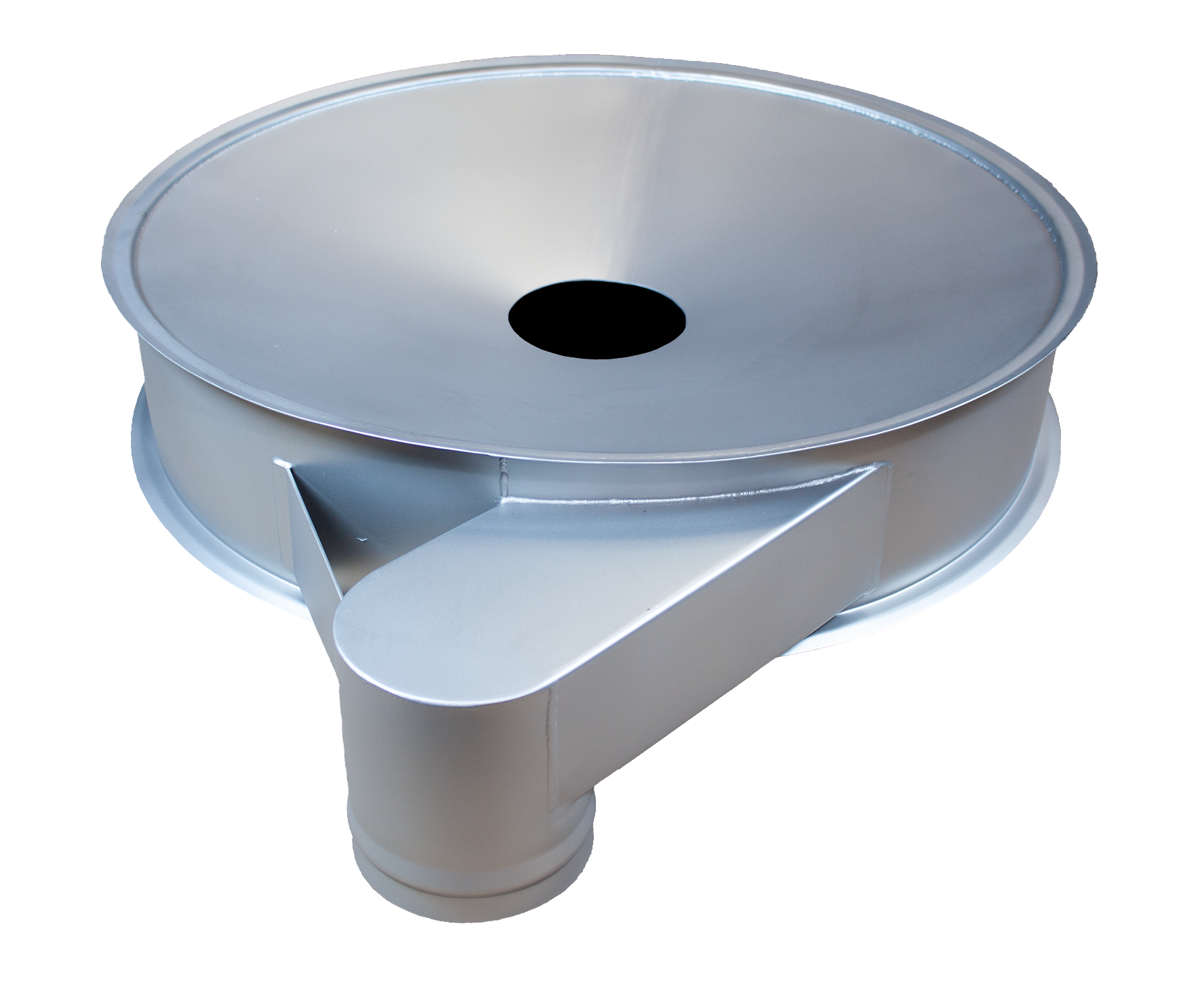

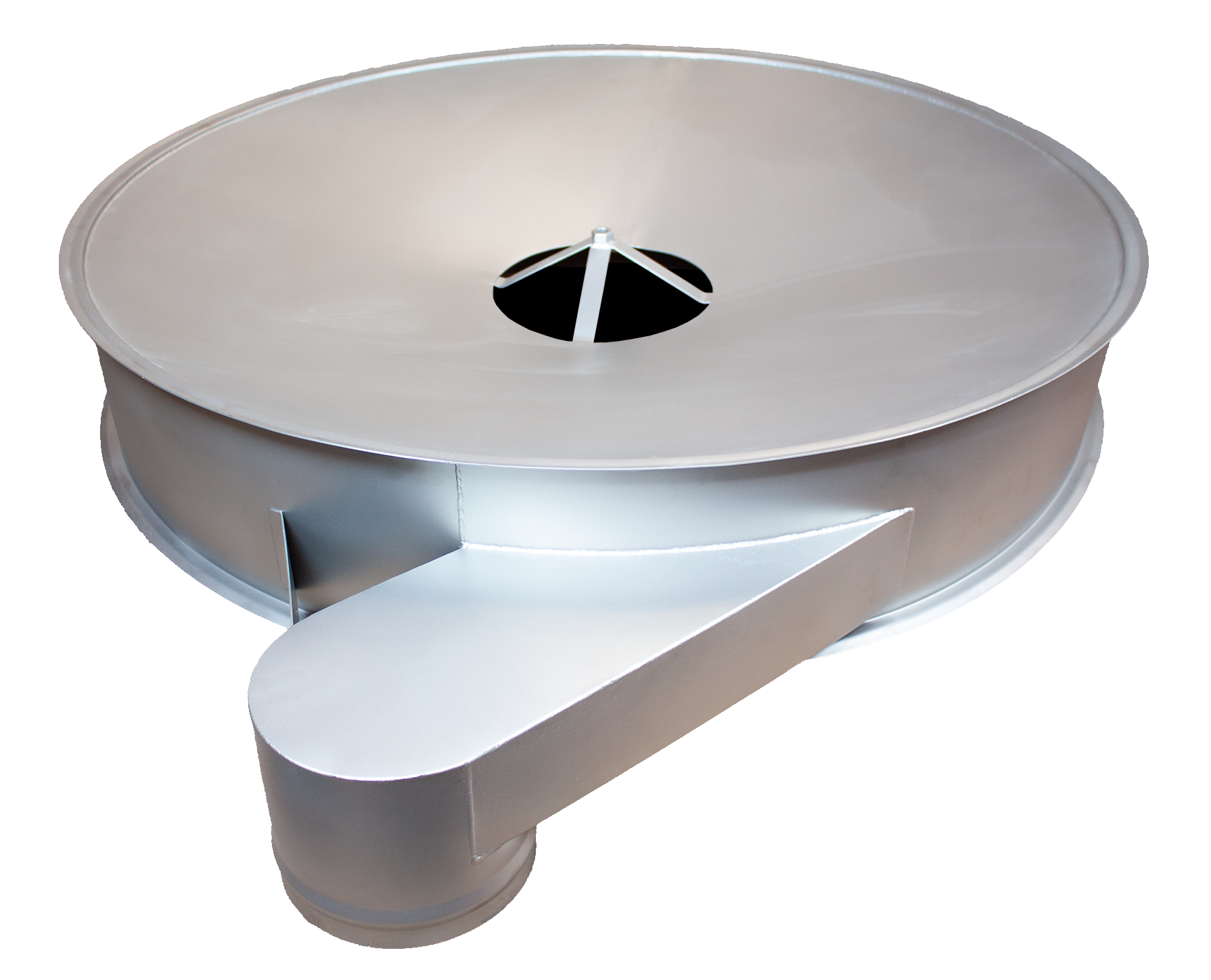

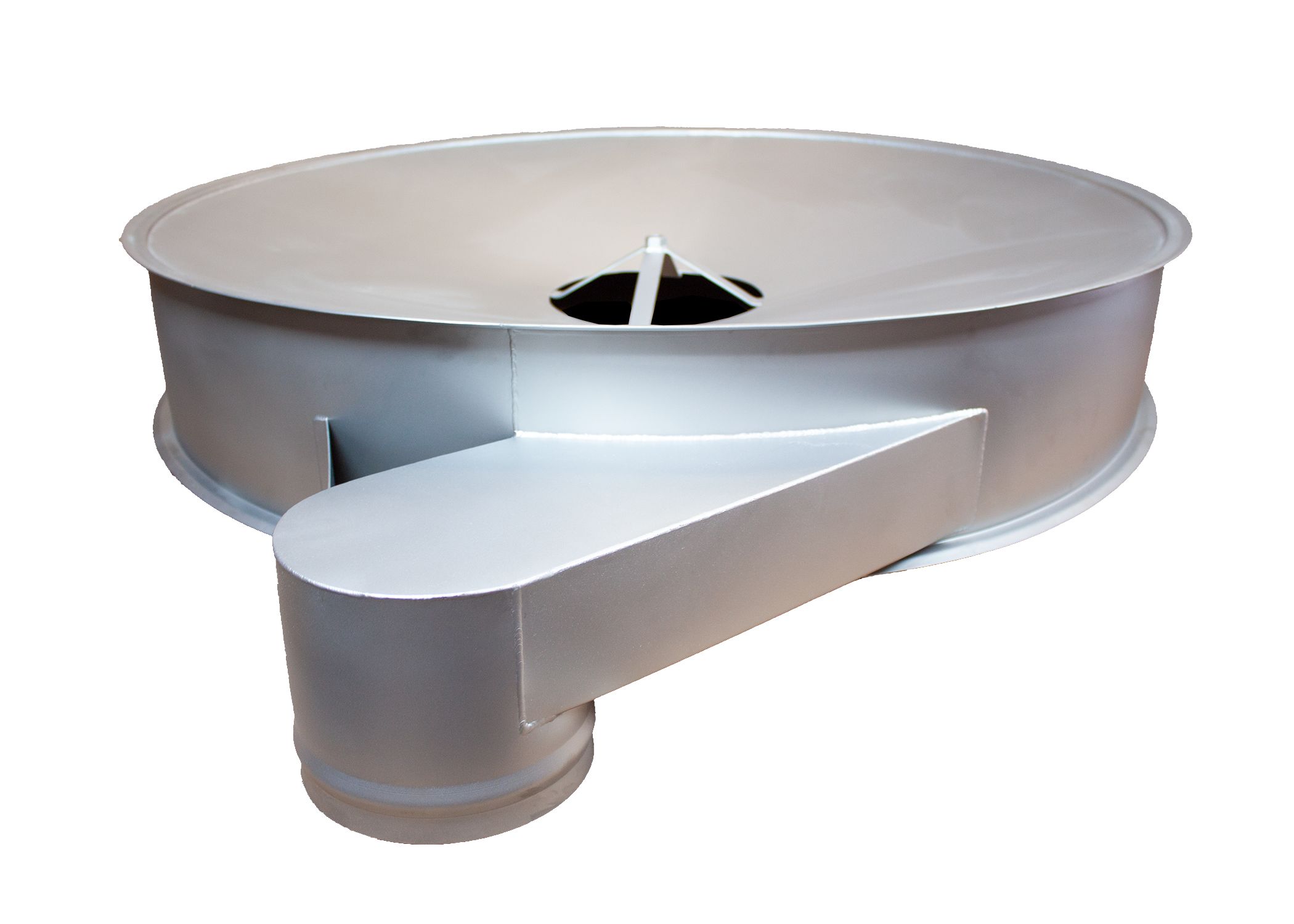

Enhance the performance of your vibratory screener with this stainless steel Distribution Frame, designed to manage material flow in multi-deck systems. Featuring a sloped inner flange, the frame redirects material from the upper screen to the center of the screen below—reducing overscreens and maximizing screening efficiency. Built from 304 stainless steel with a bead blast matte finish, it’s available in a range of sizes and configurations to meet your processing needs.

Distribution Frame vs. Blank or Standard Support Rings

  • Sloped design actively manages material flow
  • Helps reduce overscreens and improves screening efficiency
  •  Better coverage across mesh surface compared to passive spacer rings
  • Standard Sizes: Fits 18" | 24" | 30" | 48" | 60" vibratory screeners.
  • Custom Options: Contact us for availability and pricing on 40" frames or other custom configurations.

  • Lead Times: N/A.
  • Shipping Options: Parcel or freight shipping available based on frame size.
  • Expedited Shipping: Available upon request—contact us to prioritize your order.

  • Distributing material evenly in multi-deck screener setups
  • Reducing center buildup in food or powder processing applications
  • Managing resin, chemical, or mineral flow between screens
  • Optimized Material Flow: Features a sloped inner flange to redirect material back to the center of the screen below, enhancing multi-screen efficiency.
  • Includes Center Nut for Tie-Downs: Standard on 48" and 60" frames | Available on request for 18", 24", and 30" frames.
  • Durable Construction: Crafted from 304 stainless steel with a bead blast matte finish for corrosion resistance and longevity.
  • Customizable Options: Available with seamless welds, extended arm discharges, and extended discharge spouts.
  • Material: 304 stainless steel with bead blast matte finish.
  • Design: Includes a sloped inner flange and center nut for tie-downs (size-specific).

Q: What does a distribution frame do?
A:
It redirects material flow from the screen above to the center of the screen below, improving screen coverage and reducing material pileup.

Q: What sizes are available?
A:
Standard sizes include 18", 24", 30", 48", and 60". Custom configurations may be available upon request.

Q: Does this include a center nut for tie-downs?
A:
Yes, 48" and 60" frames include a center nut by default. It can be added to smaller sizes on request.

Q: What is the frame made of? 304 stainless steel with A: a bead blast matte finish for improved durability and corrosion resistance.
