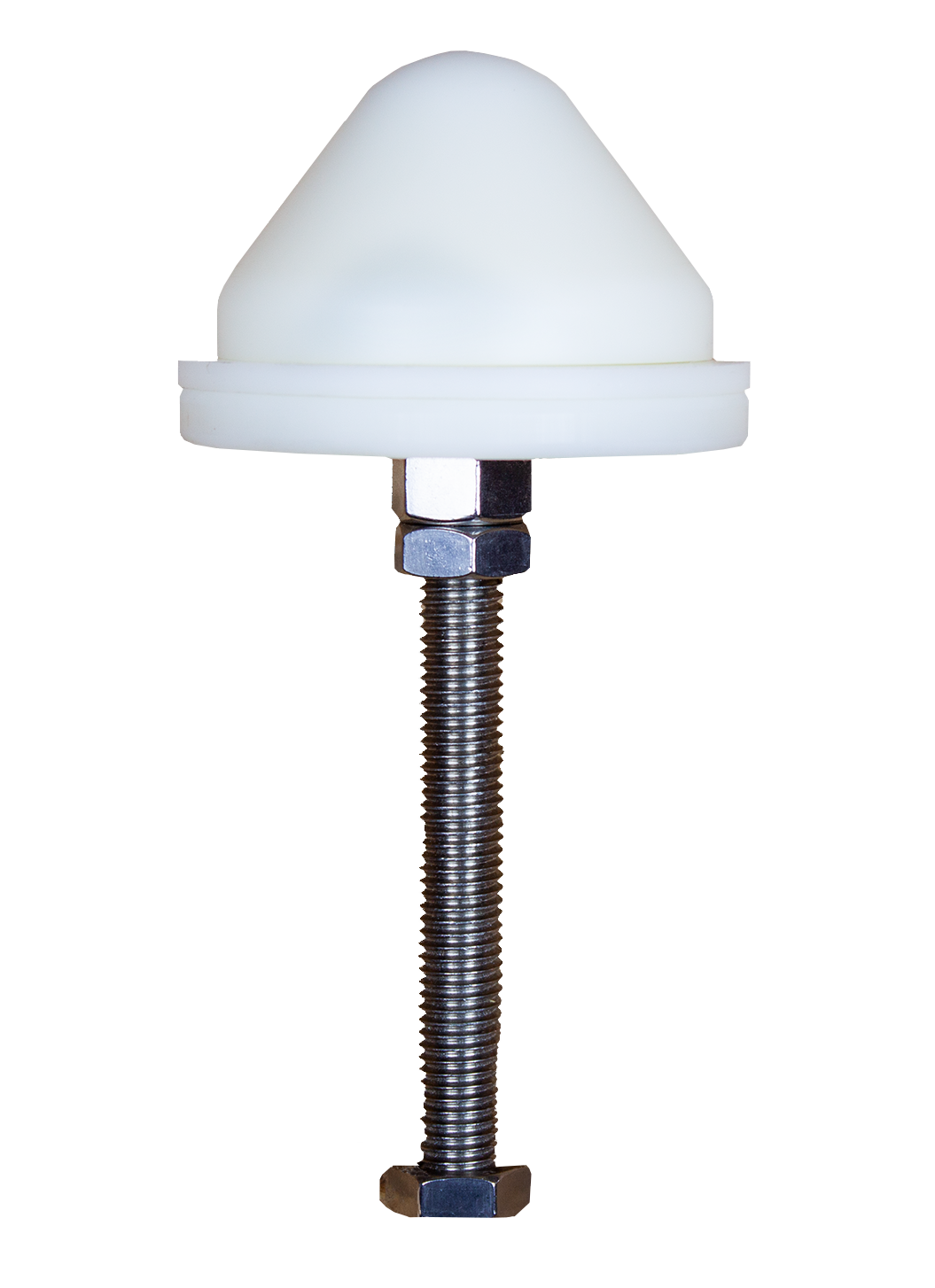

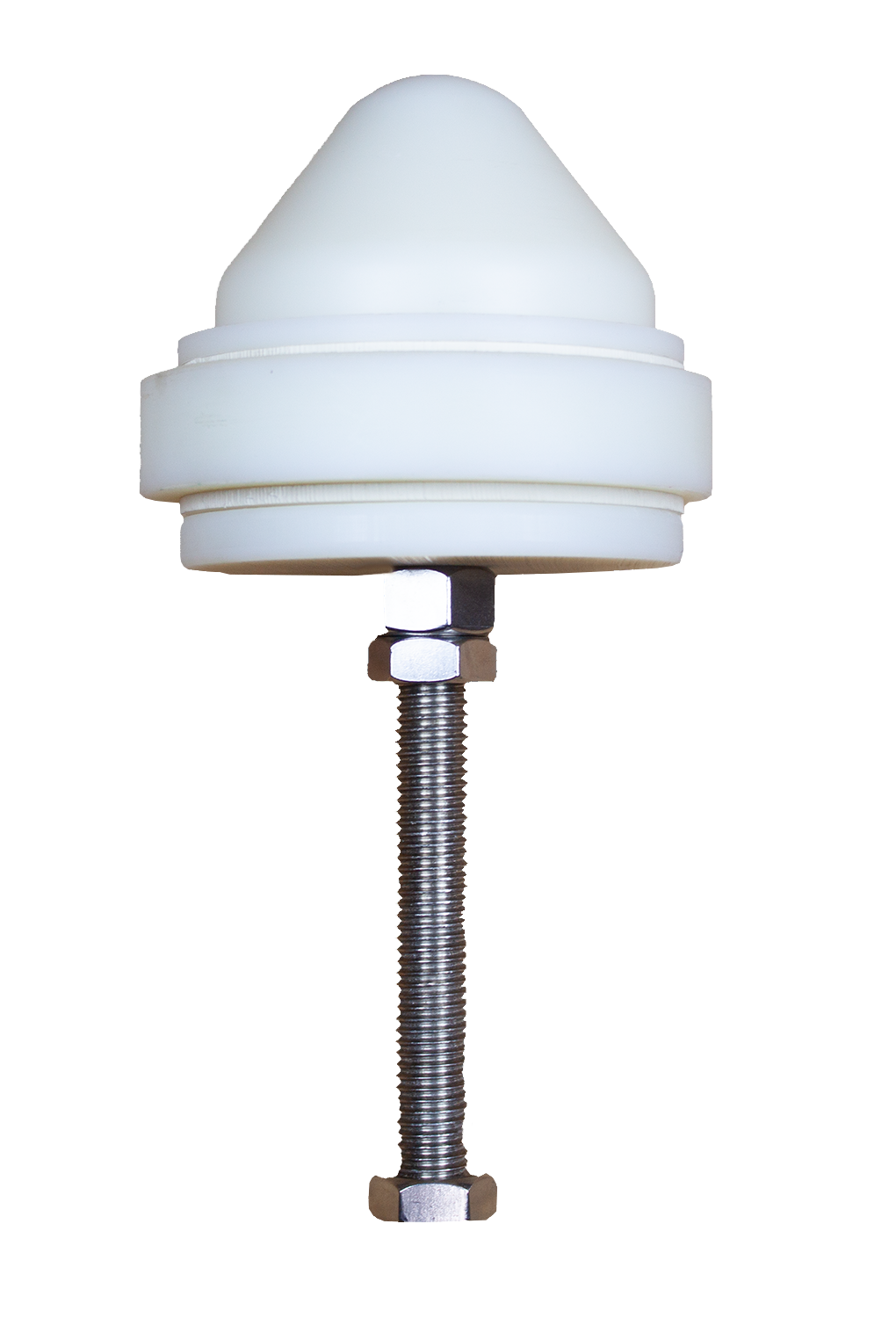

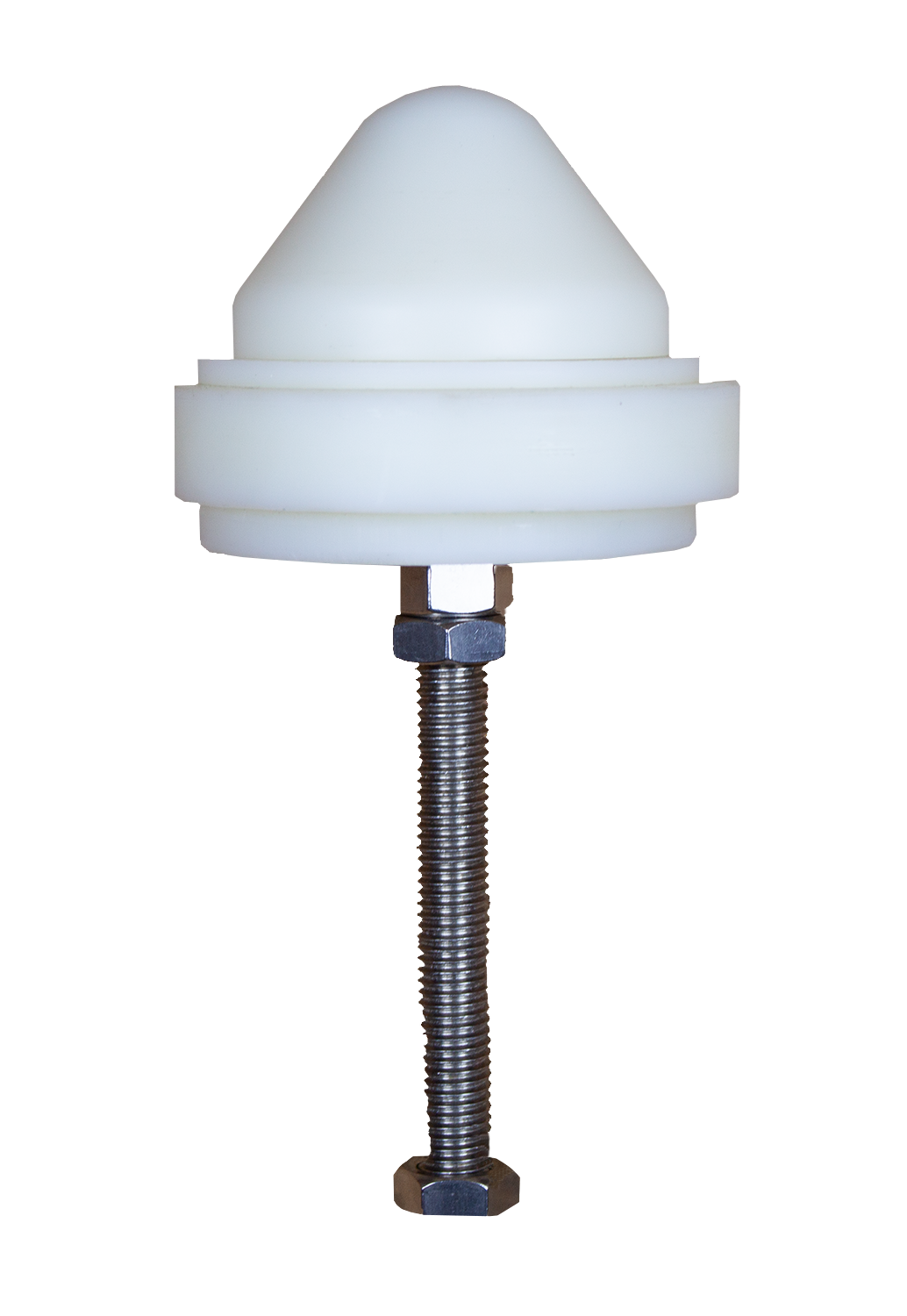

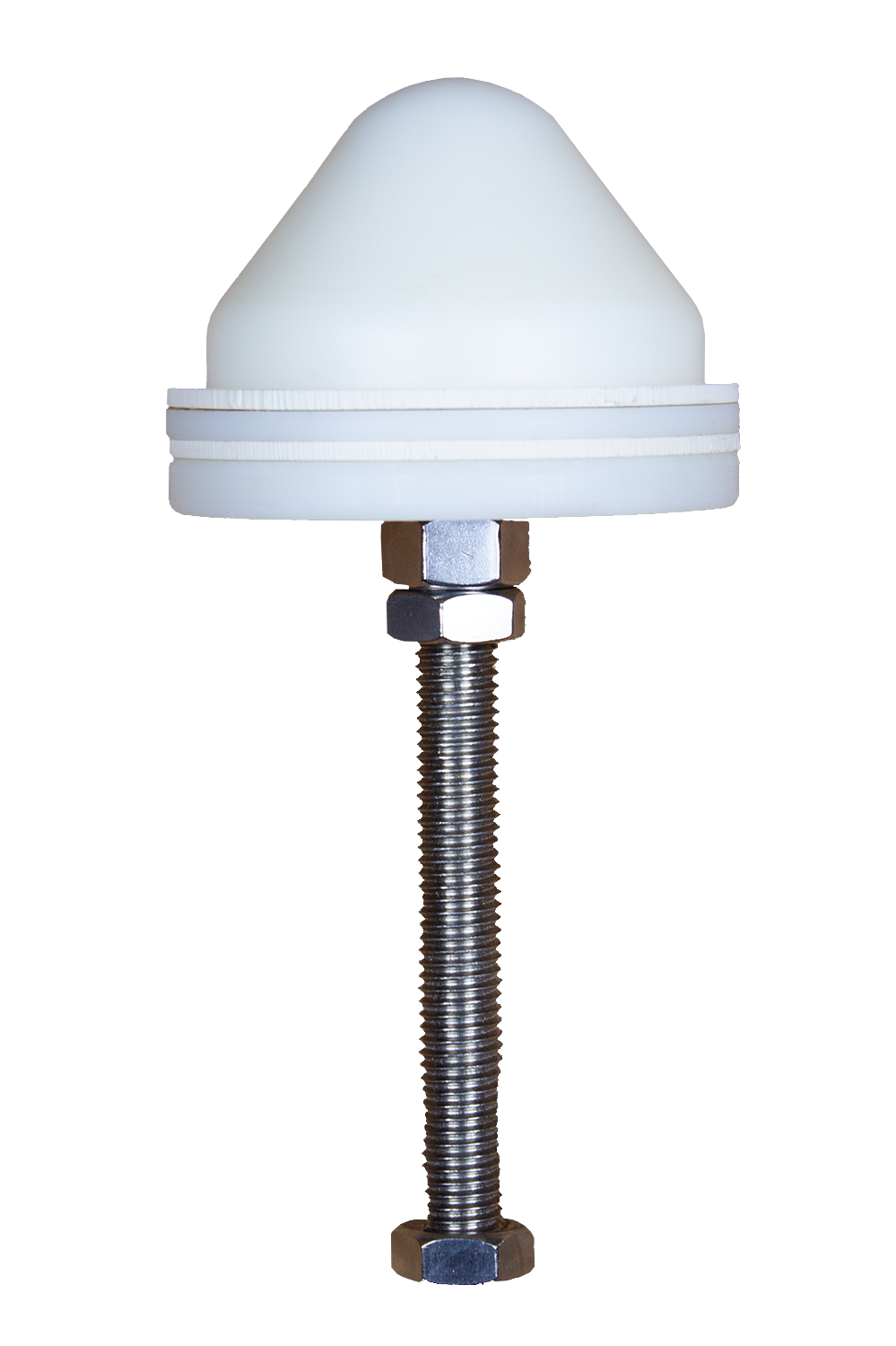

Maximize screen longevity and material separation efficiency with ScreenerKing’s Tool-Less Tie Down Assembly. This precision-machined component supports the center of your screen deck to reduce wear, prevent sagging, and enhance screening performance—without requiring tools for installation or removal. Designed for compatibility with most standard frame setups, this assembly features food-safe nylon and 304 stainless steel construction for safe, durable use in demanding applications.

Tool-Less Tie Down vs. Traditional Tie Down Assemblies

  • Safer for Mesh: Reduces puncture risk during install/removal
  • Faster Maintenance: No wrenches or torque tools required
  • More Even Material Distribution: Cone-shaped tip improves flow consistency
  • Designed for machines with 5/8" - 11 threaded nuts: Some machines may have 1/2" or 3/8" nuts; call for availability of those sizes.
  • Accommodates all frame designs: Multiple stainless steel all-thread post lengths available.

How to Determine All Thread Length

This is designed to work with machines that have 5/8" - 11 thread per inch nuts welded to the frame.  Note:  Some machines may have 1/2" or 3/8" nuts.  Please call for availability on those sizes.

How to measure your machine and select the appropriate all-thread stud length:

1. With the screen in place above the frame the screen will tie down to, measure the distance between the welded center nut to the top of the screen surface

2. Add 2" to the measurement taken in step 1 and this is the maximum length of the all-thread stud you should select.  Select a stud size at or below this measurement.

Example:  In the picture shown, the length between the welded nut on the frame and the top of the screen surface is 3", so the maximum length of all-thread to select is 5".

  • Lead Times: Parts are stocked and available to ship within 1 business day.
  • Pricing: Based on selected options.
  • Expedited Shipping: Available upon request—contact us to prioritize your order.

  • Routine Screen Replacement: Prevents over-tightening and simplifies center support during reassembly.
  • High-Throughput Applications: Ensures consistent material flow and mesh tension in continuous-use operations.
  • Sanitary Environments: Ideal for food, pharma, and chemical screeners requiring non-contaminating components.
  •  Retrofit Upgrades: A smart performance upgrade for systems using traditional tie-down bolts and tools.
  • Machined from food-safe Nylon: Ensures durability and reduces the risk of product contamination.
  • Hardware components are 304 stainless steel: For reliable, corrosion-resistant performance.
  • Extends screen life: Provides support to the middle of the screen, minimizing stress and wear.
  • Improves screening effectiveness: Enhances rigidity of the screen surface for better material separation.
  • Reduces risk of damage: Eliminates the need for tools that could harm screens during installation or removal.
  • Cone-shaped top: Improves material distribution across the screen surface for maximum efficiency.

  • Material: Food-safe Nylon and 304 stainless steel components.
  • Thread Compatibility: Standard 5/8" - 11 thread per inch nuts.

Q: What thread size does this tie down support?
A:
It is designed for 5/8"–11 threaded nuts. 1/2" and 3/8" thread versions may be available—please contact us to confirm.

Q: Does it require any tools to install?
A:
No tools are needed—this is a fully manual, tool-less installation.

Q: Is this compatible with all screen frame types?
A:
Yes. It is engineered to accommodate all common vibratory screen frame designs.

Q: What is the purpose of the cone-shaped top?

A: It helps evenly distribute material across the screen surface, reducing hotspots and boosting screening efficiency.
