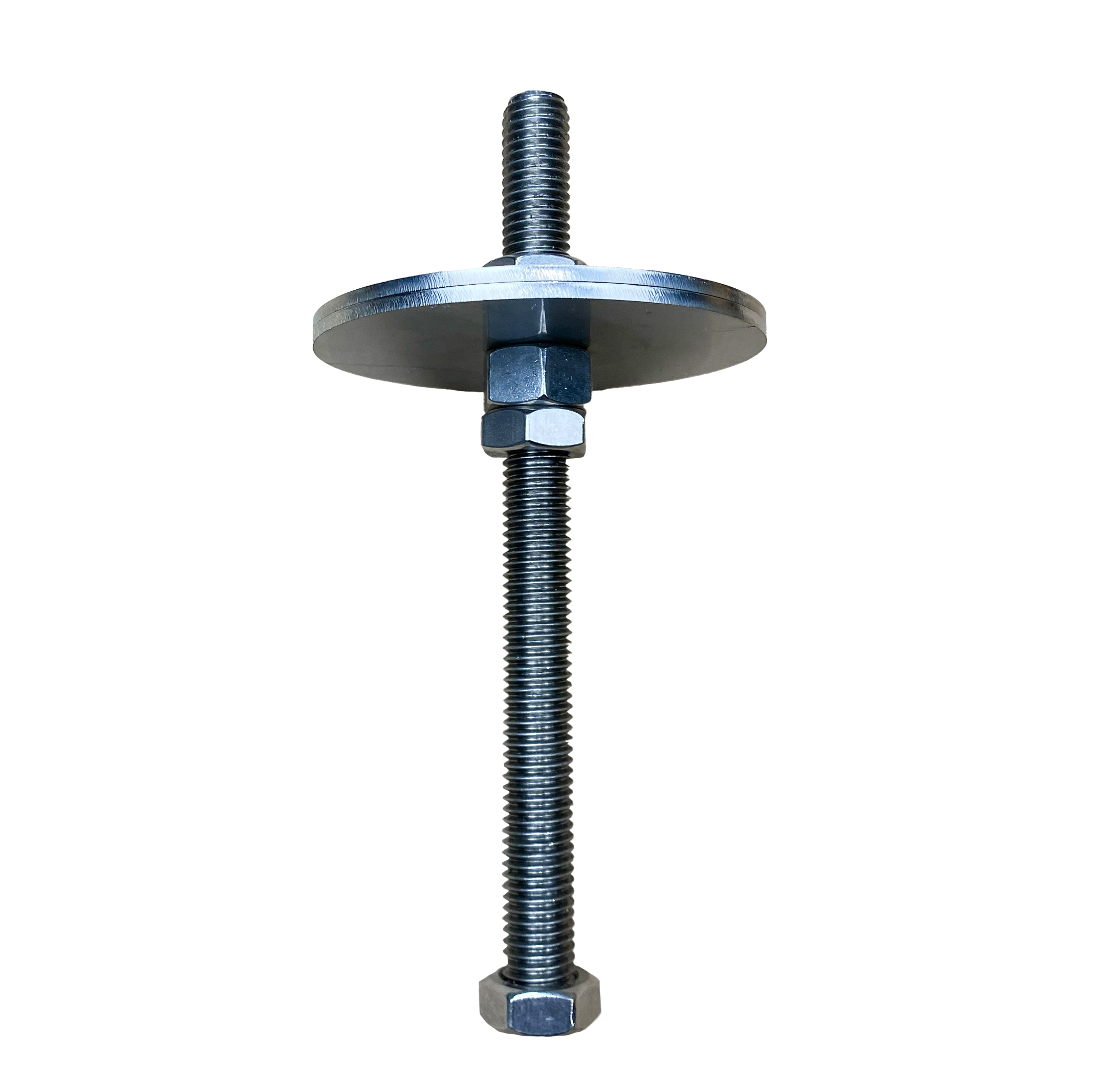

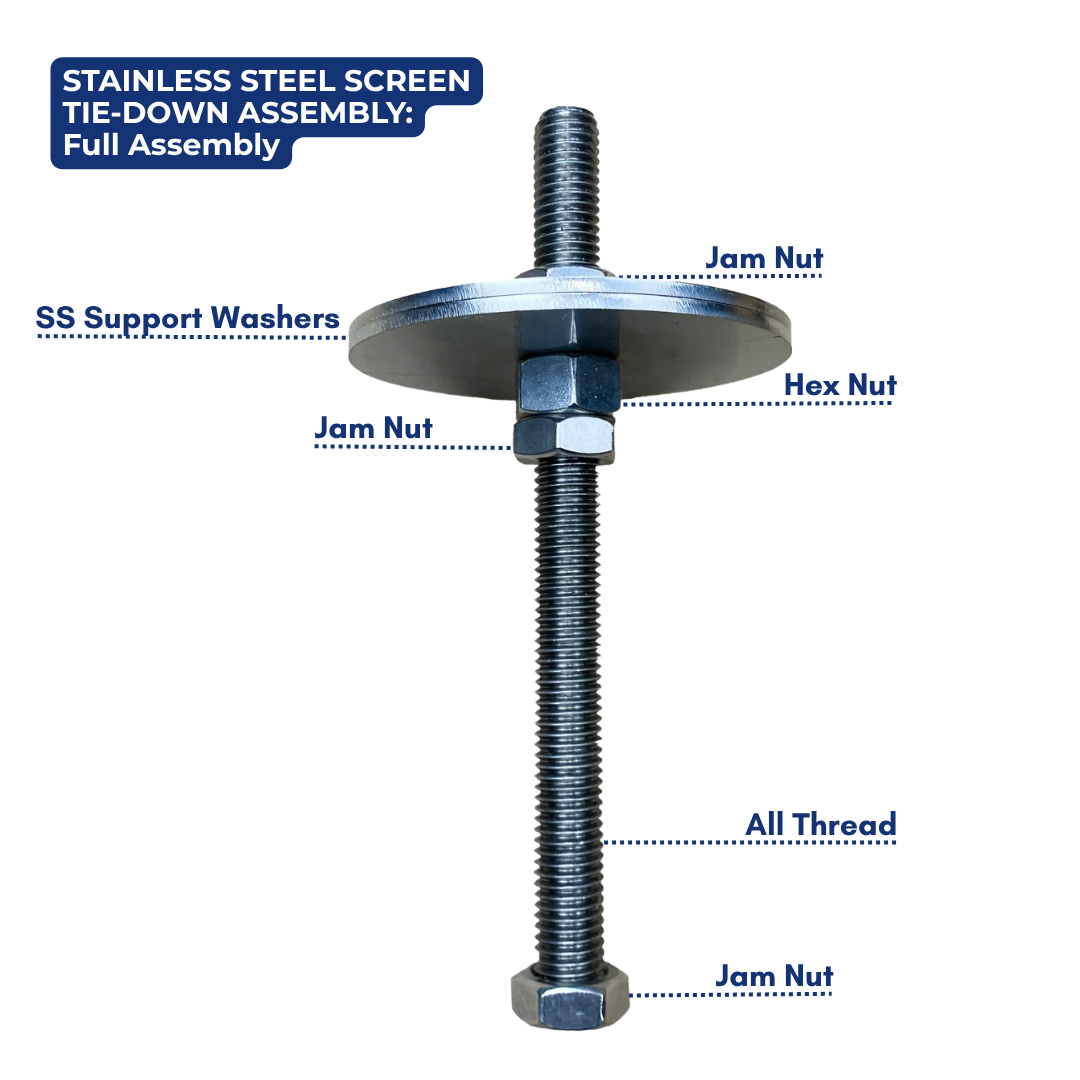

The ScreenerKing stainless steel screen tie down assembly is designed to provide a simple, wear-resistant way to support the middle of your screen to improve performance and life of the screen.
Benefits
- Extends the life of screens by providing support to the middle of the screen
- Can improve screening effectiveness by providing more rigidity to the screen surface
- Durable against abrasive materials
- Cleans easily
- Cost Efficient
Features
- All steel components are 304 stainless steel

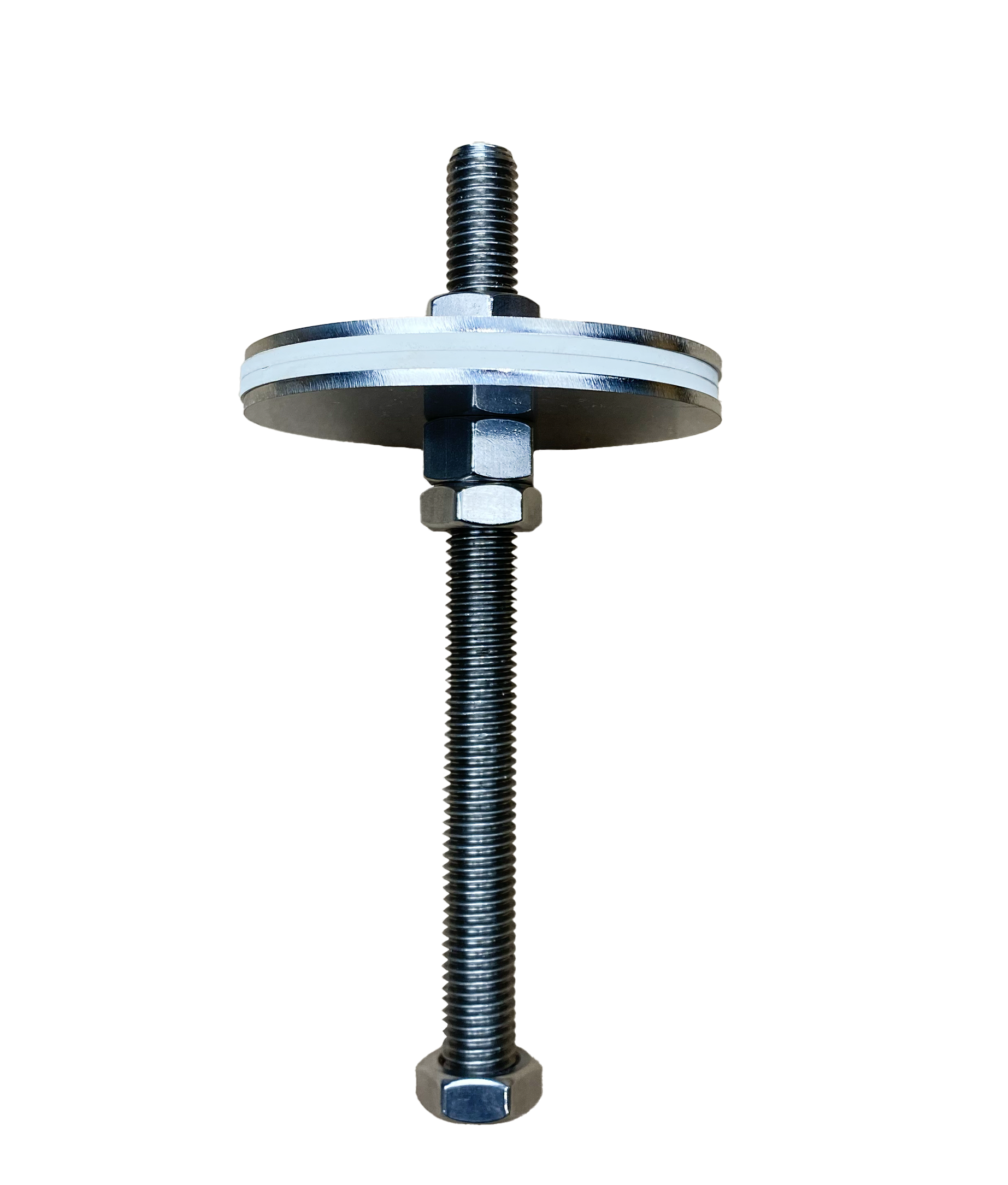

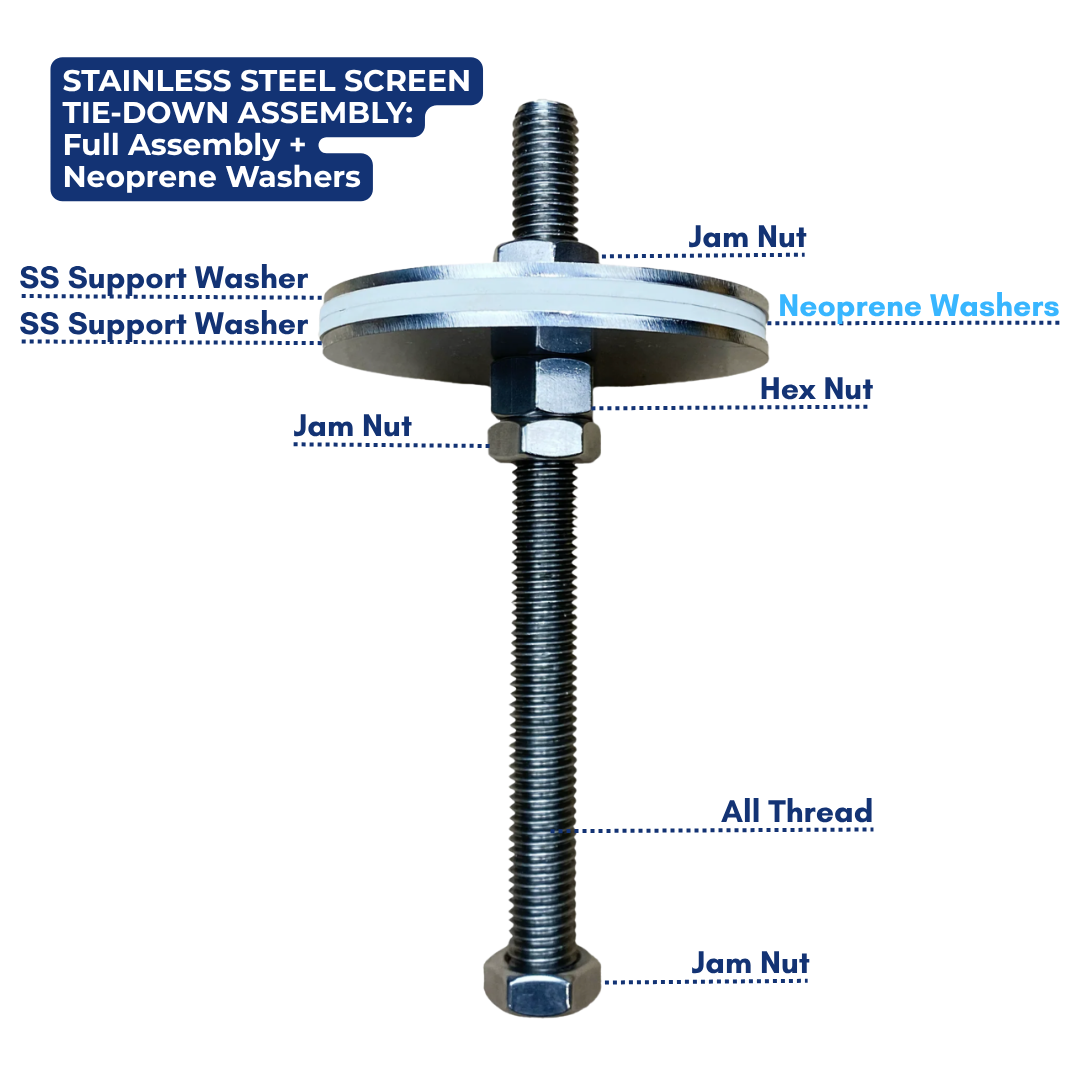

- Neoprene cushion washers available to reduce noise and provide water tight seal
Options

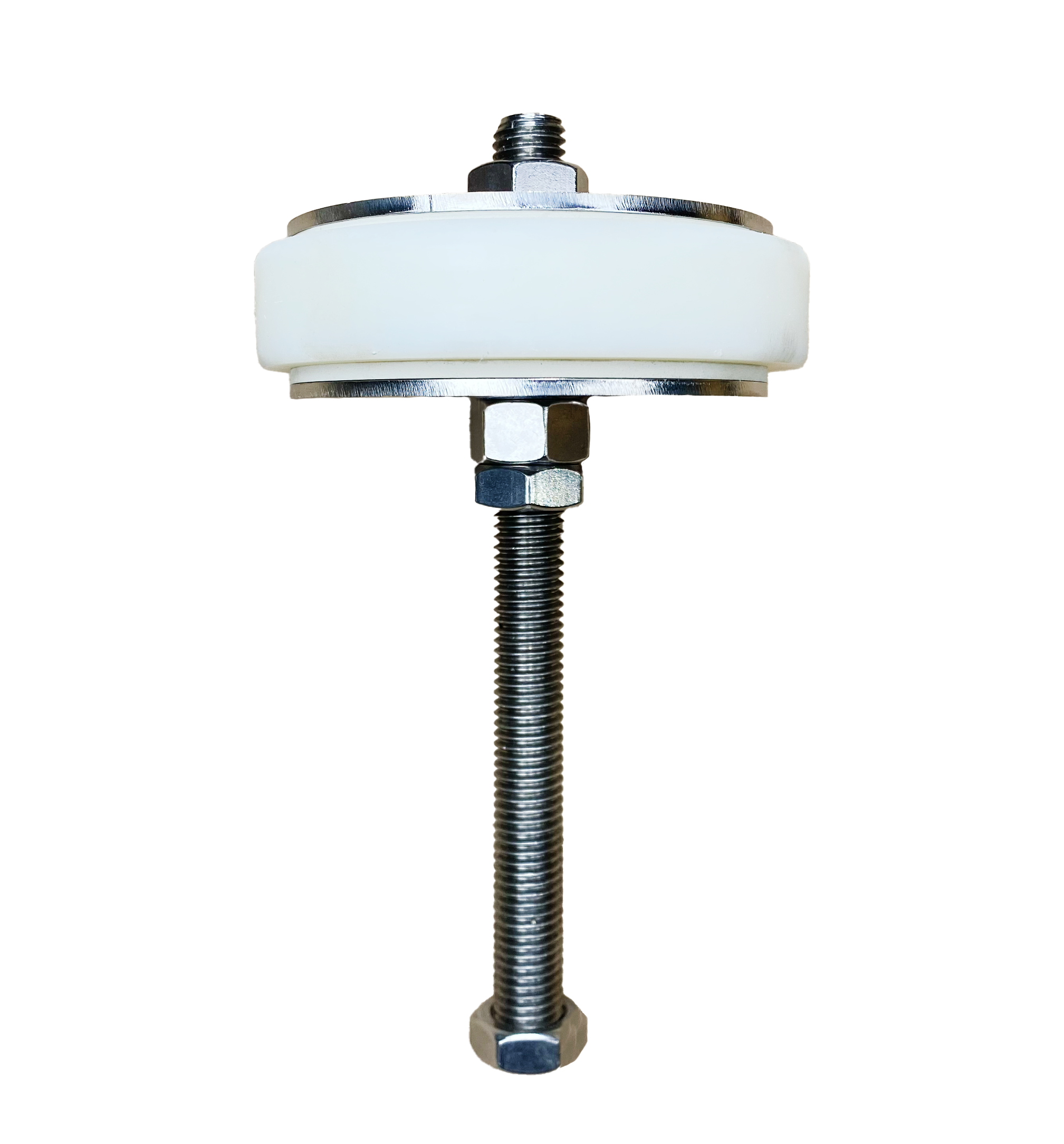

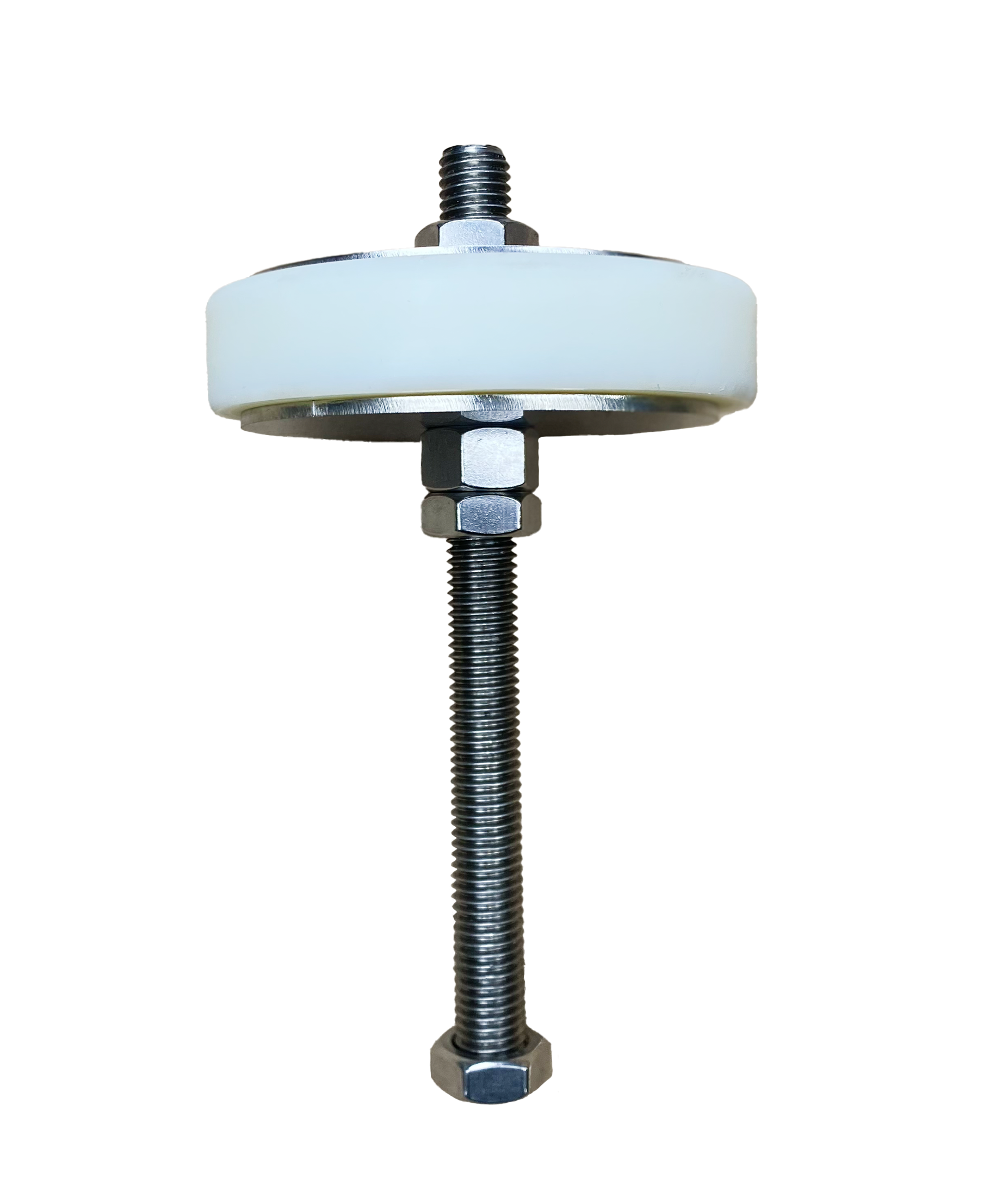

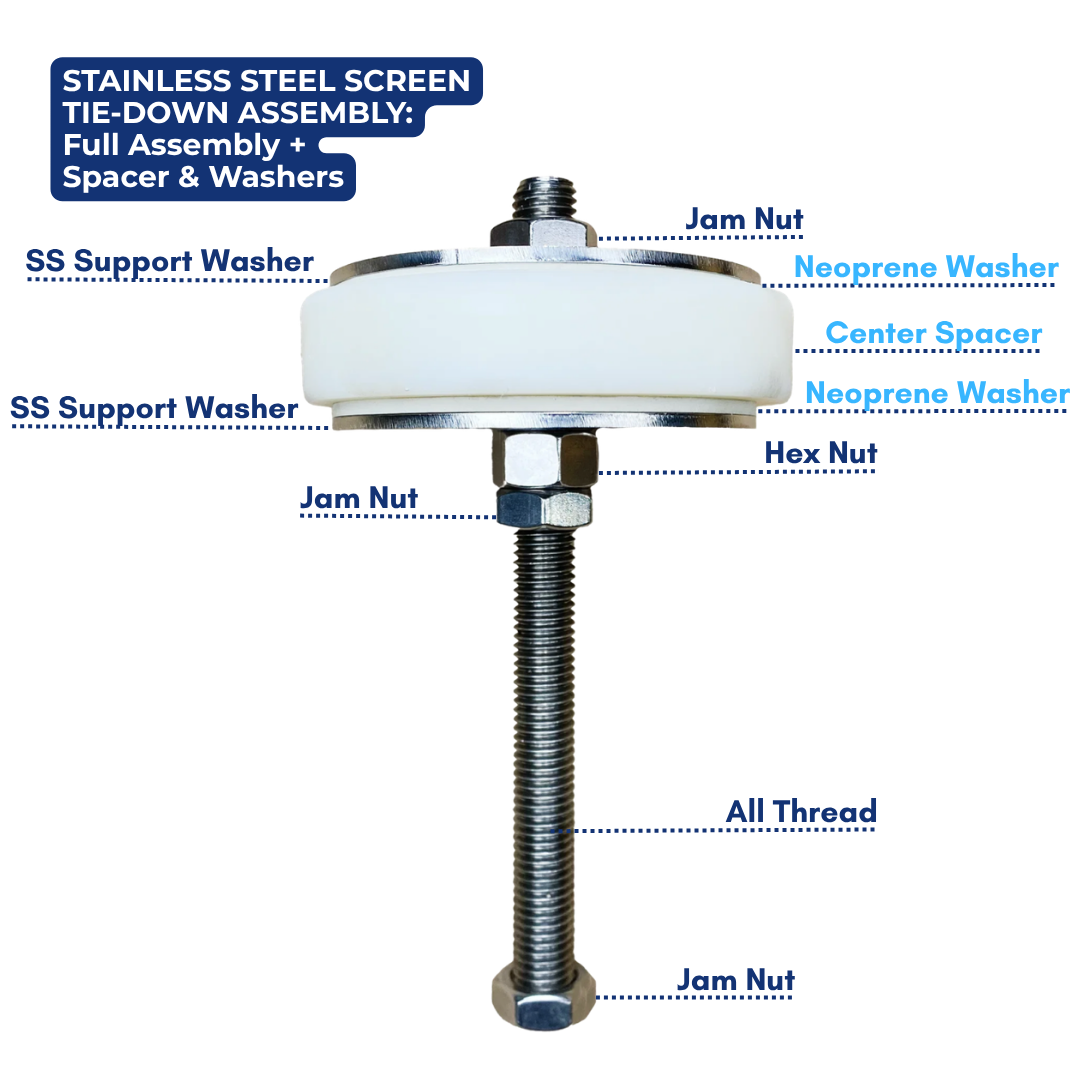

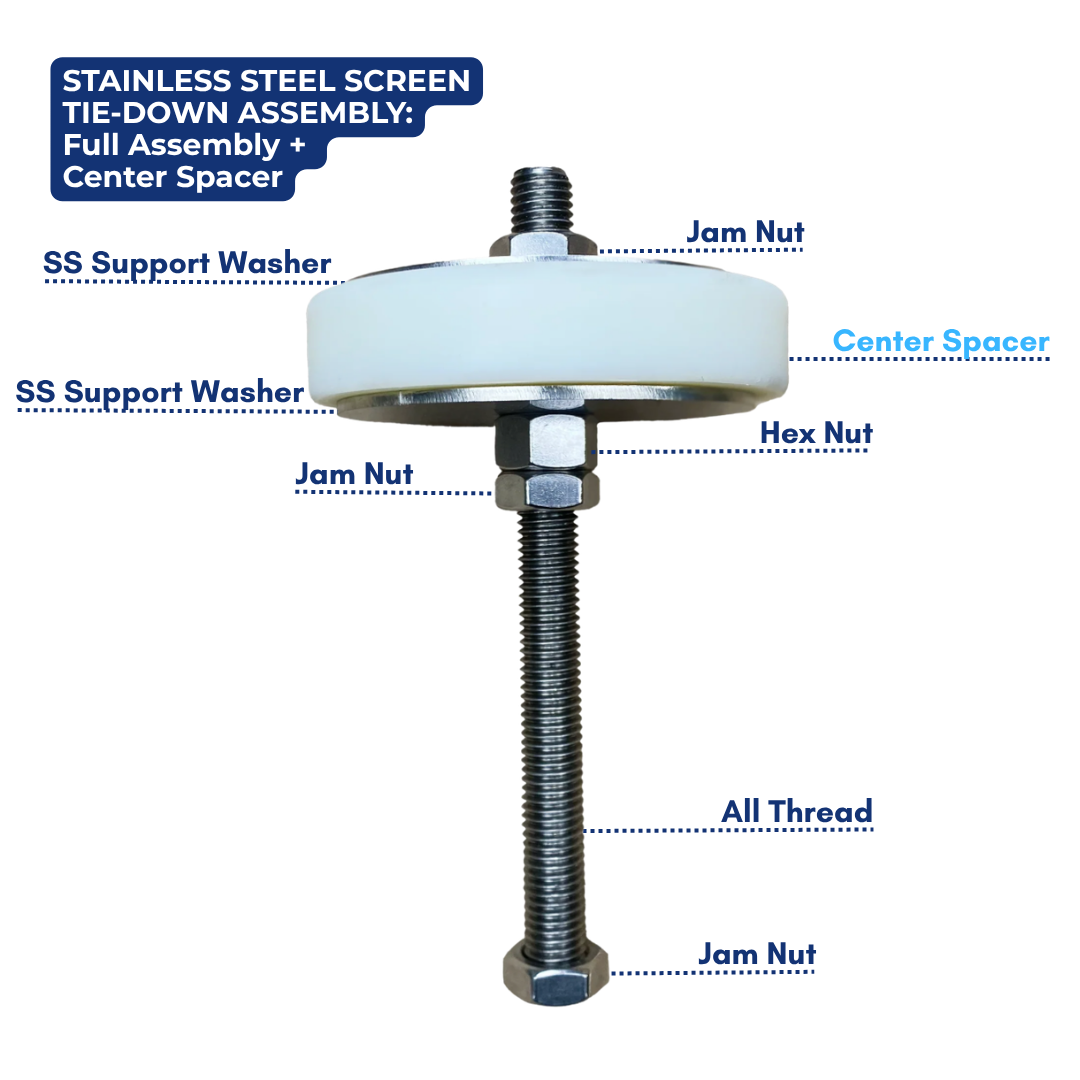

- Nylon center spacer available to maintain consistent spacing in perforated plate and slider clean ring assemblies
- Cushion gaskets available for liquid applications to achieve water-tight seal
- Multiple length stainless steel all-thread posts to accommodate all frame design
Pricing and Availability
- Pricing is based on options chosen
- Parts are stocked and available to ship within 1 business day of order
How to Determine All Thread Length
- This is designed to work with machines that have 5/8" - 11 thread per inch nuts welded to the frame. Note: Some machines may have 1/2" or 3/8" nuts. Please call for availability on those sizes.
How to measure your machine and select the appropriate all-thread stud length:
1. With the screen in place above the frame the screen will tie down to, measure the distance between the welded center nut to the top of the screen surface
2. Add at least 1" of length to ensure sufficient room to secure stainless steel nut. If room allows the center stud can be as long as desired for other possible applications or preferences
