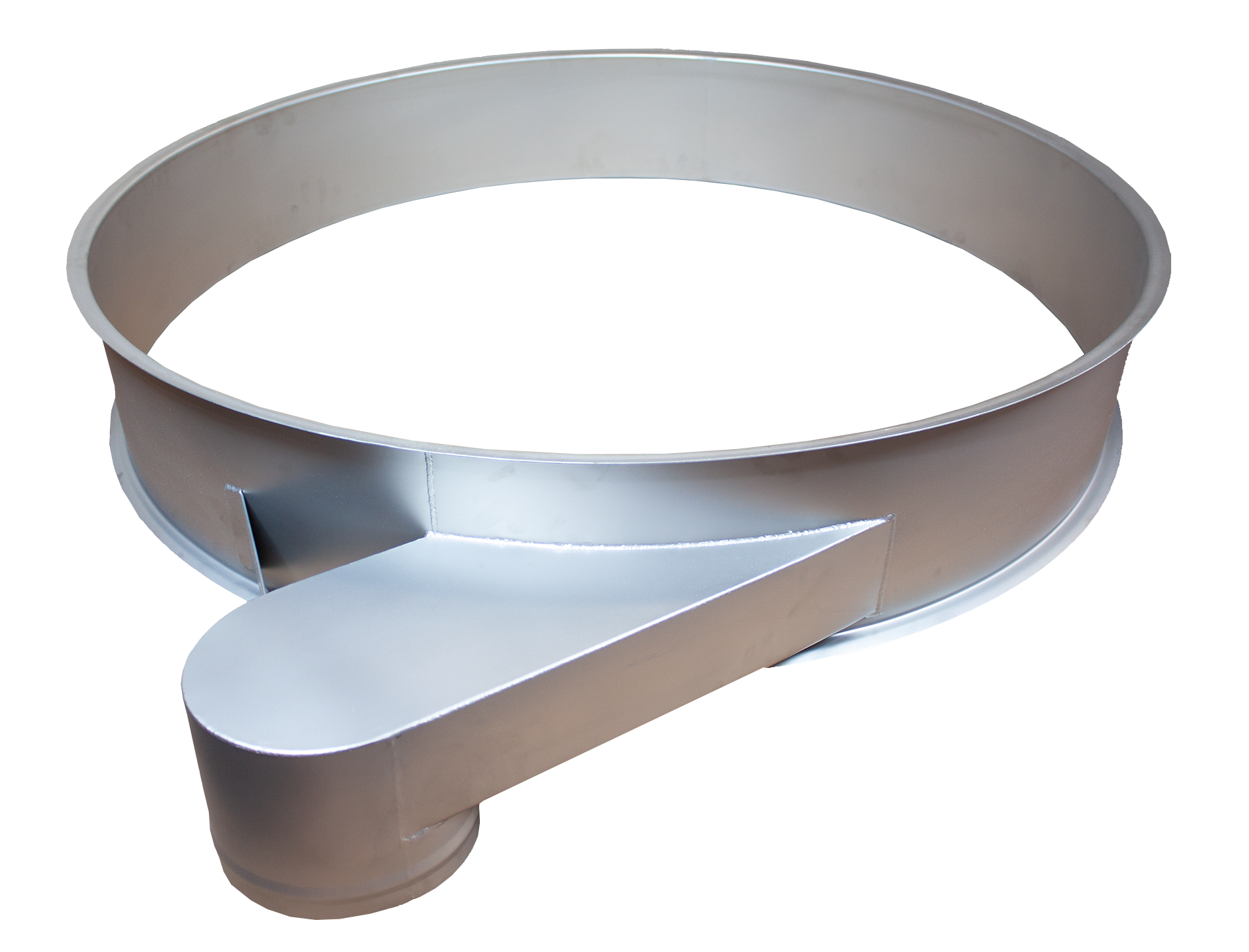

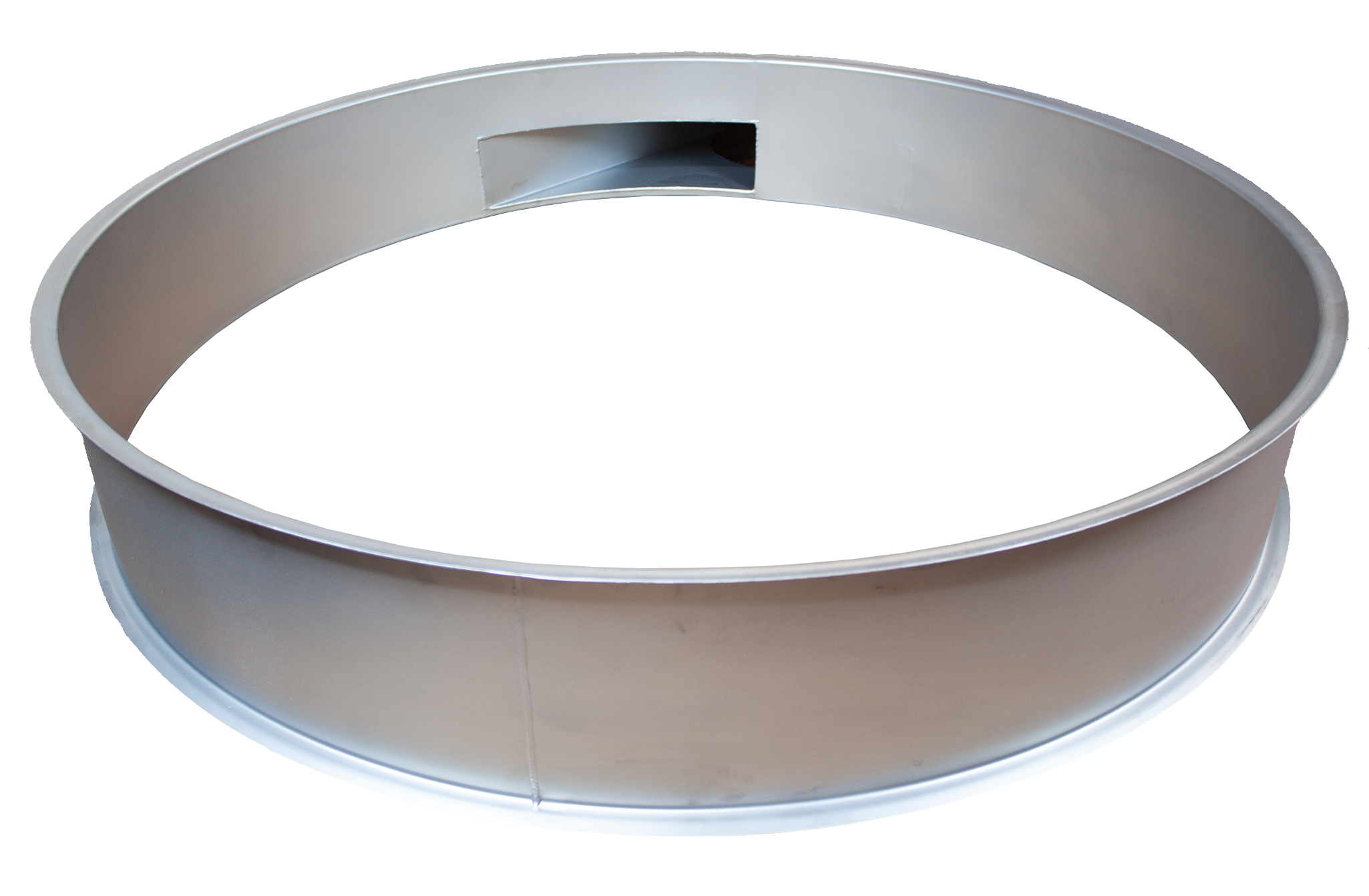

Optimize your vibratory screening process with our stainless steel Spacing Frames. Designed to gather and outfeed material that does not pass through the top screen, these solid rings improve efficiency in single- or multi-deck screener setups. Each frame is built to withstand industrial demands while supporting enhanced material handling and airflow across your stack configuration.

Spacing Frame vs. Screen Frame

  • No mesh: Built for spacing or top-deck outfeed, not material separation
  • Versatile utility in stack height adjustment or airflow enhancement
  • Lower-maintenance option with fewer changeouts
  • Custom Heights: 4" | 12" or custom dimensions to suit specific operational needs.
  • Material Options: 304 stainless steel standard | 316 stainless steel available on request.
  • Special Sizes: Contact us for availability and pricing on 40" Spacing Frames.
  • Lead Times: N/A.
  • Shipping Options: Parcel or freight shipping available based on frame size.
  • Expedited Shipping: Available upon request—contact us to prioritize your order.

  • Top-deck collection and outfeed of oversize material
  • Intermediate spacing between screens in multi-deck setups
  • Creating vertical clearance for product flow or airflow in stacked screeners
  • Effective Material Handling: Collects and outfeeds material that does not pass through the top screen, improving efficiency.
  • Intermediate Frame Functionality: Supports multi-screen setups for materials requiring additional time on the screen.
  • Durable Construction: Made from 304 stainless steel for corrosion resistance and long-lasting performance.
  • Customizable Options: Available in heights ranging from 4" to 12" | Also available in 316 stainless steel for enhanced corrosion resistance.
  • Material: 304 stainless steel standard | 316 stainless steel optional.
  • Height Options: Customizable from 4" to 12".

Q: What does a spacing frame do?
A:
It creates vertical space or manages top-screen material in vibratory screener systems, especially in multi-deck applications.

Q: What materials are available?
A:
Standard construction is 304 stainless steel. 316 stainless steel is available upon request for enhanced corrosion resistance.

Q: Can I order a custom height?
A:
Yes. Height options range from 4" to 12", and custom sizing can be arranged.

Q: What sizes are compatible?

A: Spacing frames are available for common screener diameters. For 40" sizes or other special configurations, contact us directly.
