The 18" unit is a portable, economical low-volume screener ideal for both dry and wet separation processes and can be configured with as many as 2 screens to execute a 3-part separation or classification process. The screens for a 18" unit are available in all mesh sizes and typically do not require a center stud/tie down.
Standards Features Include:
- Powder coated mild steel base and table
- 1/6 HP 1800RPM motor with integrated counterweights, (3-phase 230/460V standard)
- Stainless steel 5" height stainless table frame with 3" diameter tangential discharge spout
- Stainless steel 5" height stainless spacing frame with 3" diameter tangential discharge spout
- Clamp rings and hardware
Optional Features Include
- 115V single phase motor (requires starting capacitor)
- Stainless steel base, table, and spring assembly

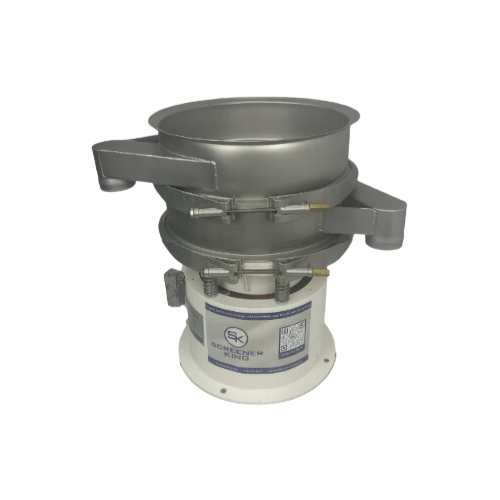

- Additional frames (decks) to increase from single screen to 2 screen setup (1 screen setup is pictured)
- Stainless steel, plexiglass, or fabric cover options
- Locking casters mounted to base for portability
