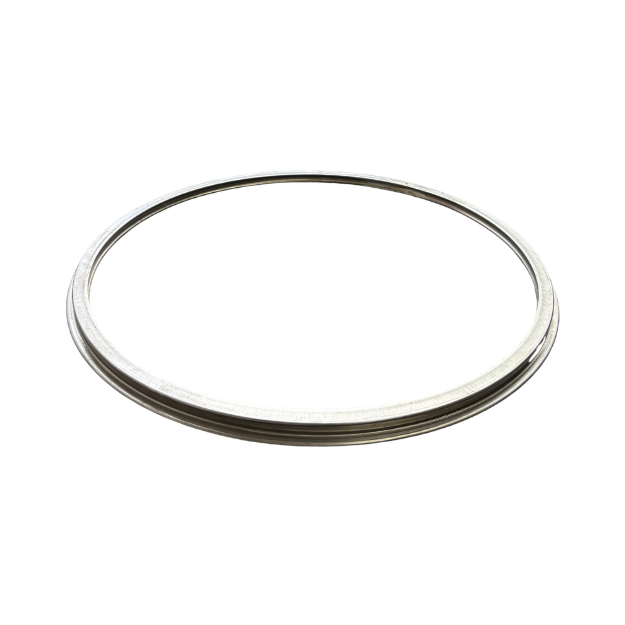

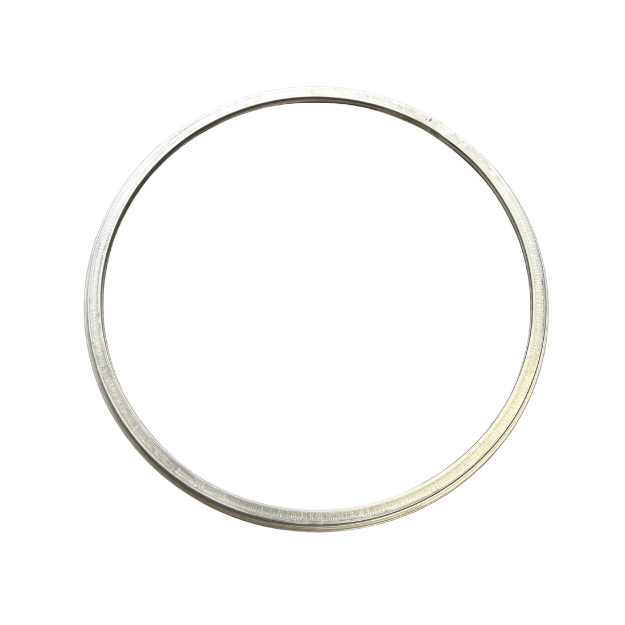

A blank screen ring gives you the frame without committing to a mesh spec. Built from the same hollow tube/ring construction as our standard replacement screens for round separators, it's the open frame customers use when they want to control what goes on it — whether that's their own mesh, a table frame setup, or a spare ring to support a multi-frame setup. Compatible with Sweco®, Kason®, Midwestern®, and Cleveland Vibratory® style round vibratory screeners.

Blank Ring vs. Ordering a Full Screen

• If you already have mesh, or plan to source and bond it yourself, paying for a factory-installed mesh you don't need adds cost without adding value.
• Running multiple frames in rotation? A blank ring lets you build out a second or third frame without waiting on a full custom screen order each time.
• Table-frame setups need a ring to secure with a gasket, not a bonded mesh disc — ordering the wrong part here means returning it and starting over.
• Allows customizability for use in your specific process

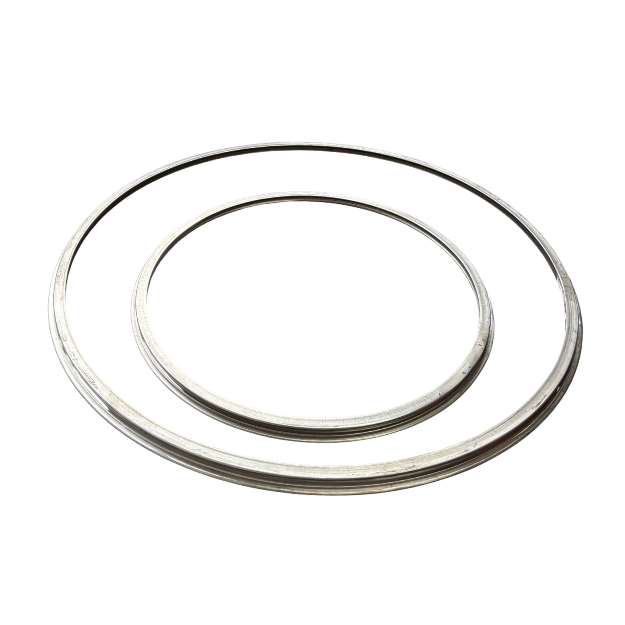

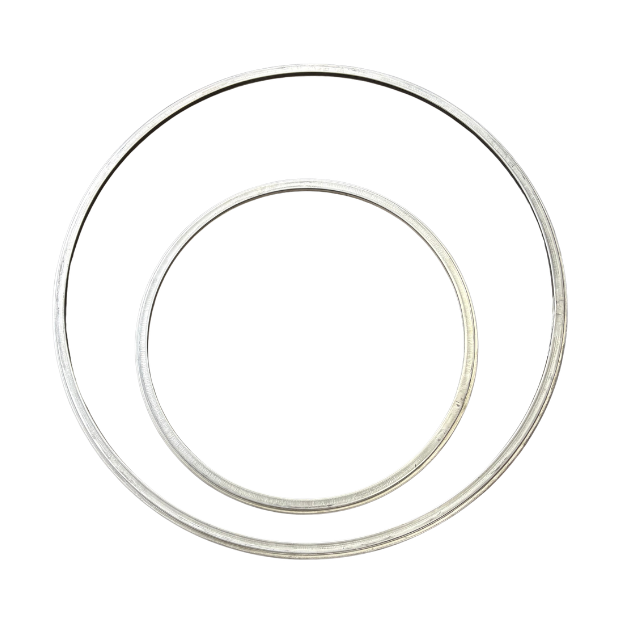

Sized to match standard round vibratory screener frames, 18" through 60". Works with table frame assemblies that clamp the ring in place with a gasket, and with setups where mesh is bonded to the ring after purchase. If you're not sure your frame diameter matches a standard size, send us your machine model or a measurement and we'll confirm fit before you order.

Built to order and typically shipped within 8-10 business days, sometimes sooner based on inventory.

Larger sizes may ship freight; smaller rings ship parcel. Expedited options available — contact us for a quote.

• Table frame setups that need a bare ring secured with a gasket, not a bonded mesh disc
• Running multiple frames in rotation and needing spare rings on hand
• Customers sourcing or bonding their own mesh to control the exact spec
• Rebuilding a damaged frame without paying for mesh that's being replaced anyway

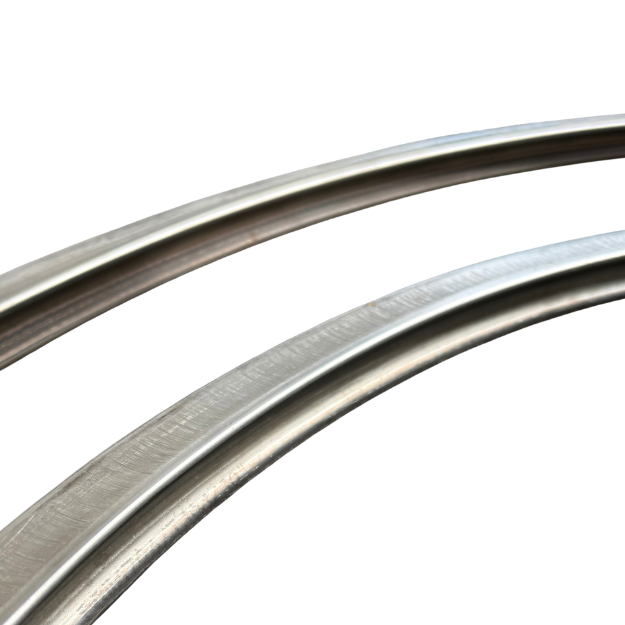

✓ Hollow Build: Hollow tube/ring construction preserves the lightweight performance profile of the original screen.

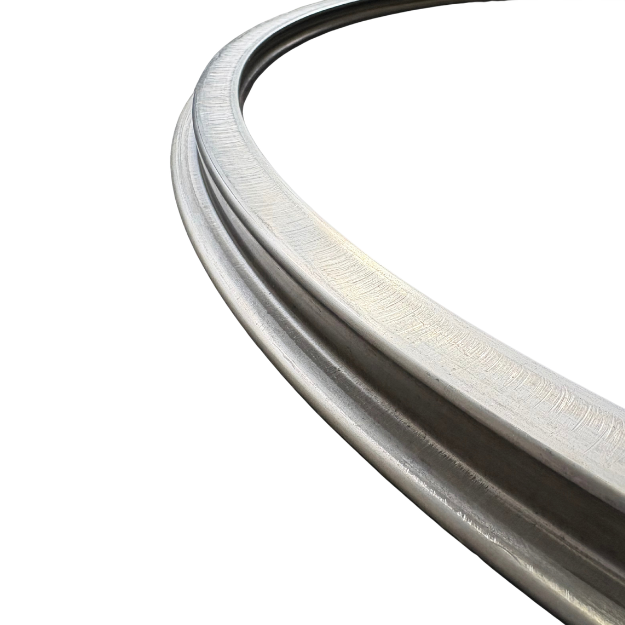

✓ Thin Lip Ring: Ring geometry provides the clean bonding surface required for precision re-tensioning and long-term reuse.

✓ High-Quality Stainless Steel: 316 stainless construction that hasn't been structurally compromised by corrosion, impact, or prior repairs.

• Type: Blank screen ring, no mesh installed
• Material: Stainless steel (304)
• Sizes: 18"–60", call for quote for 72"
• Sold as: Ring only — mesh, gasket, and hardware sold separately unless the gasket option is selected
• Fitment: Confirmed by our team — send your machine model or a measurement if you're unsure

Q: Does this come with mesh?
A: No — this is the bare ring only. If you need mesh installed, order our standard replacement screen instead.

Q: Do I need the gasket?
A: If your setup clamps the ring in place (like a table frame), yes. If you're bonding your own mesh directly to the ring, you likely don't need it — let us know your setup if you're not sure.

Q: What stainless grade is it?
A: Typically 304, matched to standard vibratory screener construction. If you need 316, call us so we can accommodate your needs.

Q: Can I get a custom size?
A: If your frame falls outside 18"–60" (like a 72"), contact us — we can often source or fabricate a custom fit.
