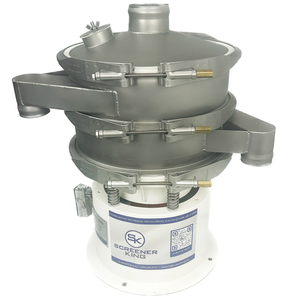

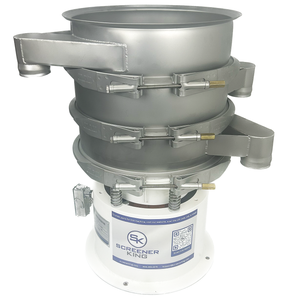

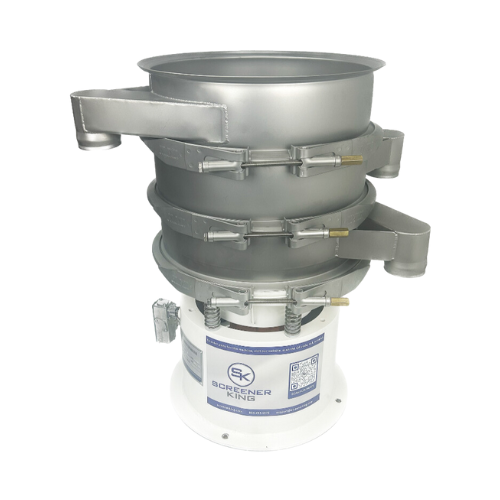

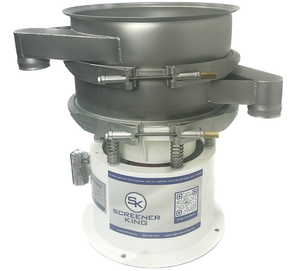

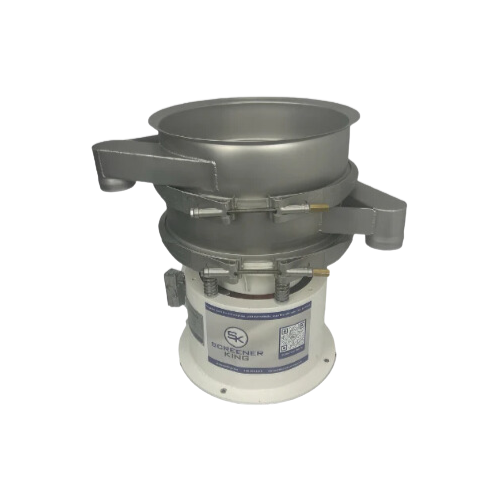

Complete 18 inch Screener Unit
Complete 18 inch Screener Unit
Complete 18 inch Screener Unit
Complete 18 inch Screener Unit

Complete 18 inch Screener Unit

Part No. SKCU18
Regular price
$6,995.00
Regular price
Sale price
$6,995.00
Unit price
per
Availability
Out of stock

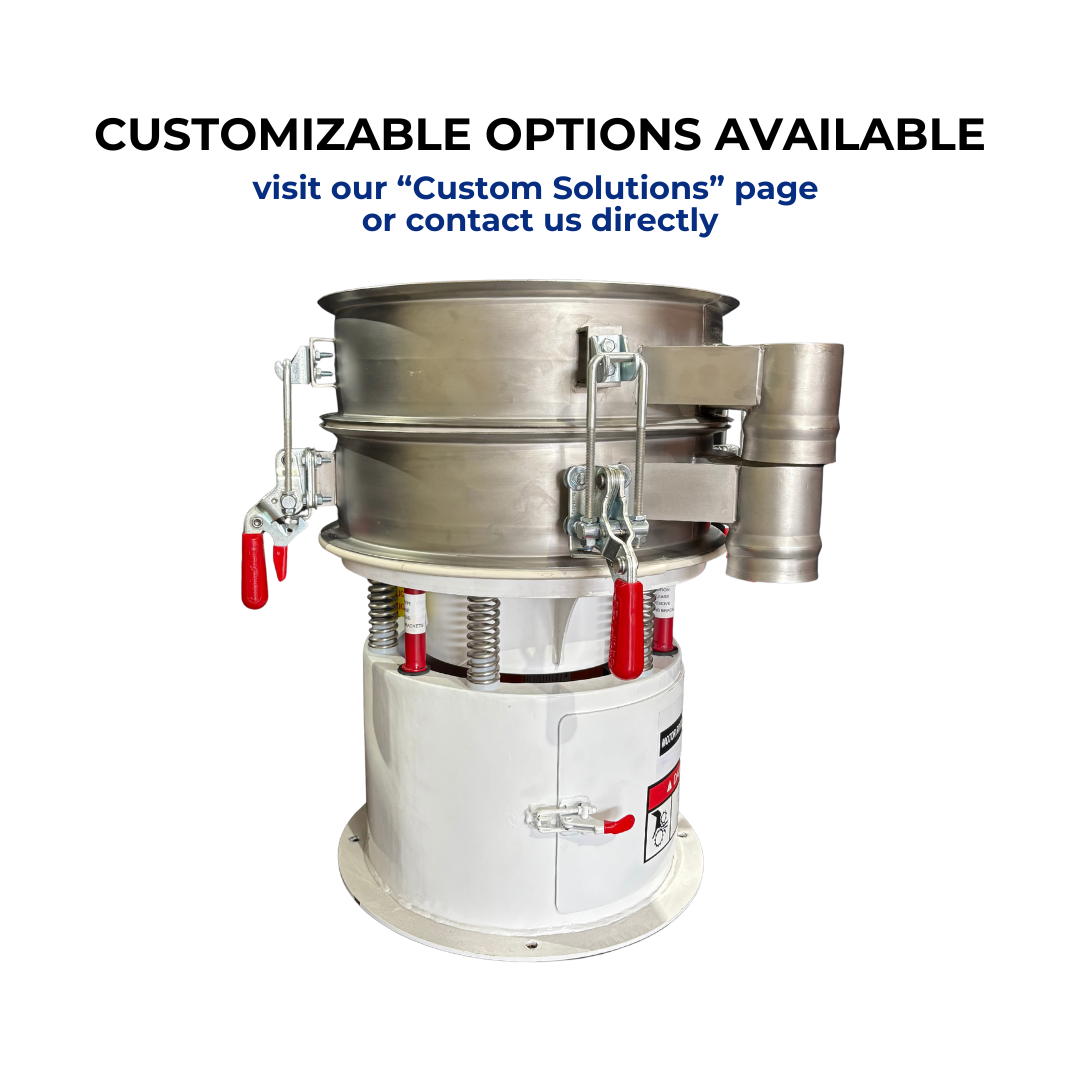

The 18" unit is a portable, economical low-volume screener ideal for both dry and wet separation processes and can be configured with as many as 2 screens to execute a 3-part separation or classification process.  The screens for a 18" unit are available in all mesh sizes and typically do not require a center stud/tie down.

Standards Features Include:

  • Powder coated mild steel base and table
  • 1/6 HP 1800RPM motor with integrated counterweights, (3-phase 230/460V standard)
  • Stainless steel 5" height stainless table frame with 3" diameter tangential discharge spout
  • Stainless steel 5" height stainless spacing frame with 3" diameter tangential discharge spout
  • Clamp rings and hardware

Optional Features Include

  • 115V single phase motor (requires starting capacitor)
  • Stainless steel base, table, and spring assembly

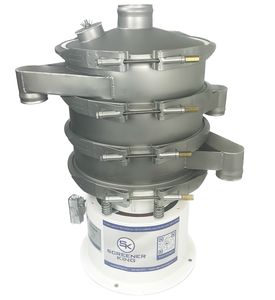

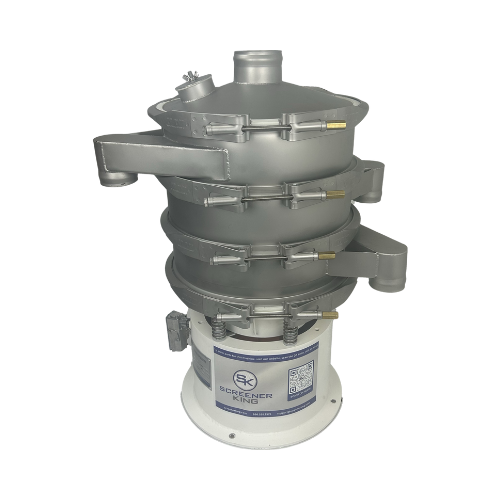

  • Additional frames (decks) to increase from single screen to 2 screen setup (1 screen setup is pictured)

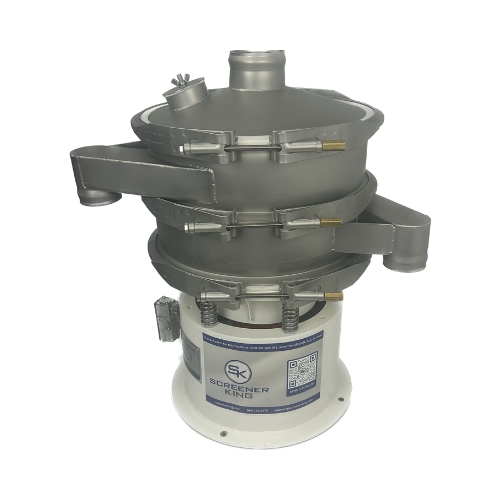

  • Stainless steel, plexiglass, or fabric cover options
  • Locking casters mounted to base for portability
