Elevate your separation process with our All-Mesh Drum Screen. Unlike traditional drum filters with solid or perforated sidewalls, this high-performance model features a continuous 360° stainless steel mesh design. By maximizing the available surface area, this drum allows for significantly faster drainage in wet applications and rapid particle escape in dry sifting, making it the most efficient hand-screening tool in our lineup. This mesh design also makes it a more cost-effective option.

Fully Customizable: Need a different size? We can custom-build this drum to your exact engineering specifications—including custom diameters, heights, mounting tabs, and micron-rated mesh counts. Contact us for a custom quote.

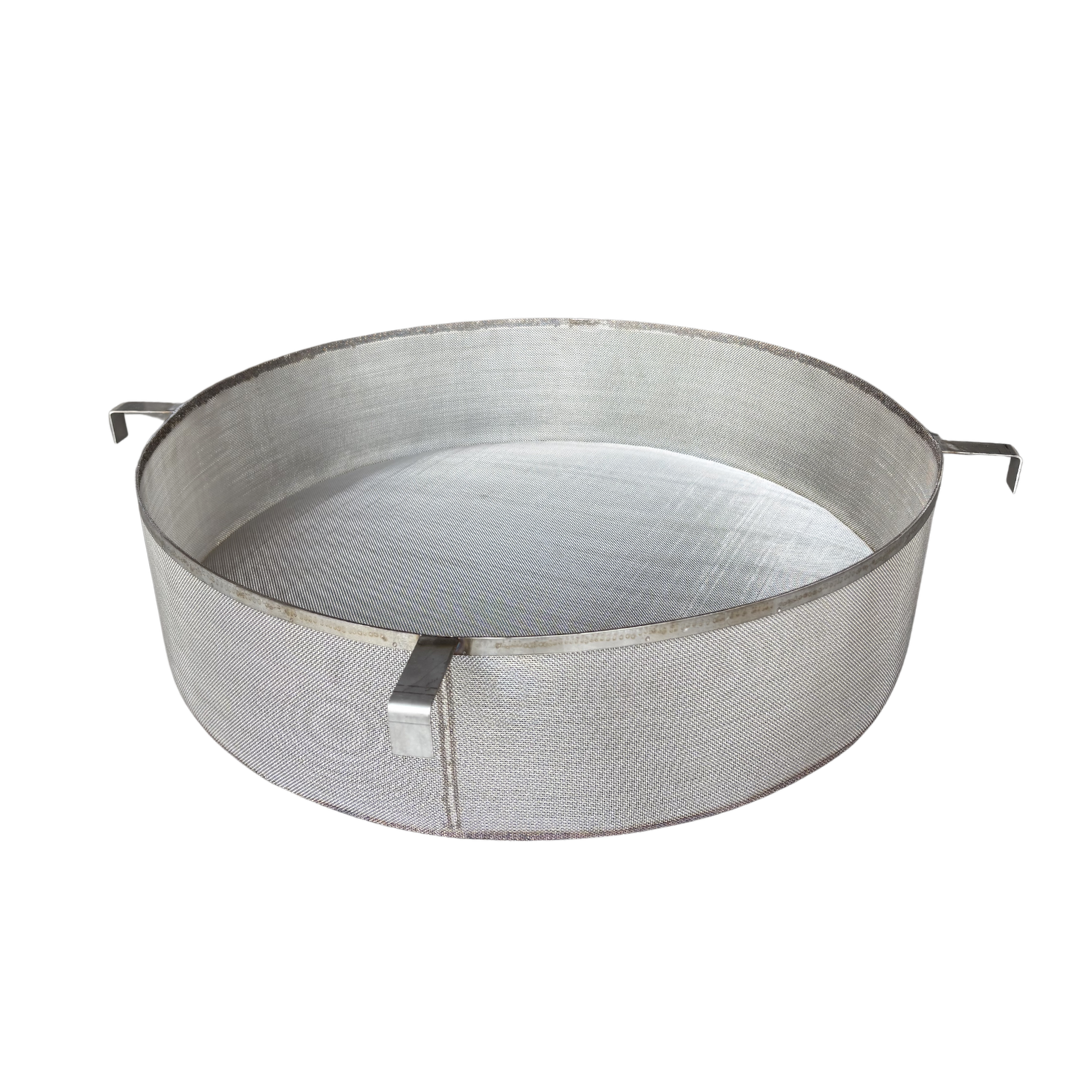

• Showcase Model Dimensions: 20.5" Outer Diameter x 5" Total Height.
• Standard Drum Fit: Specifically engineered to fit 55-gallon steel drums with at least a 22.5” opening. Can also be custom-built depending on your desired use.
• Vessel Compatibility: Perfectly sized to sit over or suspend inside standard plastic barrels, steel drums, custom wash tubs, and separation vessels.
• Custom Sizing Available: Diameters can be scaled from small laboratory sizes up to large 55-gallon drum formats (22.5"+) with custom-welded hanging tabs or flange rims to match your existing equipment setup.

• Lead Times: Ships approximately 2 weeks after order confirmation.
• Shipping Options: Available for domestic and international shipping.
• Expedited Shipping: Available upon request—contact us to prioritize your order.

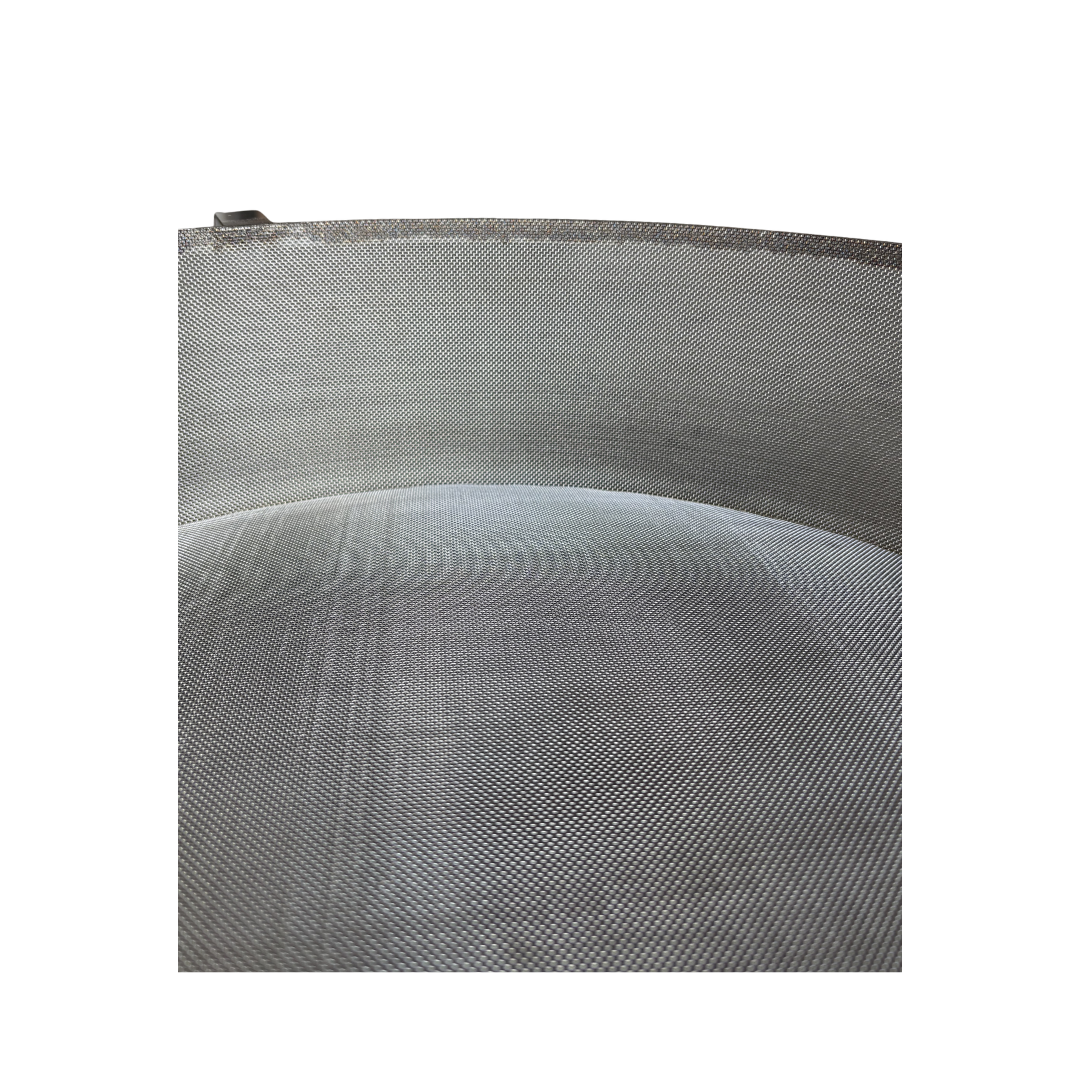

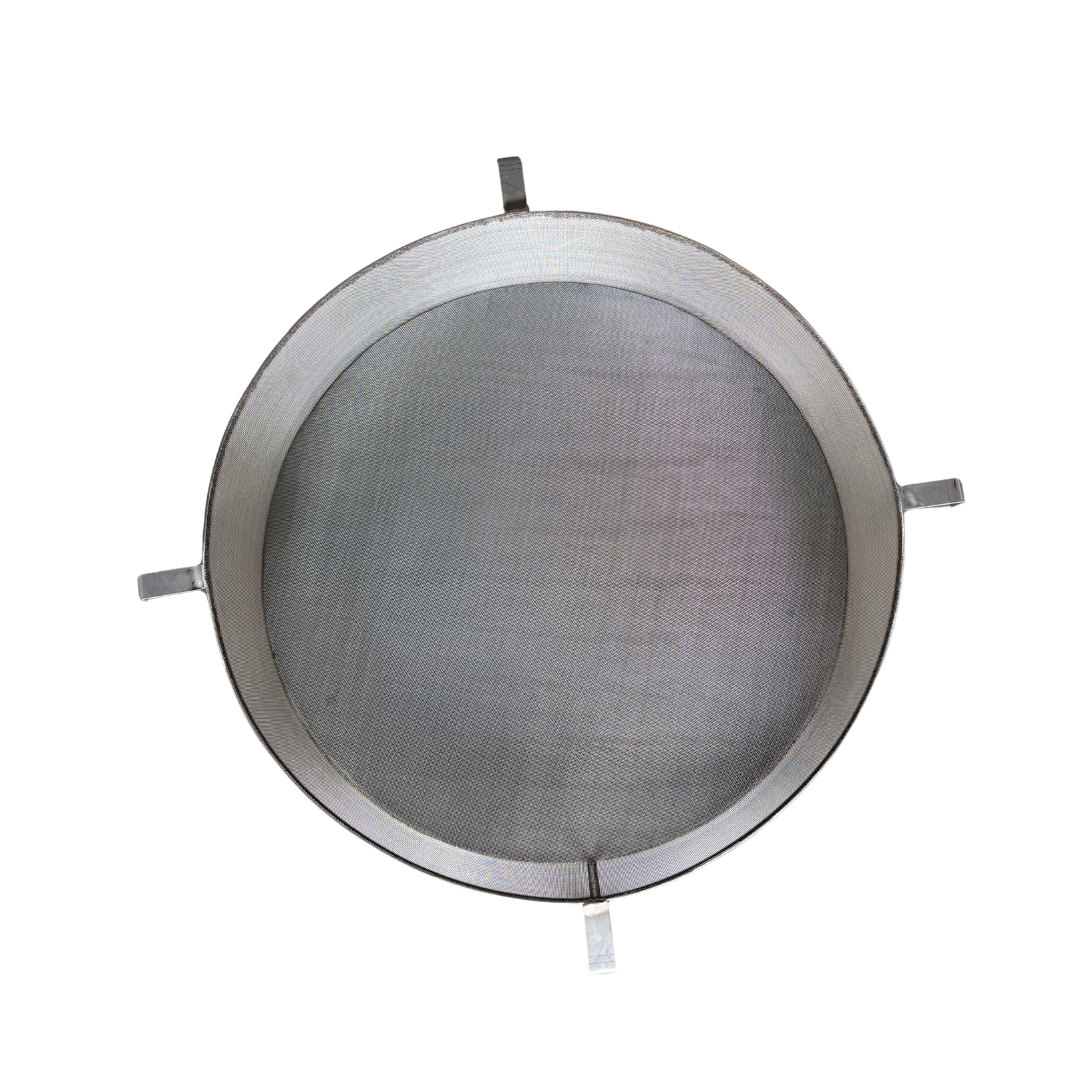

• 360° Filtration Surface: Eliminates "dead zones" by allowing material to pass through the sidewalls and the bottom simultaneously, increasing throughput by up to 40% compared to solid-walled designs. Available in various types of mesh.
• Ultra-Lightweight Design: The all-mesh construction reduces the overall weight of the unit without sacrificing structural integrity, making it easier for operators to handle during long shifts.
• Sanitary & Easy-Clean: With no hidden crevices or solid seams, this drum is easy to hose down or sanitize, preventing cross-contamination between batches.
• Cross-Brace Support: Integrated internal supports ensure the mesh remains taut and retains its shape even under heavy loads.

• Material: 100% T-304 Stainless Steel Mesh and Frame (Various mesh types available).
• Mesh Sizes: Available in a variety of mesh sizes, varying from ultra-fine to coarse.
• Side Supports: Vertical structural ribs are included with mesh finer than 150 microns to ensure rigidity.

Showcase Model:

• Diameter (D): 20.5 inches
• Height (H): 5 inches
• Mesh Grade: 22M0135 Mill Grade (22 x 22 wires per square inch)
• Wire Diameter: 0.0135 inches
• Clear Opening Size: 0.032 inches ($811.6 \text{ Microns}$)
• Total Open Area: 49.42%
• Material Composition: T-304 Stainless Steel (High-temperature rating up to 1,500°F)
• Construction Type: Plain woven wire cloth reinforced with structural perimeter rings

Q: What is the advantage of mesh sides vs. solid sides? A: Solid sides force all liquid or fine particles to exit through the bottom only. Our all-mesh design allows material to exit through the sides as well. This prevents "pooling" and allows you to process larger batches much faster. It also is a more cost-effective option.

Q: Can this be used for dry sifting (kief, pollen, or flour)? A: Yes! The all-mesh design is superior for dry sifting because it allows fine particles to escape horizontally as you agitate or rotate the material, preventing the mesh at the bottom from becoming blinded (clogged) as quickly.

Q: How do I clean the mesh? A: Because it is 100% stainless steel, you can use high-pressure water, steam, or cleaning solvents like PBW (Powdered Brewery Wash). For fine microns (below 100), we recommend an ultrasonic cleaner or a soft nylon brush to avoid damaging the weave.

Q: Does the mesh side make the drum "flimsy"? A: Not at all. We use a reinforced top and bottom ring connected by vertical support struts. This creates a "cage" that protects the mesh while maintaining a high load-bearing capacity.
