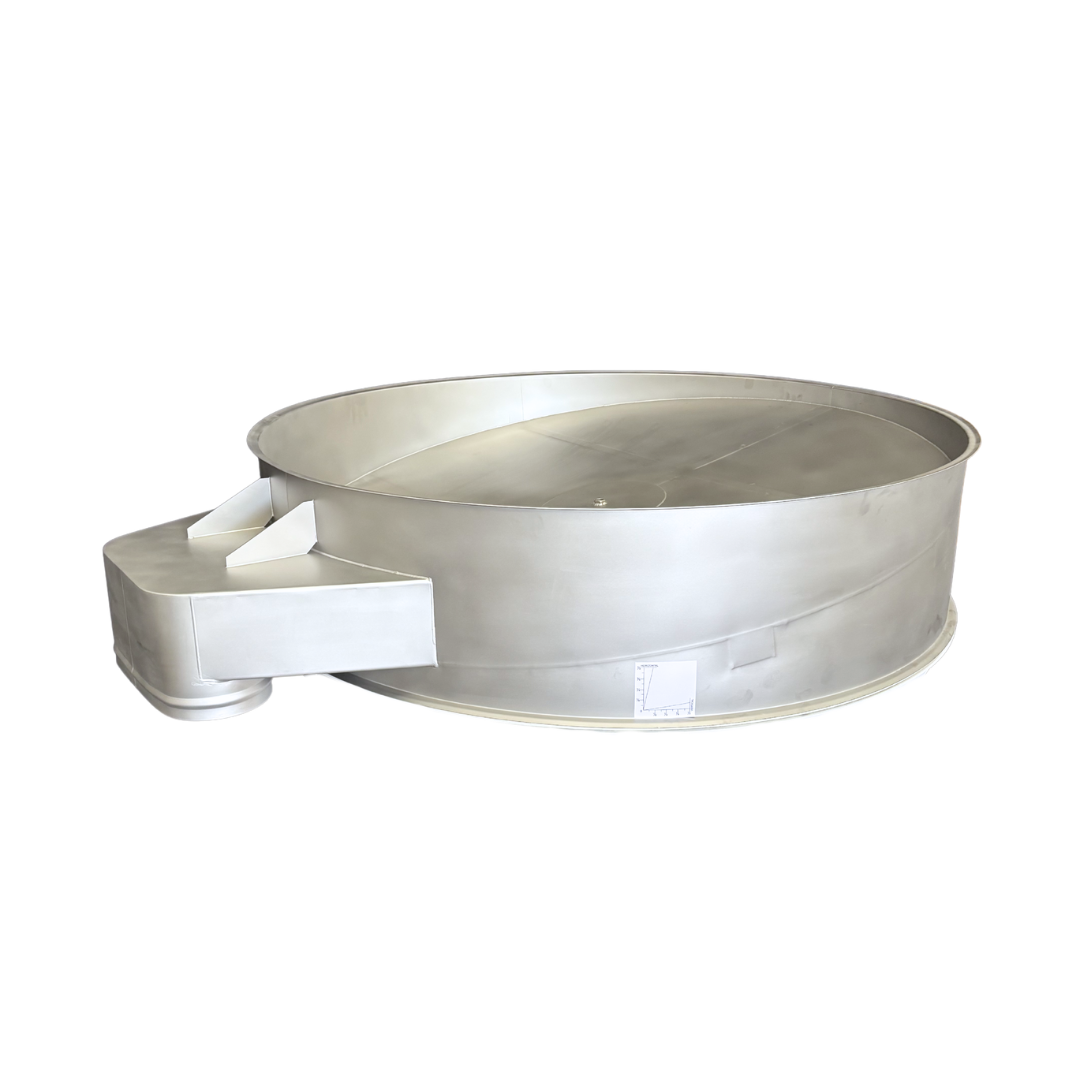

Maximize oversize discharge with the High-Volume Scalping Table Frame with Oversized Outspout — built exclusively for 60" vibratory screeners running the kind of throughput where a standard spout can't keep pace.

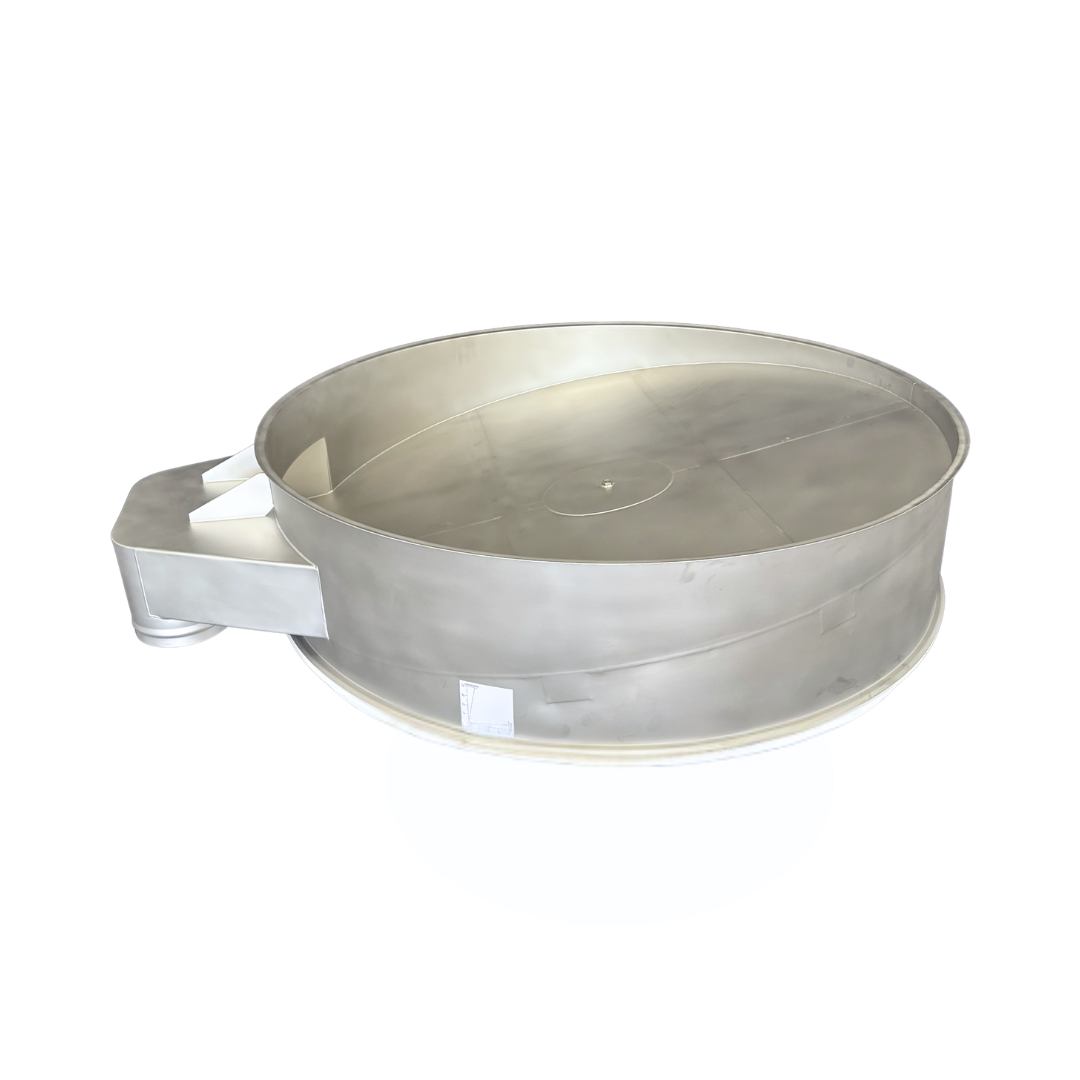

This frame pairs our proven high-volume scalping design with a large 8" W × 16" L oval outspout and a steep sloped bottom panel. Together they deliver our fastest oversize discharge — keeping material moving even when it's heavy, wet, or bridge-prone enough to clog a smaller spout.

Welded reinforcements and robust steel construction stand up to continuous heavy-duty service, while the wide-open discharge path keeps your line running cleaner and with less downtime at peak feed rates.

Oversized Outspout vs. the standard High-Volume Scalping Table Frame

• Outspout: Larger 8" W × 16" L oval opening — vs. the standard oversized radius outspout
• Discharge rate: Our fastest oversize discharge — vs. high on the standard frame
• Machine sizes: 60" only — vs. 30", 48", and 60" on the standard frame
• Best for: Maximum-throughput 60" operations, and heavy, wet, or bridge-prone material that clogs a standard spout — vs. high-volume scalping across multiple machine sizes

• Machine size: Built specifically for 60" round vibratory screeners of common brands
• Function: Drop-in scalping (top-deck) frame — removes oversize material before it reaches your fine mesh screens.
• Construction: 304 stainless steel, bead-blast finish, designed for continuous industrial duty.

• Lead Times: N/A.
• Shipping Options: Parcel or freight shipping available based on frame size.
• Expedited Shipping: Available upon request—contact us to prioritize your order.

• Top-deck placement for high-volume screening systems
• Aggregate, sand, or bulk chemical applications requiring coarse removal
• Food, plastic, or recycling operations handling dense feedstock

• Oversized Radius Outspout: Ensures smooth material flow and minimizes clogging, significantly boosting throughput compared to standard frames.
• Sloped Bottom Panel: Features a radius-oriented oversized outspout, downward-sloping bottom panel, and welded reinforcements for added durability.
• Enhanced Durability: Robust stainless steel construction with welded reinforcements withstands demanding industrial environments for long-lasting performance.
• Reduced Downtime: Optimized design minimizes the risk of out-spout bottlenecks, keeping your production line running smoothly.
• Improved Cleanliness: Effectively contains fines and dust, promoting a safer and cleaner work area for operators.
• Versatile Applications: Ideal for various industrial screening processes requiring high throughput and efficient material handling.

• Material: 304 stainless steel with welded reinforcements, bead blast finish
• Design: Oversized oval outspout with steep sloped bottom panel

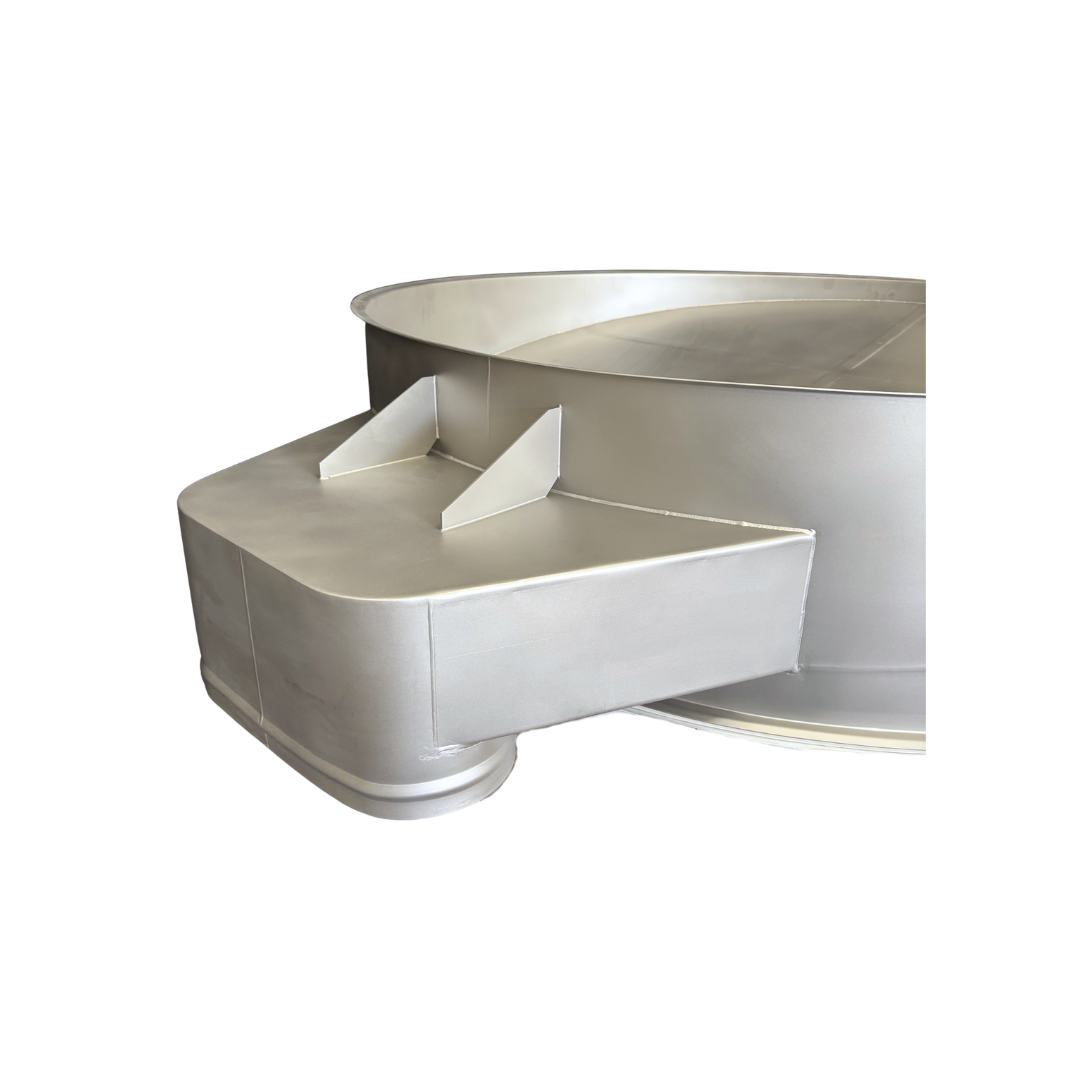

• Outspout opening: 8" W × 16" L, oval
• Machine size: 60" vibratory screeners
• Frame height: 15"

Q: How is this different from the standard High-Volume Scalping Table Frame?
Both scalp oversize material early in the screening process. This version is built for 60" machines and adds a larger 8"×16" oval outspout for even faster discharge — the right choice when you're running maximum throughput or handling material that tends to clog a standard spout.

Q: What is a scalping table frame used for?
It removes oversized material early in the screening process, helping prevent clogs and keeping fine mesh screens from becoming overloaded.

Q: How big is the oversized outspout?
The outspout is an 8" wide × 16" long oval — a larger opening than our standard spout, sized for the fastest possible oversize discharge.

Q: When should I choose the oversized outspout?
Pick it for the highest feed rates, or for wet, sticky, or bridge-prone oversize material where a standard outspout would bottleneck.

Q: What sizes are available?
This frame is built exclusively for 60" vibratory screeners — the size that makes sense for the high-volume throughput it's designed to handle.

Q: Is this suitable for heavy-duty use?
Yes. The frame is reinforced and constructed from robust steel for demanding industrial applications.
