ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor
ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor
ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor
ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor
ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor
ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor ItalVibras 1/3HP 1200 RPM 230/460V 3-Phase Dual Vibratory Motor

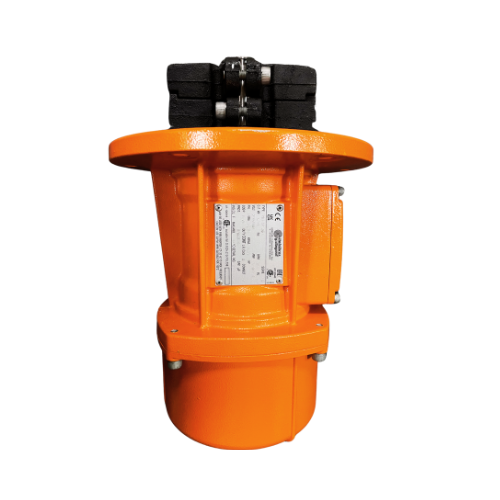

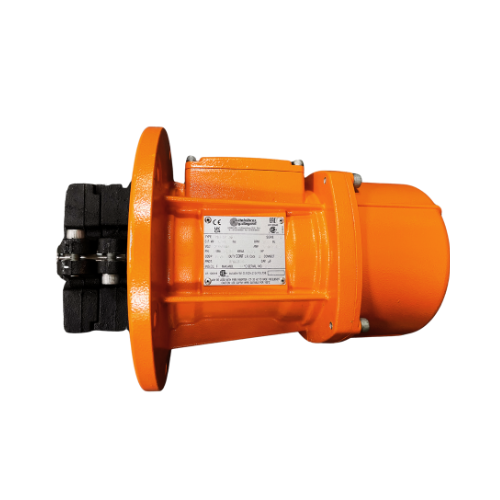

The ItalVibras 1/3HP Vibratory Motor is purpose-built for reliable performance in light-duty industrial screening applications. Designed for seamless integration with 24" sifters, this 1200 RPM motor features dual-voltage support and long-lasting SKF 6205 bearings that are lubricated for life. Its compact and durable design makes it an excellent choice for continuous-duty operations with minimal maintenance.

1/3HP 1200 RPM Motor vs. Higher HP or RPM Models

  • Quieter and gentler operation for smaller or sensitive screeners
  • Lubricated-for-life bearings reduce total cost of ownership
  • Precision mounting for space-constrained systems
  • Designed For: Seamless integration with 24” Sifters.
  • Optional Accessories: Counterweights available upon request (not included in the standard package)
  • Lead Times: N/A.
  • Shipping Options: Parcel or freight shipping available based on motor size.
  • Expedited Shipping: Available upon request—contact us to prioritize your order.

  • SiftPro 24" sifter motor replacement or upgrade
  • Small-scale screeners in food, chemical, or lab environments
  • Hopper agitation, small feeders, or light-duty compactors
  • Dual Voltage Capability: Operates seamlessly on 230/460V in a three-phase configuration.
  • Consistent Performance: Delivers reliable 1200 RPM speed, ideal for industrial applications.
  • Lubricated for Life: SKF 6205 bearings eliminate the need for regular maintenance.
  • Durable Design: Built to withstand continuous operation with high dynamic load capacity.

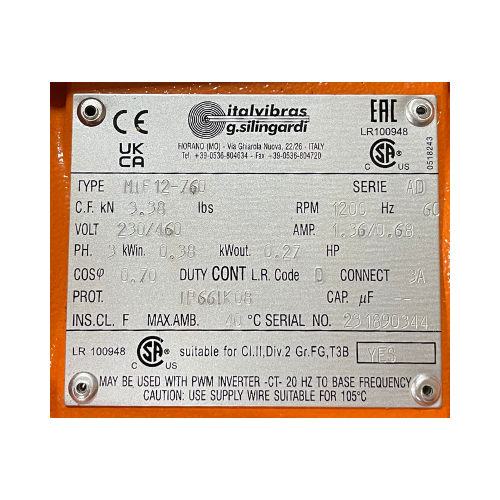

  • Model: MTF 12-760.
  • Horsepower: 1/3 HP.
  • RPM: 1200 RPM.
  • Electrical/Power Requirements: Three-phase 230/460V, Dual Voltage.
  • Input Frequency: 60Hz.
  • Weight: 57.2 lb (26 kg).

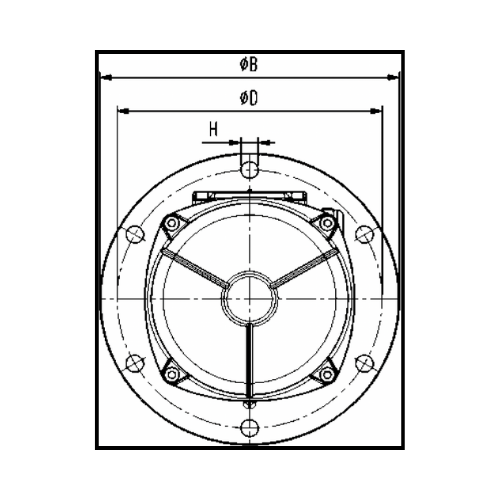

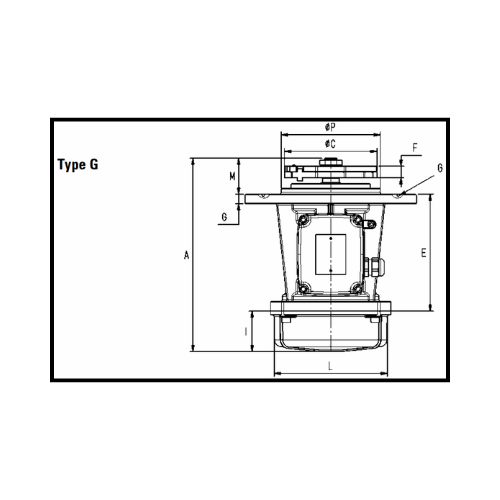

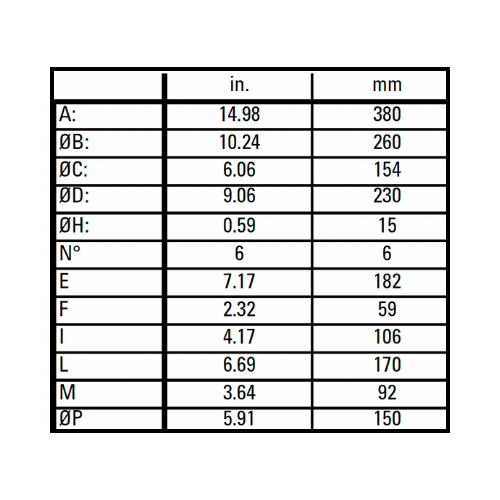

  • Critical Dimensions: 9.06 in (230 mm) mounting diameter for precise fit.
  • Lubrication Interval: Lubricated for life, eliminating the need for regular maintenance.

Q: What machine is this motor built for?
A:
It’s designed to integrate with the 24" SiftPro Sifter and other similar light-duty vibratory systems.

Q: What are the power requirements?
A:
This model supports 230V or 460V in a 3-phase configuration at 60Hz.

Q: How often does this motor require lubrication?
A:
It uses SKF 6205 bearings that are lubricated for life, eliminating the need for scheduled lubrication.

Q: Are counterweights included?

A: No. Counterweights are available upon request, and eccentric weights are not part of the standard package.
