The ItalVibras 2.5HP Vibratory Motor is designed for reliable performance in high-demand industrial screening applications. Engineered for use with 48" and 60" vibratory sifters, this 1200 RPM motor delivers efficient, low-frequency vibration ideal for moving, compacting, or stratifying material. Its durable construction includes high-performance bearings and long lubrication intervals, making it a dependable choice for continuous-use systems.

ItalVibras 2.5HP 1200 RPM vs. Higher RPM Motors

  • Lower RPM offers higher amplitude vibration, better for settling and compaction
  • Quieter operation compared to faster, high-frequency models
  • More torque per cycle, ideal for heavy or dense materials
  • Designed For: Seamless integration with the SiftPro 48 and SiftPro 60 Sifters.
  • Optional Accessories: Counterweights available upon request (eccentric weights not included and must be custom-designed by the customer).
  • Lead Times: N/A.
  • Shipping Options: Parcel or freight shipping available based on motor size.
  • Expedited Shipping: Available upon request—contact us to prioritize your order.

  • Integration with SiftPro 48" and 60" vibratory sifters
  • Screeners, feeders, and compactors in high-throughput production lines
  • Industrial applications requiring controlled material flow or settling
  • High Torque and Efficiency: Delivers powerful and consistent vibrations for continuous operation.
  • Durable Design: Built to withstand demanding industrial environments with NJ 3314 E C4 bearings and robust construction.
  • Optimized for Industrial Use: Rotational speed of 1200 RPM and a three-phase 230/460V configuration ensure reliable operation.
  • Reduced Maintenance: Lubrication interval of every 2,000 hours minimizes downtime and maintenance frequency.

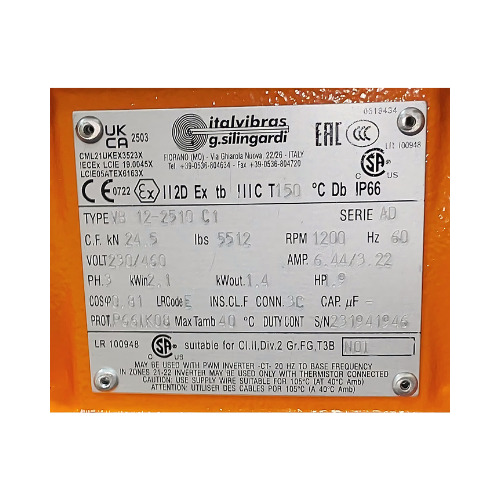

  • Model: VB 12-2510.
  • Horsepower: 2.5 HP.
  • RPM: 1200 RPM.
  • Electrical/Power Requirements: Three-phase 230/460V.
  • Input Frequency: 60Hz.
  • Weight: 135 lb (61 kg).

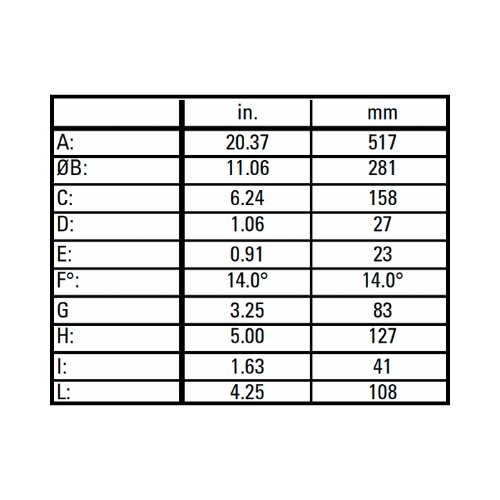

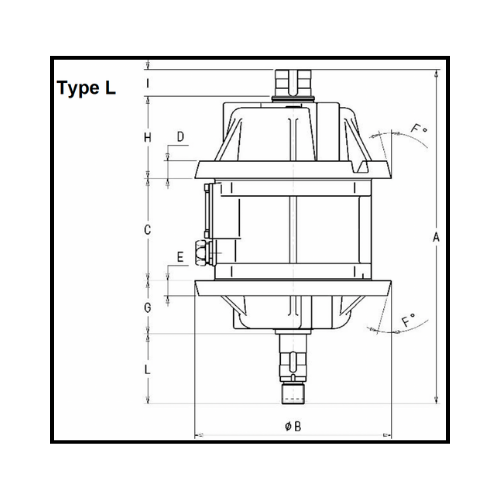

  • Critical Dimensions: 1.06 in (27 mm).
  • Lubrication Interval: Every 2,000 hours for optimal performance.

Q: What machines is this motor designed for?
A:
It is built to integrate with SiftPro 48 and 60 vibratory sifters and similar equipment requiring 2.5HP at 1200 RPM.

Q: Is this motor continuous-duty rated?
A:
Yes. It’s engineered for sustained operation with minimal downtime.

Q: What are the electrical requirements?
A: This motor runs on 3-phase 230/460V power at 60Hz frequency.

Q: Does it come with counterweights?

A: No. Counterweights are available on request, but eccentric weights must be custom-designed by the customer.
