The ItalVibras 2.5HP Vibratory Motor provides high-frequency, consistent vibration for industrial screening, compaction, and conveying systems. Designed for use with 48" and 60" Sifters, this 1800 RPM motor delivers efficient, high-speed performance for demanding applications. Built with NJ 3314 E C4 bearings and optimized for continuous-duty operation, it ensures long-term durability with reduced maintenance requirements.

1800 RPM Motor vs. 1200 RPM Motor

• Higher RPM provides faster, more frequent vibration cycles
• Better suited for light materials and high-speed screening setups
• Produces quicker material response for improved process throughput

• Designed For: Seamless integration with the SiftPro 48 and SiftPro 60 Sifters.
• Optional Accessories: Counterweights available upon request (eccentric weights not included and must be custom-designed by the customer).

• Lead Times: N/A.
• Shipping Options: Parcel or freight shipping available based on motor size.
• Expedited Shipping: Available upon request—contact us to prioritize your order.

• SiftPro 48" and 60" vibratory sifters requiring higher vibration frequency
• Applications needing fast material movement, such as fine particle separation
• Vibratory feeders, conveyors, or compactors where short stroke, high-speed vibration is ideal

• High Torque and Efficiency: Delivers powerful and consistent vibrations for continuous operation.
• Durable Design: Built to withstand demanding industrial environments with NJ 3314 E C4 bearings and robust construction.
• Optimized for Industrial Use: Rotational speed of 1800 RPM and a three-phase 230/460V configuration ensure reliable operation.
• Reduced Maintenance: Lubrication interval of every 1,000 hours minimizes downtime and maintenance frequency.

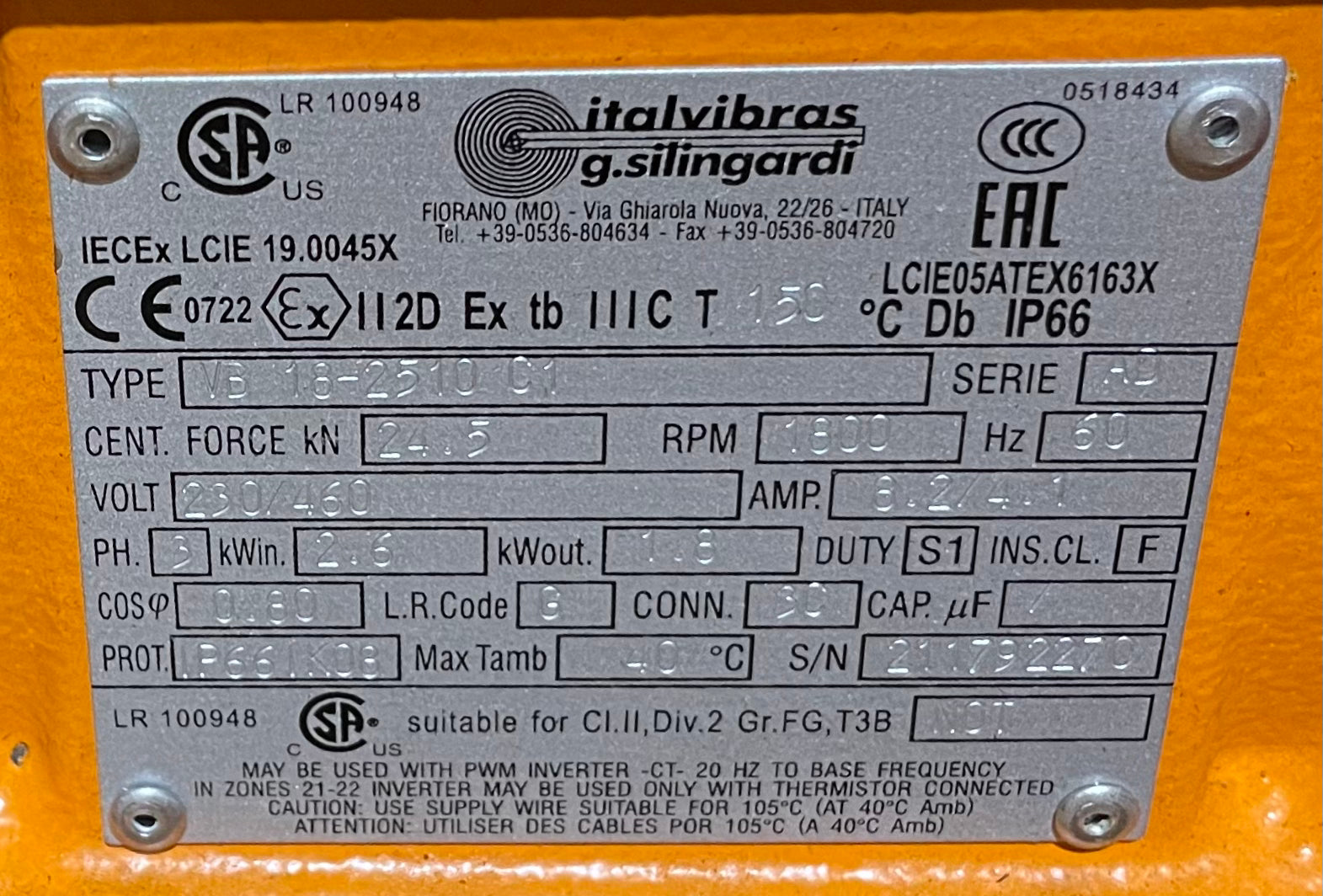

• Model: VB 18-2510.
• Horsepower: 2.5 HP.
• RPM: 1800 RPM.
• Electrical/Power Requirements: Three-phase 230/460V.
• Input Frequency: 60Hz.
• Weight: 150 lb (68 kg).

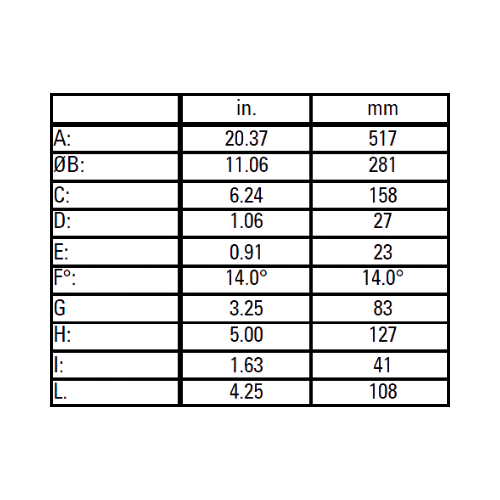

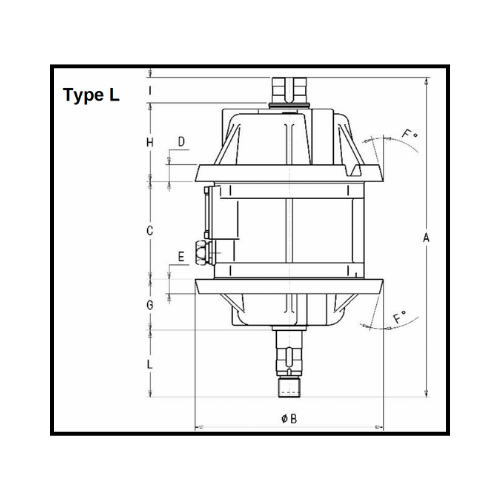

• Critical Dimensions: 20.37 in (517 mm) overall length.
• Lubrication Interval: Every 1,000 hours for optimal performance.

Q: What type of motion does the 1800 RPM motor provide?
A: It generates high-frequency vibration with shorter stroke, ideal for quick material response and fine separation.

Q: Is this motor continuous-duty rated?
A: Yes. It is built for S1 continuous-duty operation, capable of running full time under load.

Q: What power requirements does this support?
A: The motor operates on 230/460V, 3-phase power at 60Hz.

Q: Can I use it with eccentric weights?

A: Eccentric weights are not included and must be custom-designed by the customer. Counterweights are available upon request.
