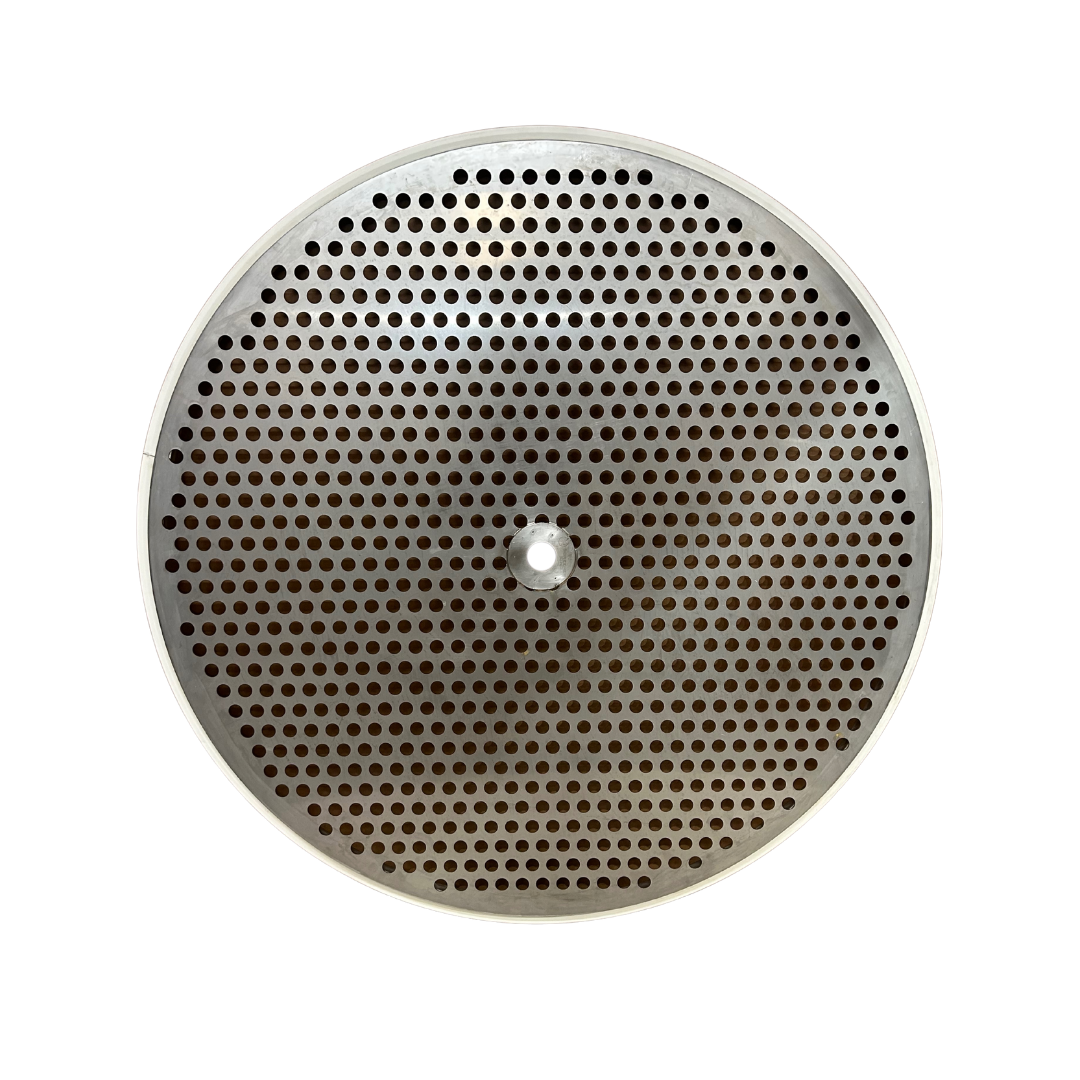

Perforated Plate Screen with a center hole and screen gasket Perforated Plate Screen with a center hole and screen gasket
Perforated Plate Screen with a center hole and screen gasket

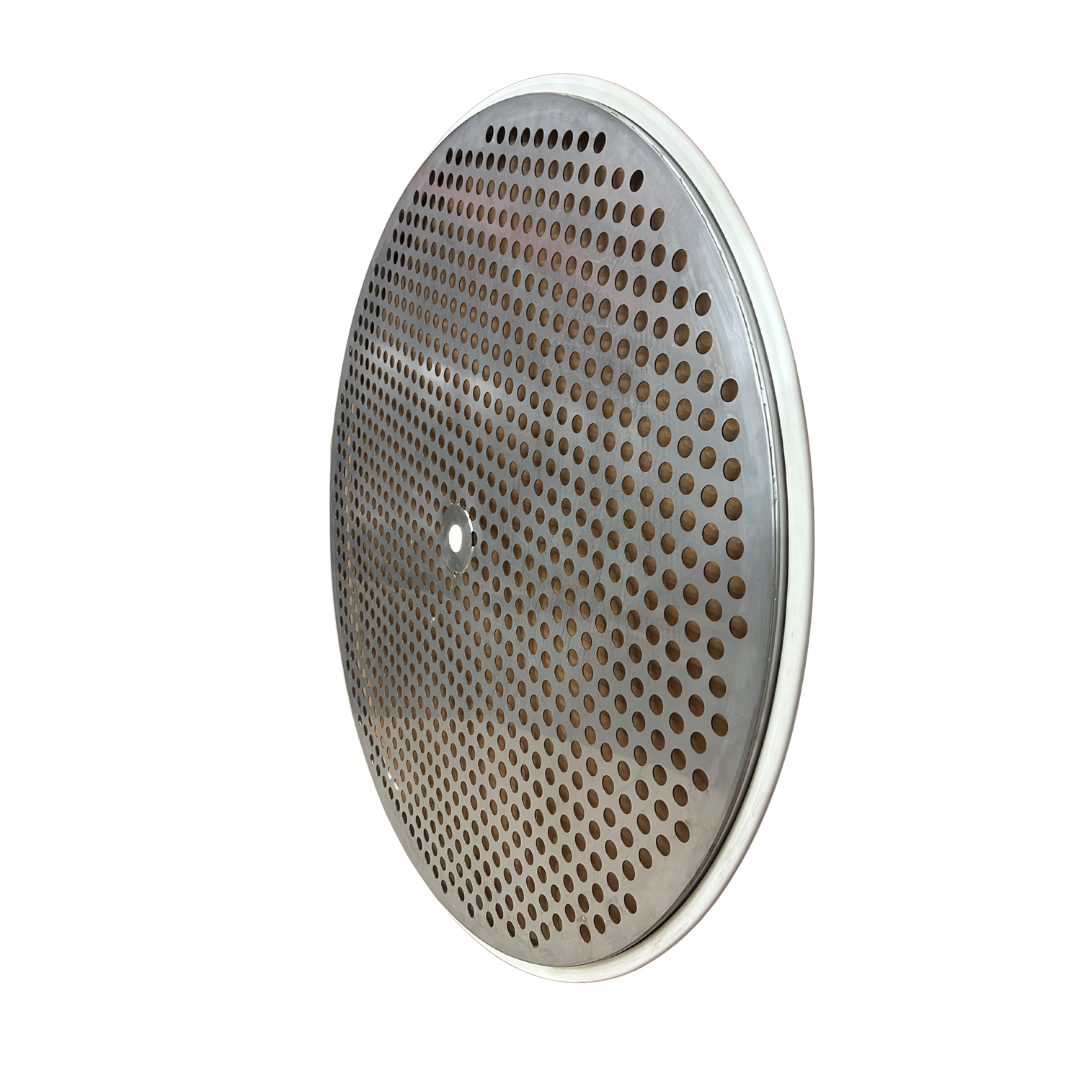

Perforated Plate Screen side view, displaying the screen ring with a gasket Perforated Plate Screen side view, displaying the screen ring with a gasket
Perforated Plate Screen side view, displaying the screen ring with a gasket

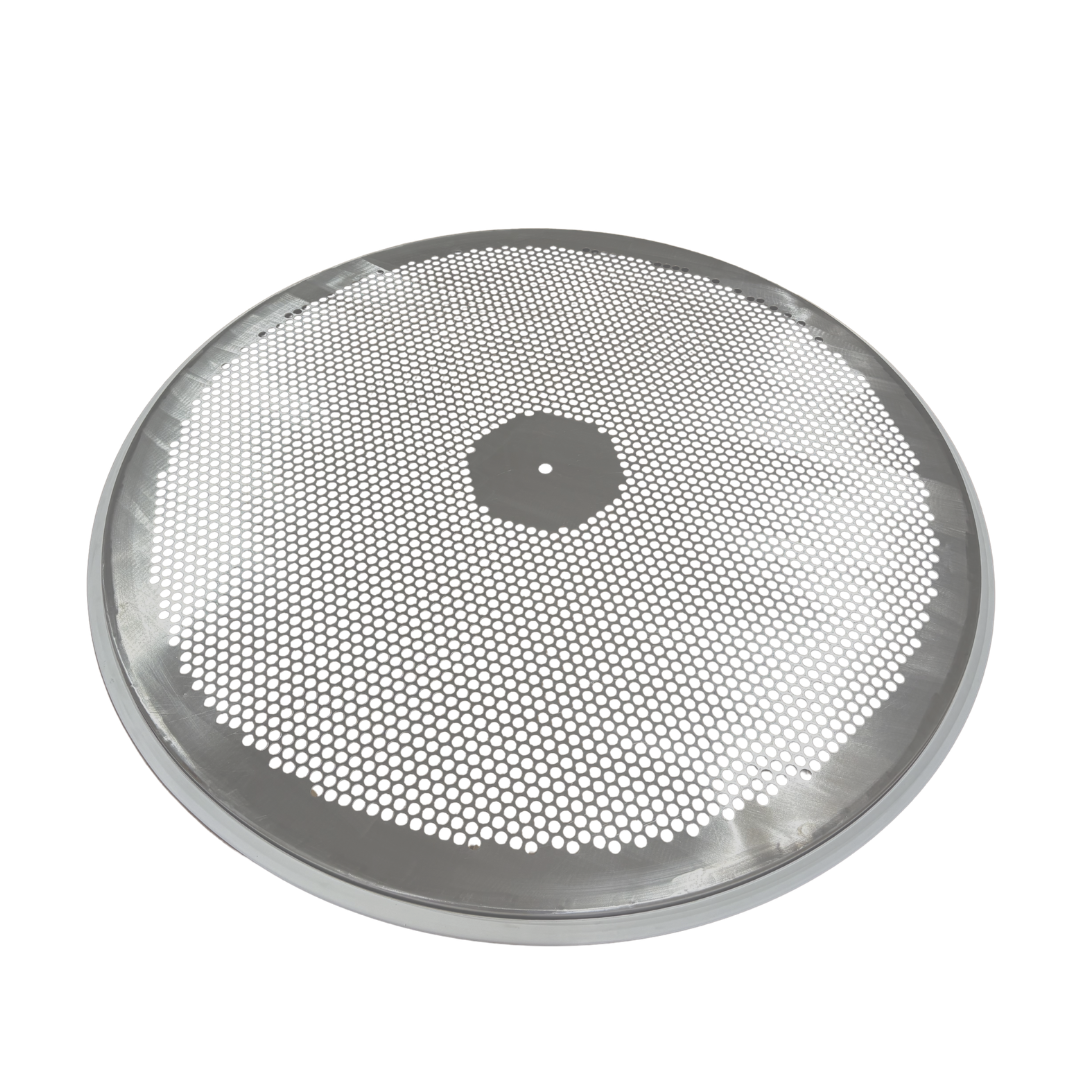

Another version of our perforated plate screen, with more openings necessary for a different type of application Another version of our perforated plate screen, with more openings necessary for a different type of application
Another version of our perforated plate screen, with more openings necessary for a different type of application

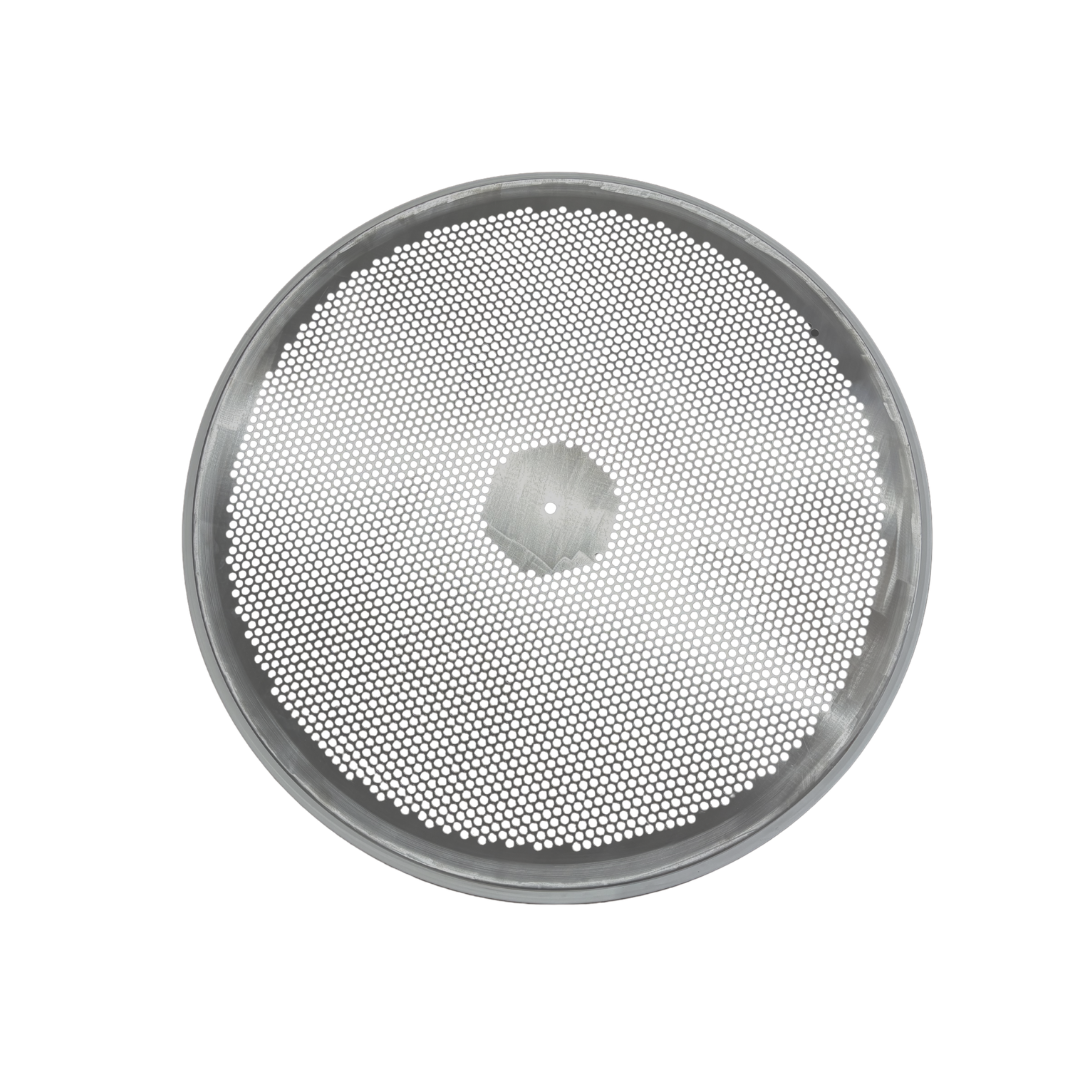

Straight on view of our perforated plate screen, showing the increased amount of holes needed for this application Straight on view of our perforated plate screen, showing the increased amount of holes needed for this application
Straight on view of our perforated plate screen, showing the increased amount of holes needed for this application

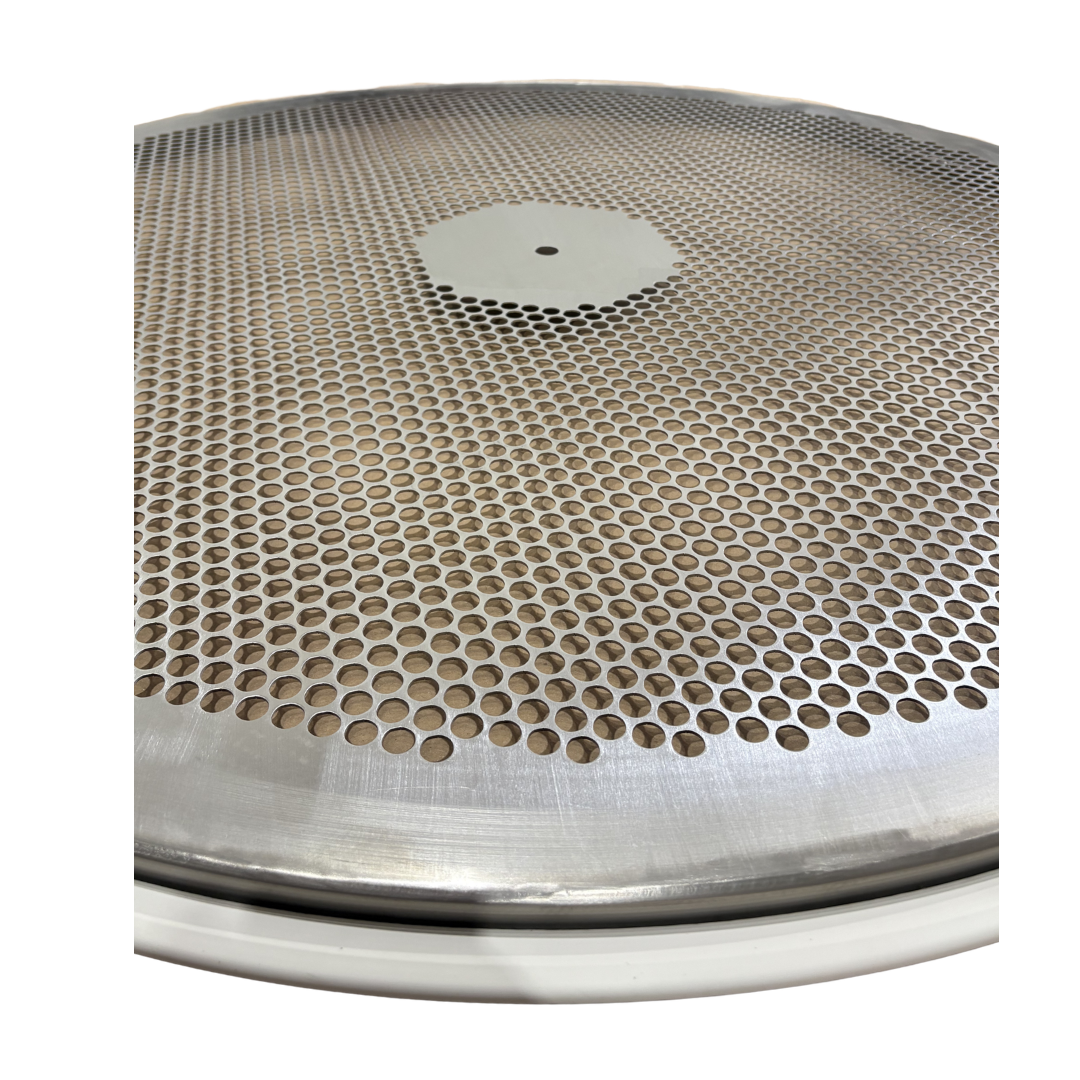

Up close view of our perforated plate screen on a screen ring, with a screen gasket Up close view of our perforated plate screen on a screen ring, with a screen gasket
Up close view of our perforated plate screen on a screen ring, with a screen gasket

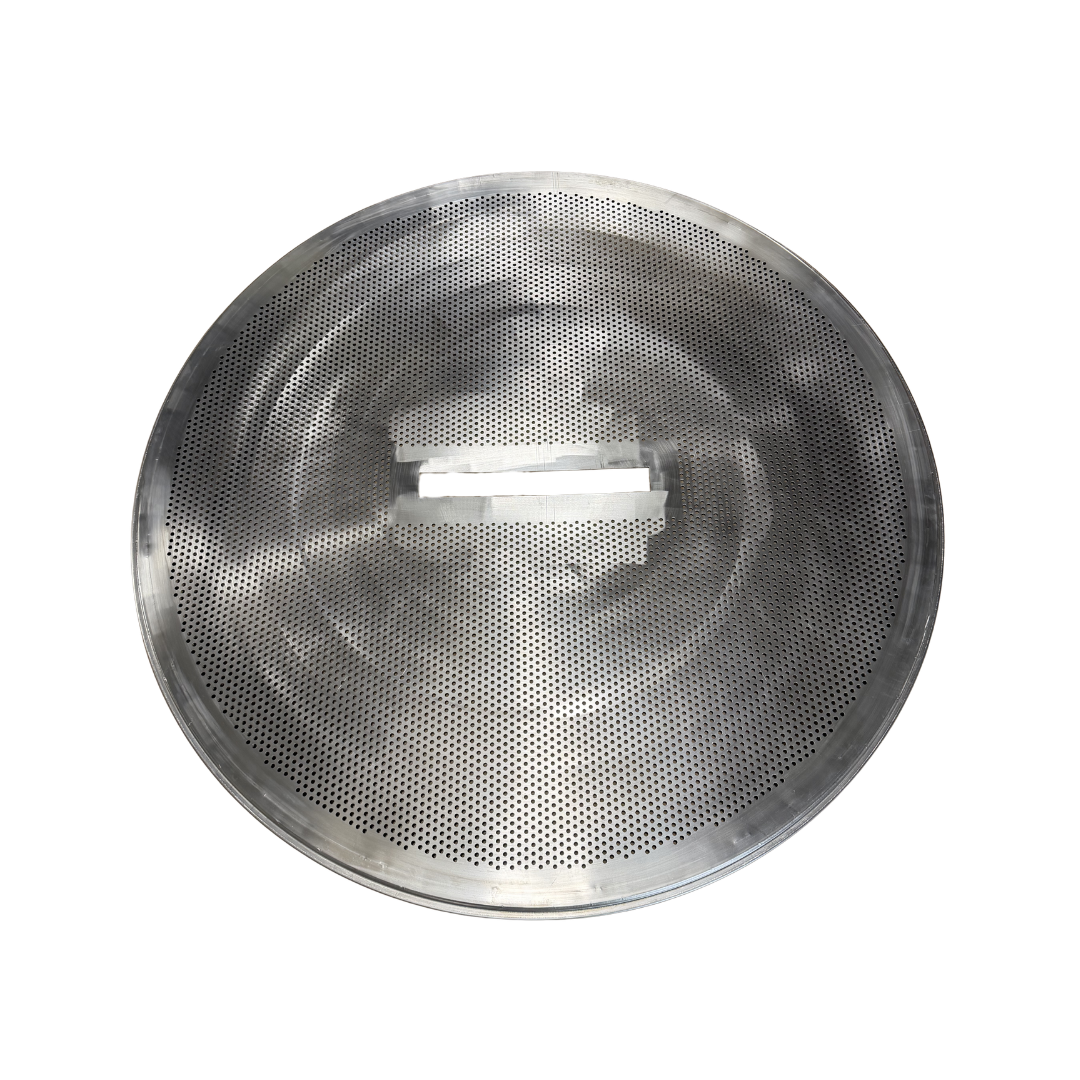

Perforated Plate Screen with a custom center opening Perforated Plate Screen with a custom center opening
Perforated Plate Screen with a custom center opening
Perforated Plate Screen with a center hole and screen gasket Perforated Plate Screen with a center hole and screen gasket
Perforated Plate Screen side view, displaying the screen ring with a gasket Perforated Plate Screen side view, displaying the screen ring with a gasket
Another version of our perforated plate screen, with more openings necessary for a different type of application Another version of our perforated plate screen, with more openings necessary for a different type of application
Straight on view of our perforated plate screen, showing the increased amount of holes needed for this application Straight on view of our perforated plate screen, showing the increased amount of holes needed for this application
Up close view of our perforated plate screen on a screen ring, with a screen gasket Up close view of our perforated plate screen on a screen ring, with a screen gasket
Perforated Plate Screen with a custom center opening Perforated Plate Screen with a custom center opening

Perforated plate screens are made by cutting precise holes in stainless steel sheet metal. Common applications include industries driven by round hole sizing standards (e.g. food nuts), applications where smoother operating surfaces benefit the separation, some highly abrasive applications where perforated steel can outlast wire mesh, and slotted applications with unique dimensions such as rectangular or oval slots.

Perforated plate screens are made by cutting the holes on a fiber laser CNC machine that is then welded to a standard screen ring. Pricing is based on hole size, hole stagger, pattern, and thickness of the stainless steel

The ScreenerKing Advantage: Laser-Cut Accuracy
Our new line of Perforated Plate Screens is manufactured using advanced Custom Fiber Laser technology. This ensures every plate is cut to within microscopic tolerances, guaranteeing a perfect "drop-in" fit for your machine without the need for field modifications.

Standard & Custom Sizes
We manufacture plates to fit all industry-standard round vibratory separators.

  • Standard Diameters: Available for 18", 24", 30", 36", 40", 48", and 60" units.
  • Custom Sizes: Because we use CNC laser-cutting, we can manufacture plates to any specific ID/OD requirement for non-standard or legacy equipment.

Universal Compatibility
These plates are engineered for a seamless fit with the following manufacturers:

  • ScreenerKing: SiftPro Series (all sizes).
  • SWECO® & Midwestern®: Designed to meet or exceed OEM specifications for diameter and mounting.
  • Kason®: Fully compatible with standard round separator configurations.
  • Perforated Plate screens are made in house and typically can fabricated within 1-2 weeks of order.
  • Expedited Processing: We pride ourselves on shipping faster than competitors, and may be able to offer expedited fabrication depending on material availability and work cell production volume
  • Precision-engineered to fit all major round vibratory screener brands, including Sweco, Midwestern, and our SiftPro Series.
  • Welded to a standard screen ring for a seamless, secure fit.
  • Available for all standard diameters: 18", 24", 30", 36", 40" 48", and 60". Also availability in custom sizes.
  • Common sheet metal: 12 gauge, 14 gauge, and 16 gauge 304 stainless steel
  • Minimum hole size: 1/32" round
  • Please contact us at 866-265-1575 Option 1 for exact pricing and lead time
