Keep your product pure before it ever reaches the next step. This custom rectangular screen drops into your tote and hangs by its mounting tabs — pour material in from the top, and it passes through the mesh at the bottom while clumps and foreign material stay behind. Built for protein powder and any other food-safe application where purity matters. No machine, no power, no setup: just drop it in, pour, and pull it out.

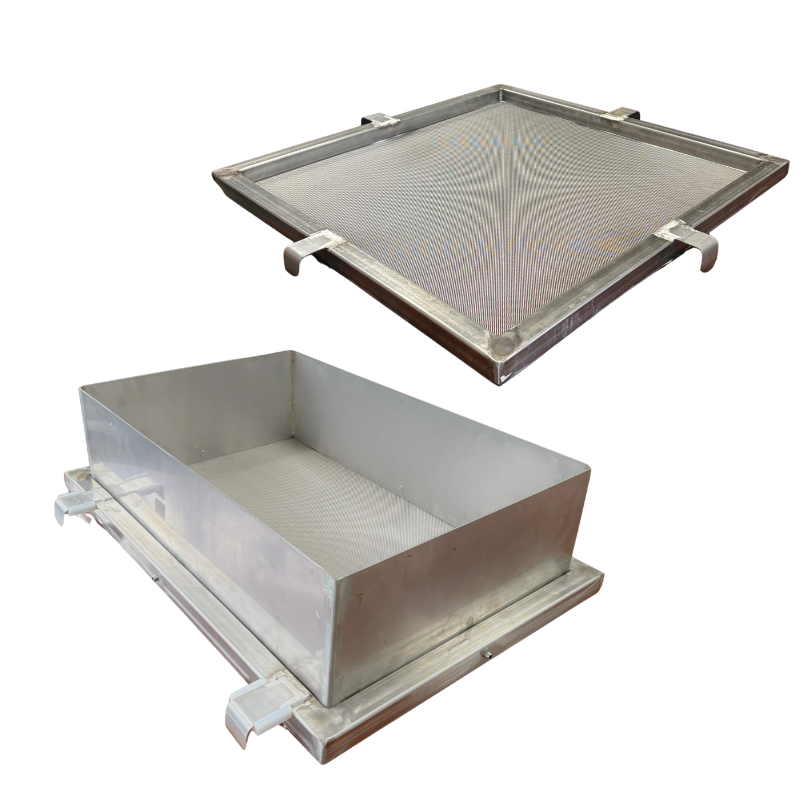

Fully Customizable: Need it sized for a different tote or tub, or the square panel version for a hopper instead? We build this to your exact opening dimensions and mesh spec.

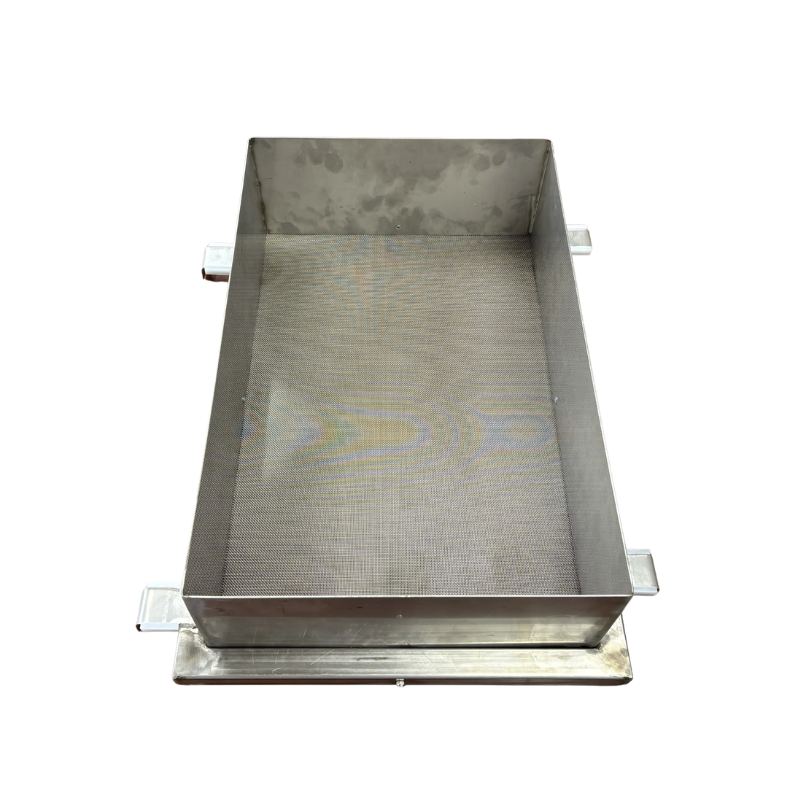

• Tote Fit: Rectangular basket frame with 4 fixed mounting tabs that hook over the tote’s rim, holding the frame suspended inside the tote while material is poured in.
• Showcase Model Dimensions: 23"L x 15"W x 18"H frame, with mesh stretched across the bottom.
• Impact Guard: An internal material guard (21"L x 13"W x 5.75"H) mounts just above the mesh to take the impact of poured material without interfering with the screen.

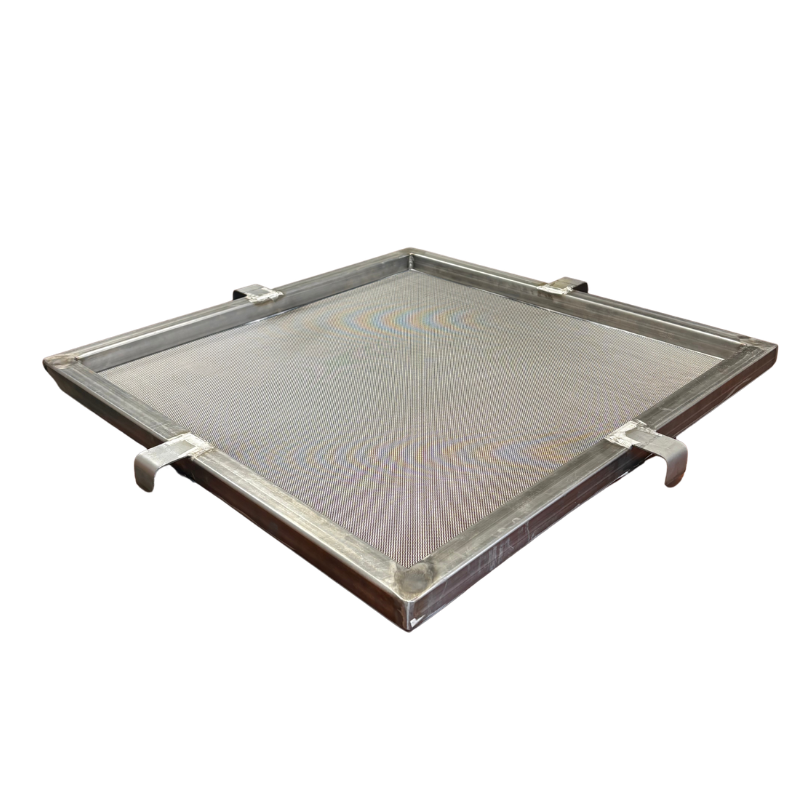

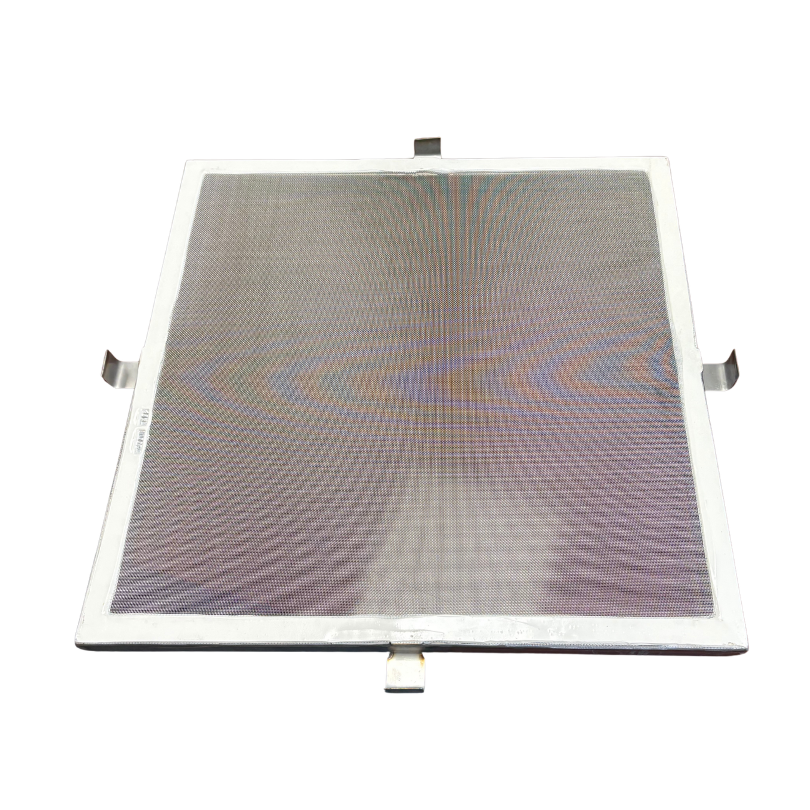

• Square/Hopper Version: Also available as a flat square panel (21-7/8" x 21-7/8") with hook-style tabs, sized to inset directly into a hopper opening rather than hang inside a tote.

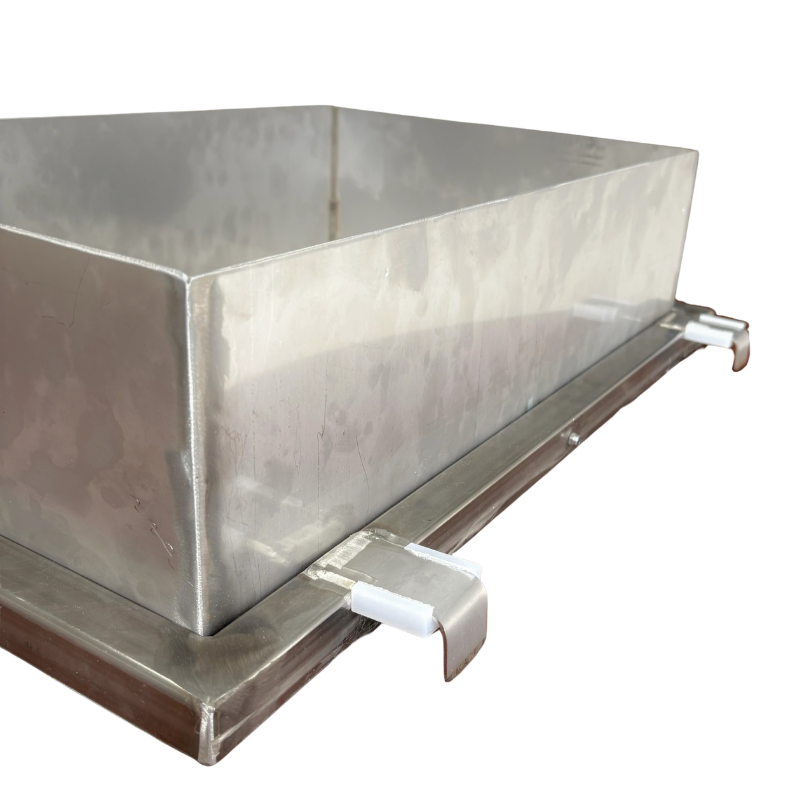

• Custom Sizing Available: Built to match your specific tote or hopper opening.

• Lead Times: Ships approximately 3-4 weeks after order confirmation.
• Shipping Options: Available for domestic and international shipping.
• Expedited Shipping: Available upon request — contact us to prioritize your order.

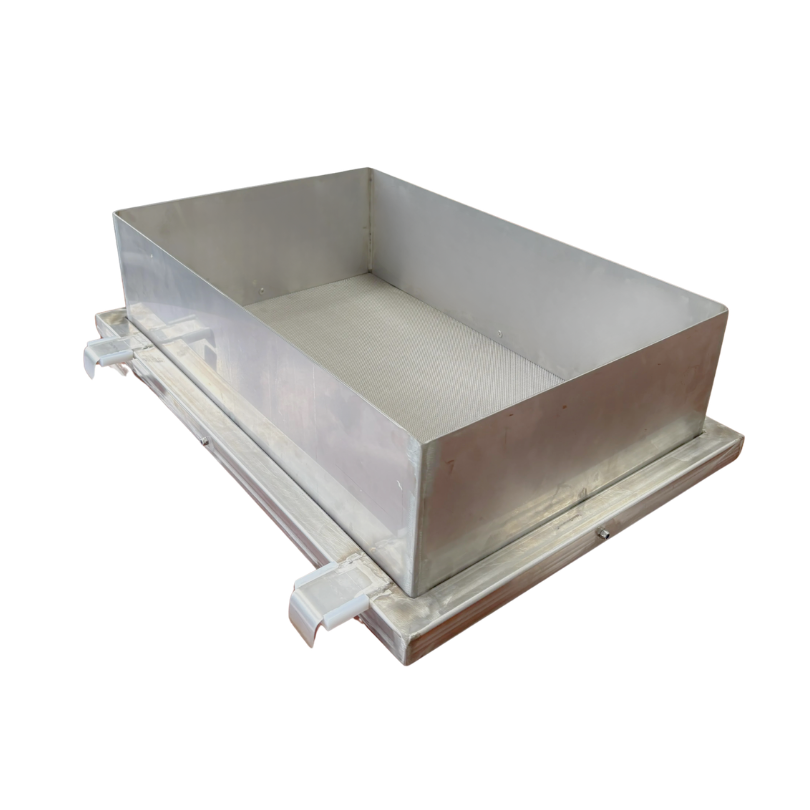

• Hands-Free Tabs: 4 fixed tabs hook over the tote’s rim, holding the frame securely in place while you pour — no holding, no slipping.

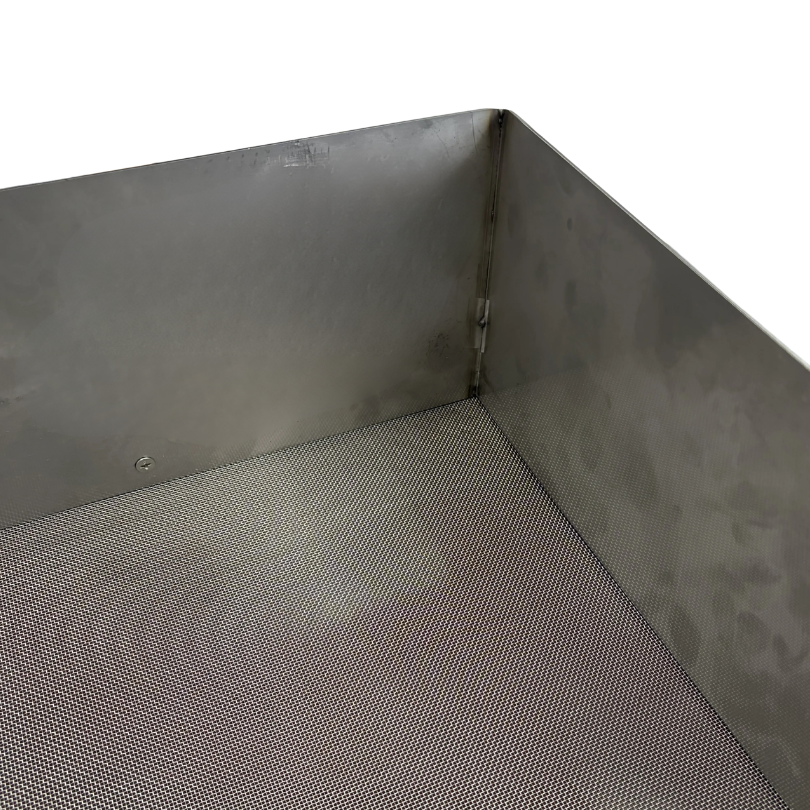

• Impact-Protected Mesh: The internal material guard absorbs the force of poured material so the mesh underneath stays taut and undamaged over time.
• Purity Check, No Machine Required: Removes clumps and foreign objects from your product in a single pass, no vibratory equipment needed.

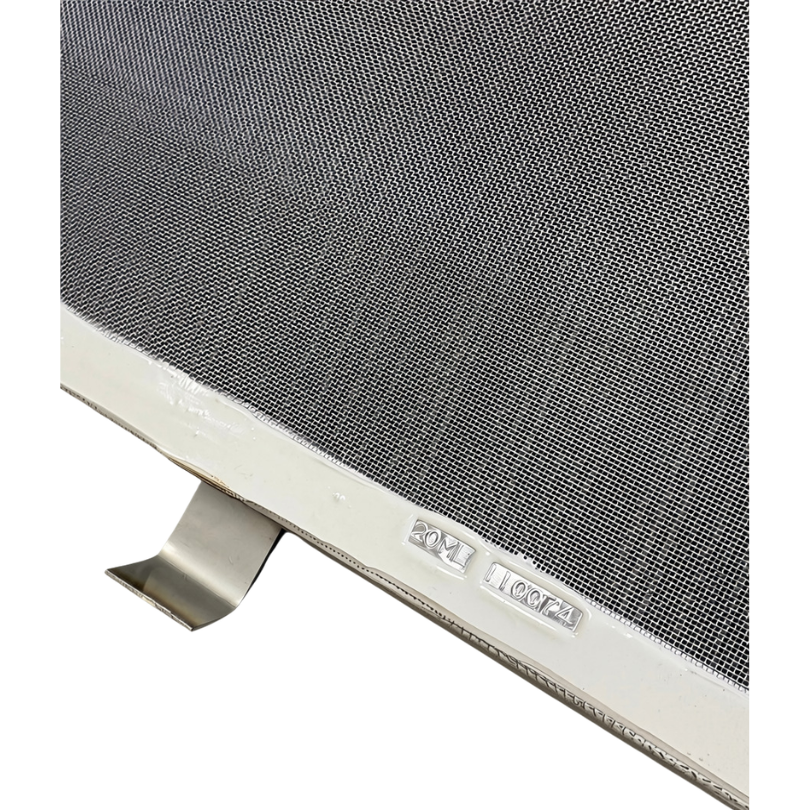

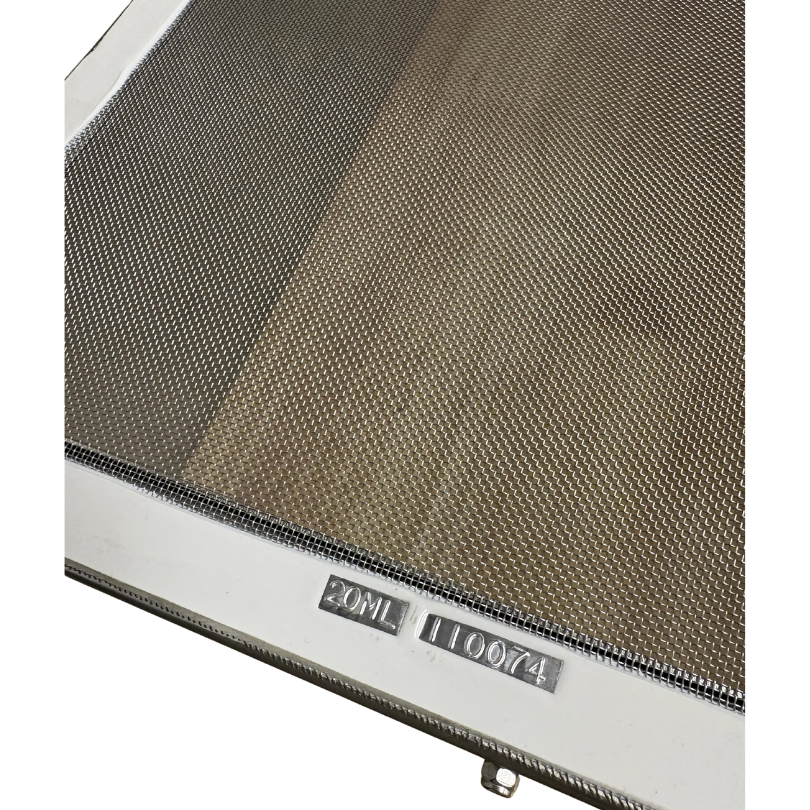

• Food-Grade Stainless Construction: 304 stainless steel frame and mesh, frame finished with a food-grade epoxy coating for added sanitary protection.
• Sanitary & Easy-Clean: No seams or dead zones to trap residue — hoses down or wipes clean between batches.

• Material: Food-grade 304 Stainless Steel frame (1" square tube) and mesh, finished with a food-grade epoxy coating.
• Mesh Size: 20 Mesh, 0.016" wire diameter.
• Clear Opening Size: ~0.034" (approx. 864 microns).
• Total Open Area: ~46%.

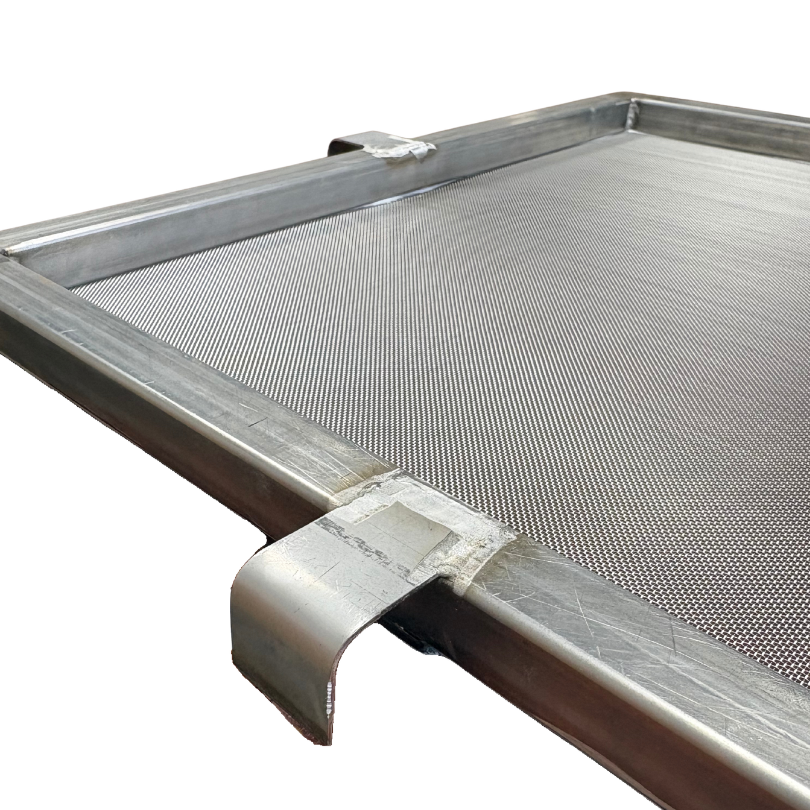

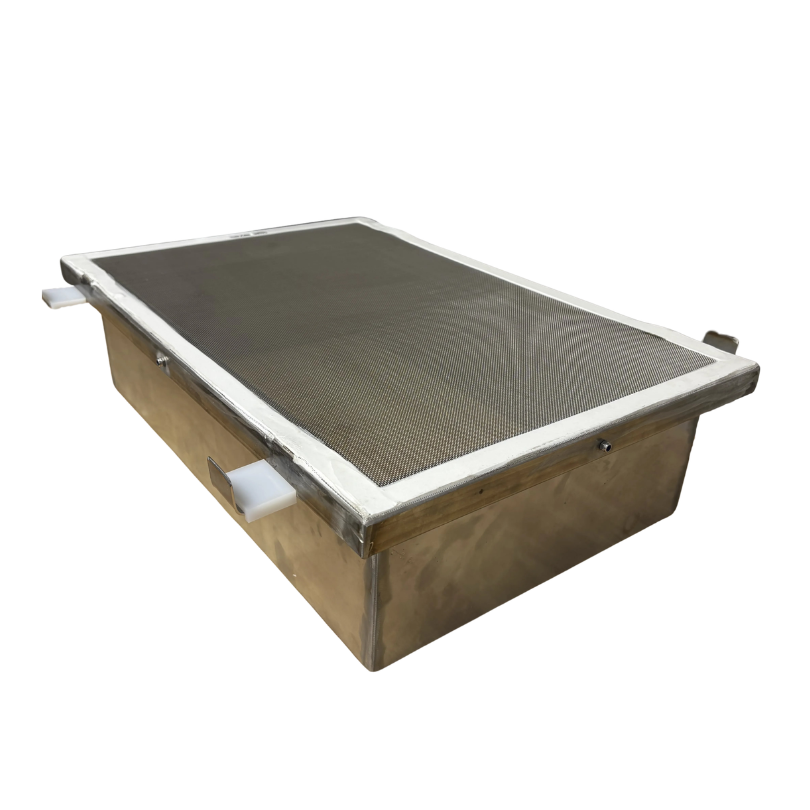

• Frame Type: Welded tube-steel basket frame, mesh on bottom, 4 fixed mounting tabs.
• Showcase Model (Rectangular/Tote):

Frame: 23"L x 15"W x 18"H

Material Guard: 21"L x 13"W x 5.75"H

• Square/Hopper Version:

Frame: 21-7/8" x 21-7/8" (max width to inset on a hopper), 1" square tube

Tabs: 4 hook-style tabs, 16-gauge stainless sheet

• Q: Is this food-safe for direct contact with my product?

A: Yes — the frame and mesh are 304 stainless steel, and the frame carries a food-grade epoxy coating.

• Q: Does it fit any size tote?

A: The showcase model fits a 23" x 15" opening, but we custom-build to your tote’s exact dimensions.

• Q: Is there a version for hoppers instead of totes?

A: Yes — a square panel version (21-7/8" x 21-7/8") is available with hook tabs that inset directly into a hopper opening.

• Q: How do I clean it between batches?

A: Being 100% stainless with a food-grade epoxy finish, it can be hosed down, wiped, or sanitized with standard cleaning solvents.
