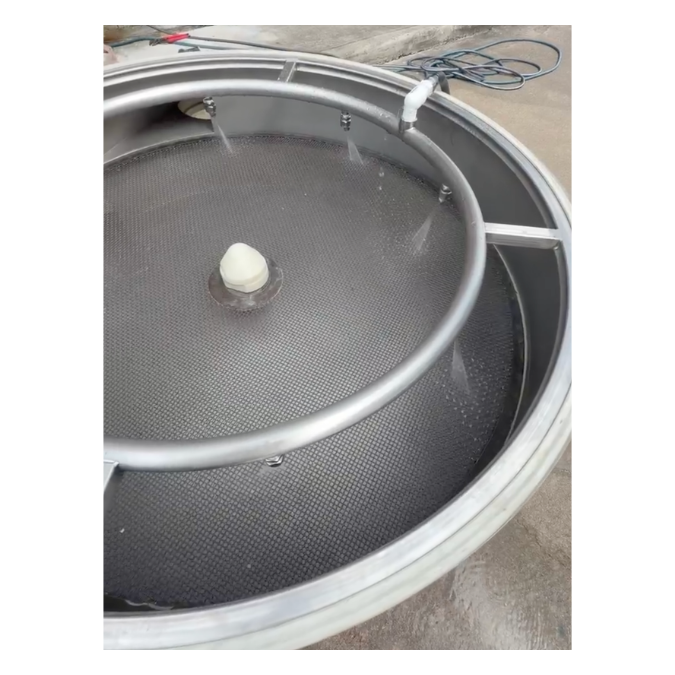

Our Spray Bar is a custom-built stainless steel wash ring that mounts to the top of your round vibratory separator and rinses the screen while the machine runs. Adjustable nozzles direct water across the mesh to keep stubborn oversize moving toward the discharge, wash fines through the screen during classification, and pre-clean the deck at the end of a batch so there is far less to tear down and scrub. Each unit is fabricated to your machine diameter and your process, making it a practical answer for sanitary operations that wash between products and for wet screening applications.

• Built to your machine diameter: fabricated to order for your separator's screen ring.
• Mounts to a standard screen ring: assembles onto the top of a standard machine frame like any other deck component.
• Runs with or without a clamp ring: clamp ring when spraying in motion; skip it for a static wash-down.
• Fits common separator brands: Sweco, Kason, Midwestern and similar round vibratory separators.
• Not sure of your size?: send us your machine size and brand and our team will match the ring to your deck.

Lead Times: N/A - project dependent

Shipping Options: parcel or freight based on diameter and configuration.

Expedited Shipping: available upon request—contact us to prioritize your order.

• Washes while you screen: rinse fines through the mesh during classification instead of running a separate wet process.
• Keeps the mesh open: moves sticky, hard-to-shift oversize toward the discharge before it blinds the screen.
• Cuts teardown time: pre-clean the deck after a batch so there is far less to disassemble and scrub.

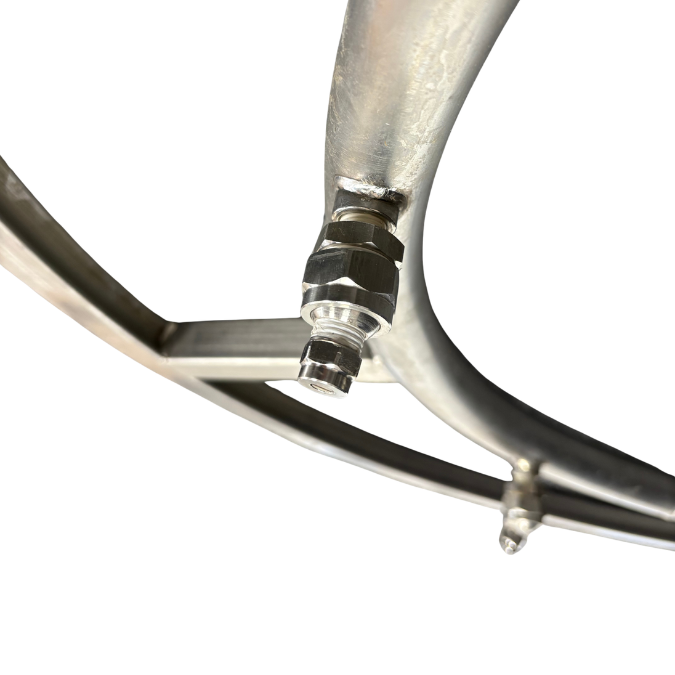

• Adjustable spray nozzles: aim each nozzle at the spots where your material actually builds up.
• Interchangeable nozzle patterns: swap nozzles for a wider or narrower spray to suit the product.
• Stainless steel and brass construction: corrosion-resistant and washdown-friendly for sanitary duty.

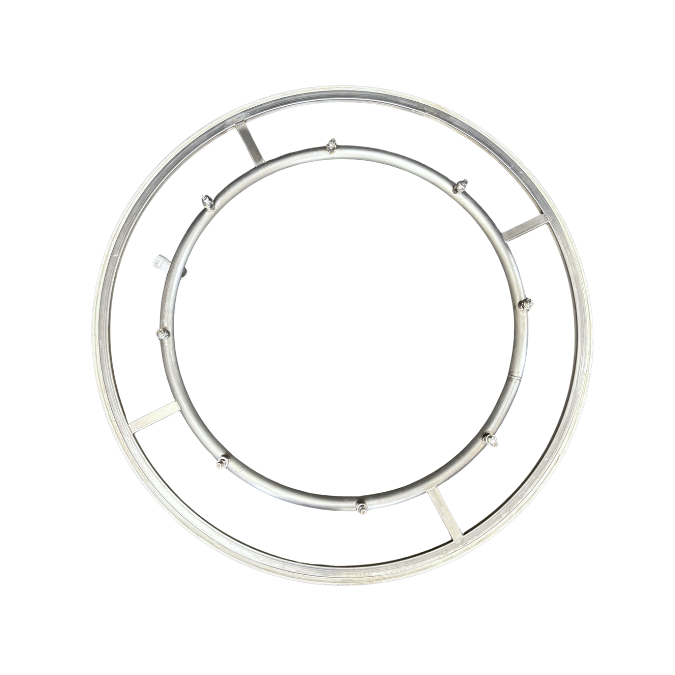

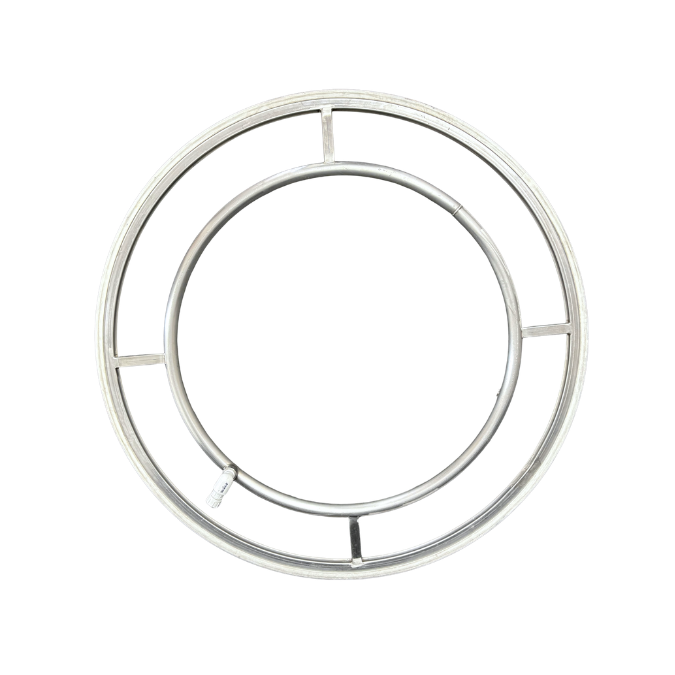

• Type: custom-fabricated circular spray ring for round vibratory separators.
• Materials: stainless steel ring and support frame with brass spray nozzles.
• Mounting: mounts to a standard screen ring; runs with or without a clamp ring.
• Nozzles: adjustable and replaceable; spray pattern selected for your application.

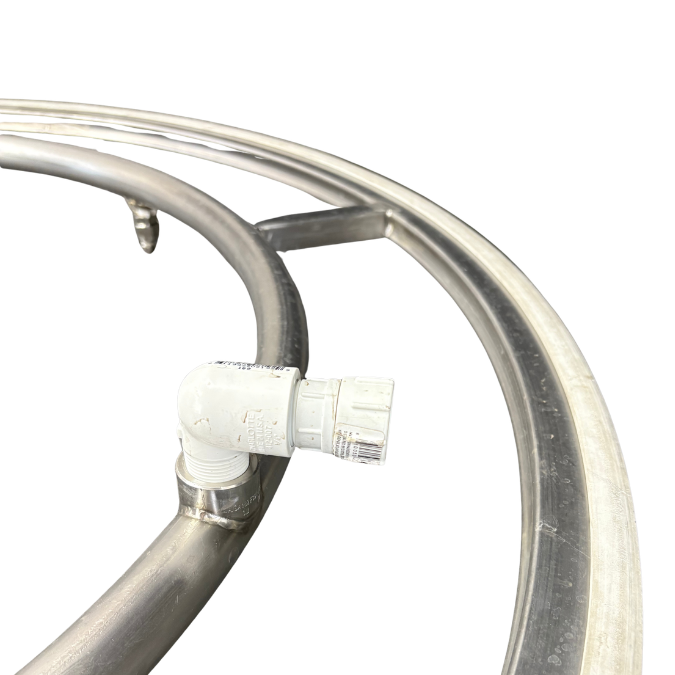

• Water Connection: standard hose fitting for connection to your plant wash-water supply.
• Sold As: one complete spray bar assembly, built to your machine size.
• Fitment: confirmed by our team before fabrication.

Q: Can I run the spray bar while the machine is vibrating?
A: Yes. Secure it with a clamp ring when spraying in motion. For a static wash-down between batches you can run it without one.

Q: Will this fit my separator?
A: Every spray bar is built to order. Send us your machine size and brand and we will match the ring to your screen deck.

Q: Can I change the spray pattern?
A: Yes. The nozzles are adjustable and use standard fittings, so they can be re-aimed or swapped for a wider or more narrow pattern.

Q: Is it suitable for sanitary applications?
A: Yes. It is built from stainless steel and brass and is intended for washdown environments where the deck is rinsed between products.

Q: Does this replace cleaning my screens?
A: No, it reduces it. Most operations use it to pre-clean the deck so there is far less material left to remove during teardown.

Q: What do I connect it to?
A: A standard plant wash-water hose connection. Contact us and we will advise on the water volume your application will need.
