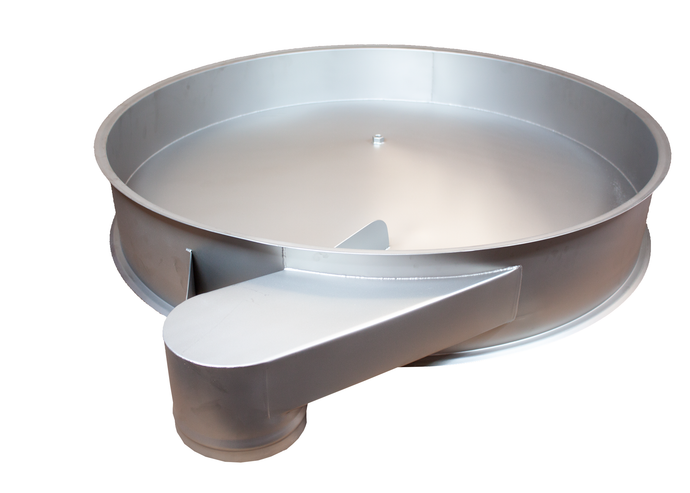

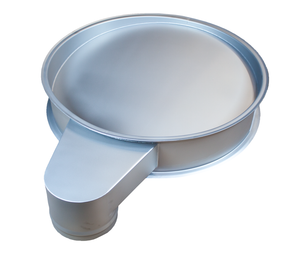

The Table Frame is the essential base component in any round vibratory screener setup. Built from 304 stainless steel with continuous welds, it features a raised internal flange that directs material toward the perimeter and creates a cavity for counterweight clearance. Available in standard and custom sizes, this durable bottom frame is engineered for efficiency, hygiene, and long-term performance.

Table Frame vs. Blank Frame or Spacing Frame

• Raised flange design improves material handling compared to flat rings
• Specifically built for screener base placement with structural and flow support
• Supports counterweight clearance and efficient product outfeed

• Standard Sizes: Available for 18" | 24" | 30" | 48" | 60" machines.
• Material Options: 304 stainless steel standard | 316 stainless steel available upon request for enhanced corrosion resistance.
• Special Sizes: Contact us for availability and pricing on 40" Table Frames.

• Lead Times: N/A.
• Shipping Options: Parcel or freight shipping available based on frame size.
• Expedited Shipping: Available upon request—contact us to prioritize your order.

• Base frame for vibratory screener systems in food, chemical, or aggregate operations
• Applications needing improved material outfeed and hygiene control
• Custom screener builds requiring multiple discharges or extended flow paths

• Efficient Material Movement: Raised internal flange directs material to the perimeter, enhancing operational efficiency.
• Durable Construction: Standard frame is 2B Finish 304 Stainless Steel with continuous welds for longevity and corrosion resistance.
• Customizable Options: Available with seamless welds for reduced microbial pockets | Second discharge outspouts | Extended outspout arms or extended outspouts for improved material handling.
• Welded Center Nut: Included as standard on 48" and 60" frames | Optional for 18", 24", and 30" frames at additional cost.

• Material: 304 stainless steel standard | 316 stainless steel optional.
• Finish: 2B Finish with continuous welds | Seamless welds available for reduced microbial pockets.
• Customization Options: Additional discharge outspouts, extended outspout arms, and extended outspouts available.

Q: What does a table frame do in a screener?
A: It serves as the foundational frame, directing material to the perimeter while allowing upper counterweights to function properly.

Q: What sizes are available?
A: Standard sizes include 18", 24", 30", 48", and 60". 40" frames and custom builds are available upon request.

Q: Is a center nut included?
A: Yes, for 48" and 60" frames. It's optional for smaller sizes.

Q: Can this frame support custom modifications?

A: Yes. You can request extra outspouts, longer outspout arms, or seamless welds.
