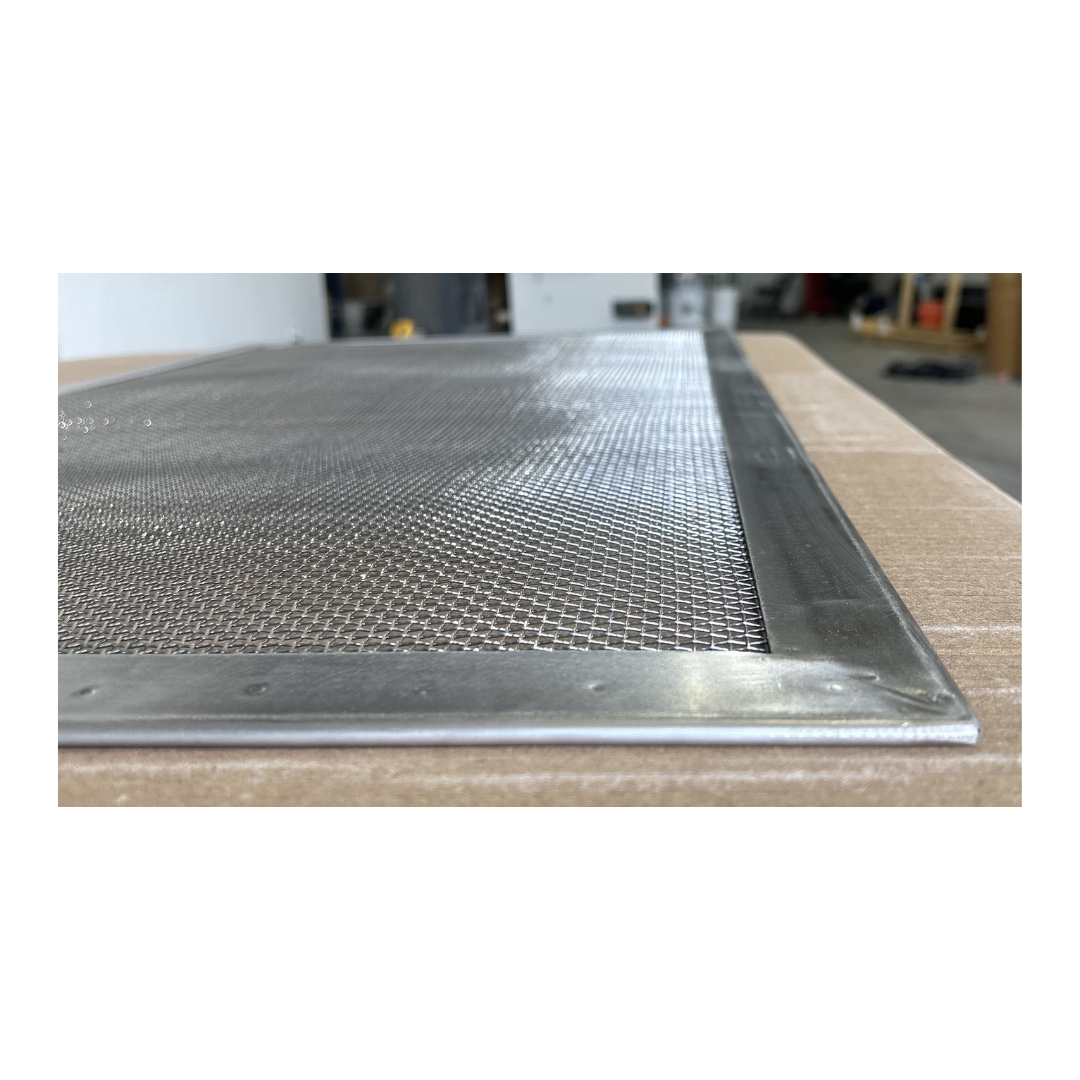

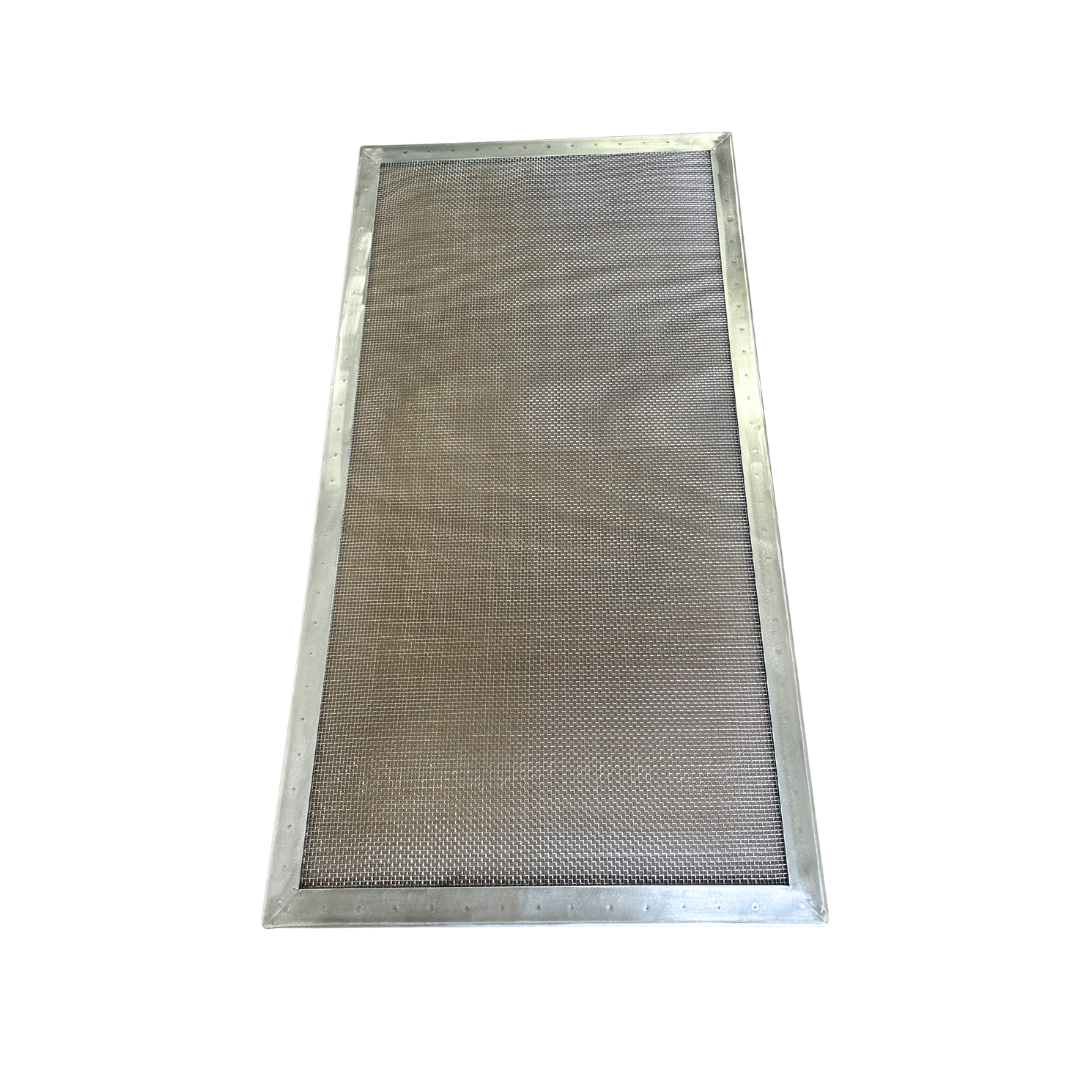

Our U-Bind Screens represent the pinnacle of high-tension sifting technology. U-Bind screens are engineered for the most demanding sifting applications. By utilizing a reinforced U-shaped edge profile, these screens provide superior grip and consistent tension across the entire sifting surface, significantly outperforming standard "hook-only" or "glue-only" designs.

- Frame Construction: Heavy-duty 1" or 1.25" stainless steel frame.

- Bonding Method: U-Bind Reinforced Encapsulation (Heat & Chemical Resistant).

- Surface Finish: Smooth, crevice-free sanitary profile (FDA Compliant).

• Specifically engineered for high-capacity industrial units
• Compatible with all standard industrial separators requiring robust structural support

Ideal Applications:

• Food Processing: Flour, sugar, spices, and dairy powders where high hygiene and mesh integrity are non-negotiable.
• Chemical & Pharma: Sifting volatile or high-purity powders that require precise particle cut-offs.
• Aggregates & Minerals: High-capacity scalping where heavy loads would typically cause standard screens to fail.

• Ready for Logistics: Our well-stocked inventory of frames allows us to minimize your downtime with fast delivery.
• Fulfillment Plan: Large-diameter frames require specialized handling; shipping is calculated separately to ensure secure arrival.

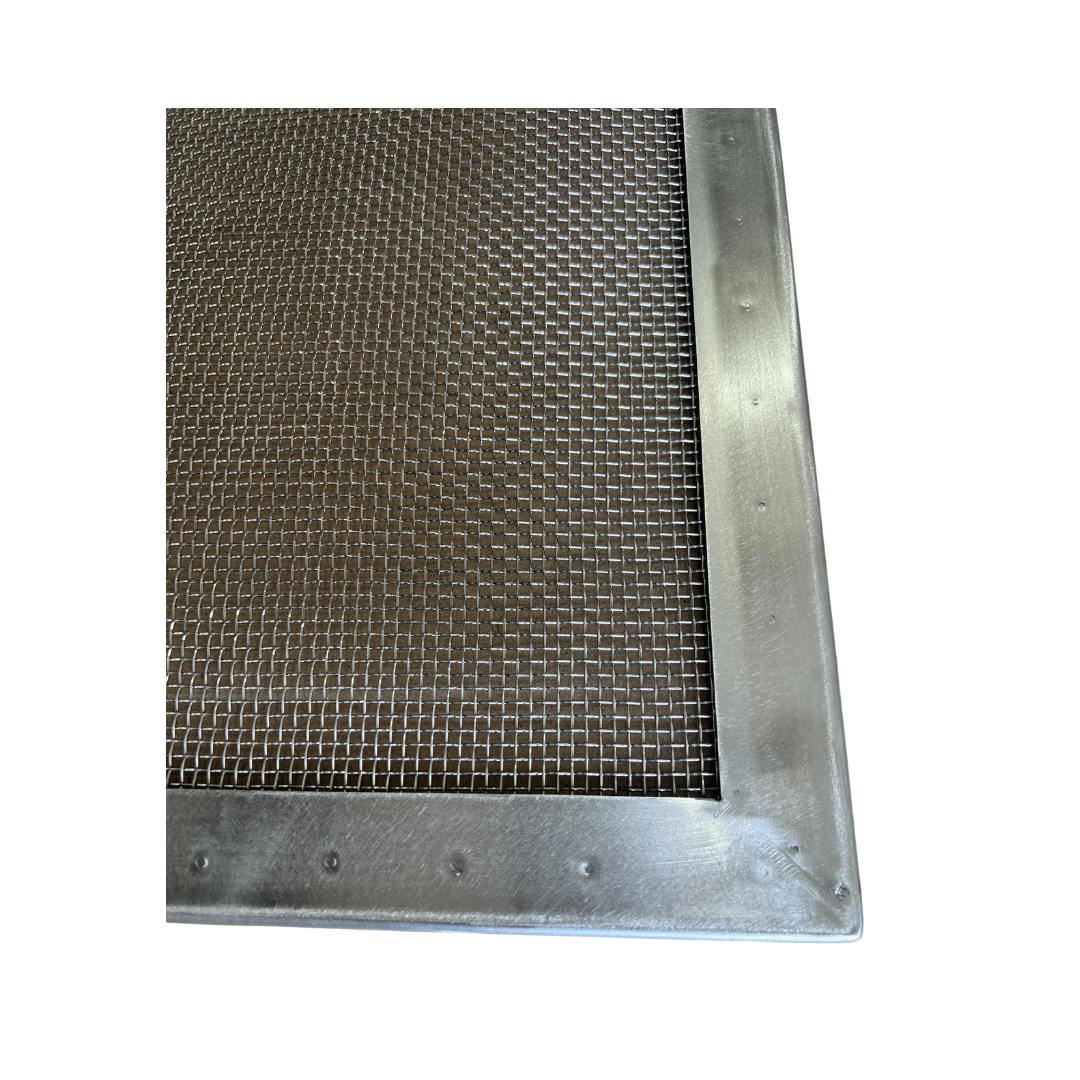

• Anti-Peel Technology: The U-Bind edge prevents mesh "pull-out," a common failure point in standard screens, extending screen service life
• Maximum Drum-Tension: Achieves and maintains higher tension levels for better material stratification and increased throughput.
• Vibration Transfer: The rigid U-profile ensures 100% of the motor’s energy is transferred to the mesh surface, eliminating "dead zones."
• Reduced Blinding: High-tension stability allows the mesh to vibrate more freely, naturally clearing near-size particles that typically cause clogging.
• Sanitary Design: The seamless encapsulation eliminates areas where material can collect, making it ideal for food-grade and pharmaceutical environments.

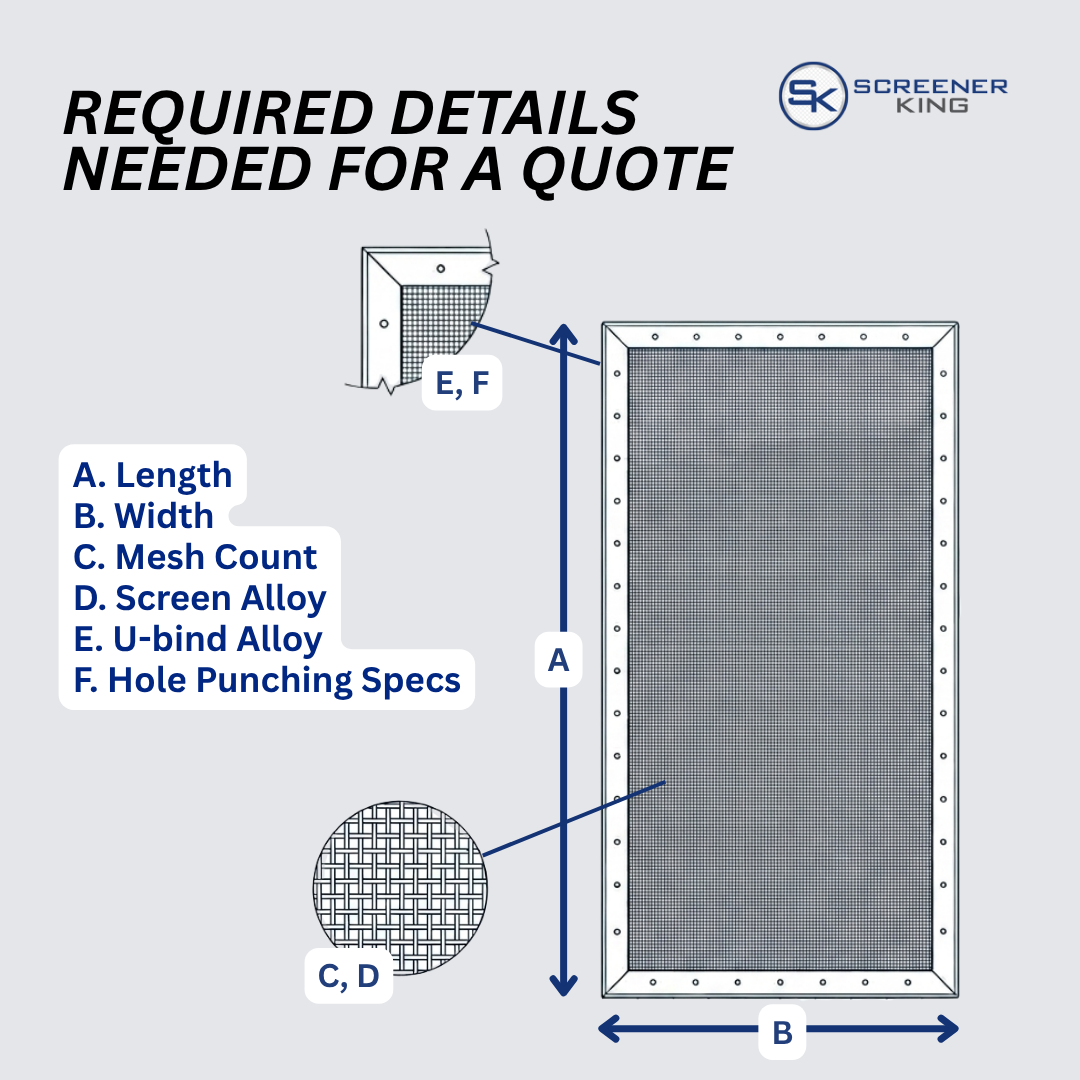

Information we need for an accurate quote:

• Length
• Width
• Mesh count
• Screen alloy
• U-bind alloy
• Any hole punching specs

Q: Why choose U-Bind over standard epoxy bonding?
A: Standard bonding only sticks to the top of the frame. U-Bind wraps around the edge, providing a mechanical grip that prevents the mesh from sagging or peeling under heavy material loads or high temperatures.

Q: Can I use U-Bind screens for food-grade applications?
A: Yes. The U-Bind encapsulation is made from FDA-compliant polymers that are smooth and easy to clean, preventing bacterial growth in the frame-to-mesh transition.
